SPALDING NBA Arena Portable System Manual page 7

Item Qty. Part No. Description
1 1 600076 Top Base
2 1 FR908622 Bottom Pole Section
3 1 FR908661 Top Pole Section
4 2 908459 Strut, Front, 62.75" Long, with Holes
5 2 908699 Strut, Rear, 62.75" Long
B1 4 265523 Bolt, Hex Head, 3/8-16 x 1" Long
B2 12 203309 Washer, Flat, 3/8 x 1 O.D.
#B4 (2)
(2) Wrenches
9/16"
3/4"

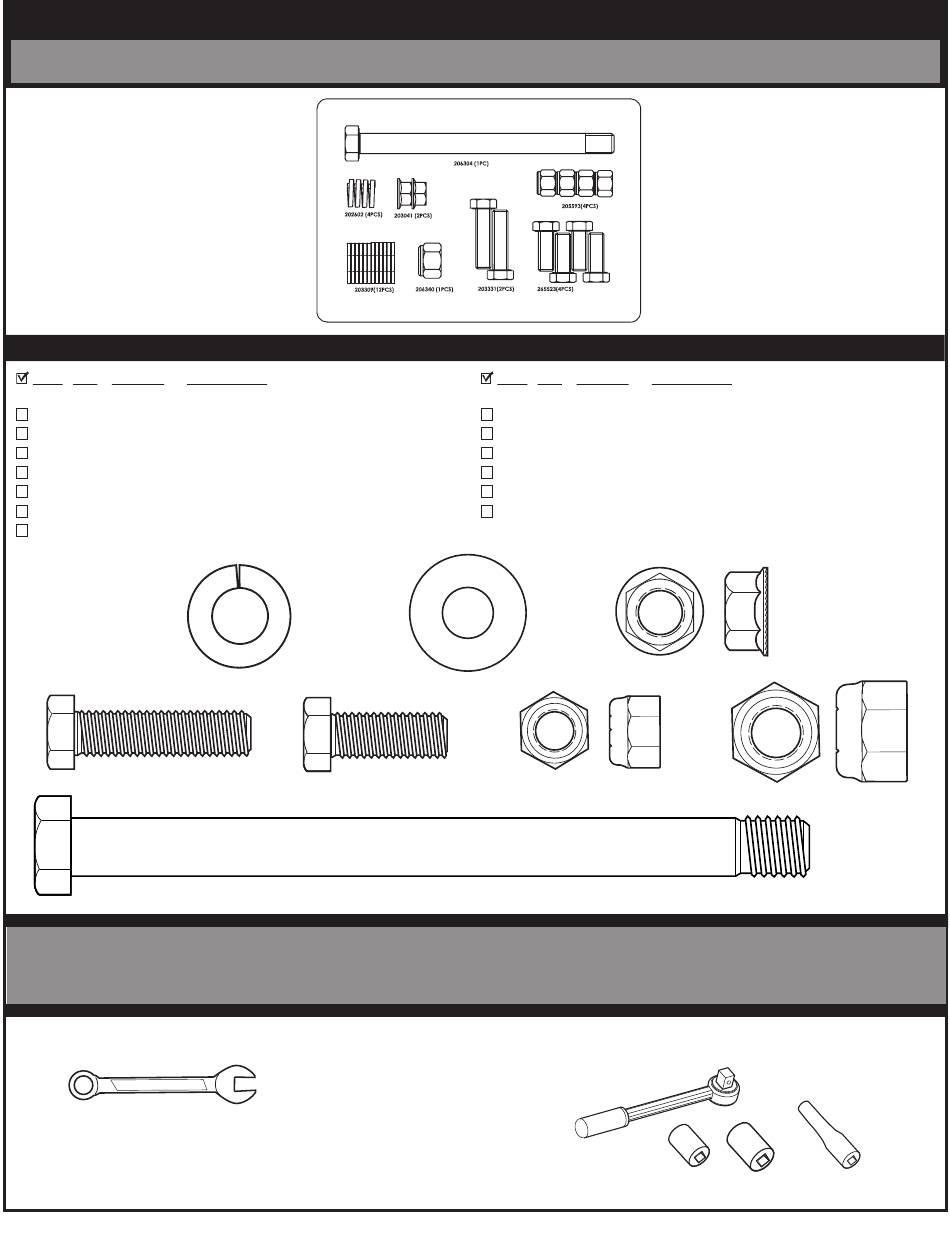

SecTIoN A: BASE AND POLE ASSEMBLY
BASe To pole HARDWARe cARD
HARDWARE LIST AND IDENTIFIER
#B7 (4)
#B1 (4)
#B8 (1)
ToolS ReQuIReD FoR THIS SecTIoN
AND/oR
BA00001
Item Qty. Part No.
B3 2 203041
B4 2 203331
B5 4 205593
B6 1 206340
B7 4 202602
B8 1 206304
#B2 (12)
#B5 (4)
(2) Socket Wrenches and Sockets
7
Description
Nut, Hex-Flange, 3/8-16
Bolt, Hex Head, 3/8-16 x 1.5" Long
Lock-nut, Nylon Insert, 3/8-16
Lock-nut, Nylon Insert, 1/2-13
Lock-washer, 0.375 I.D. x 0.675 O.D.
Bolt, Hex Head, 1/2-13 x 6-5/16" Long
#B3 (2)
#B6 (1)
9/16" 3/4" extension
