SPALDING NBA Arena Portable System Manual page 11

7.

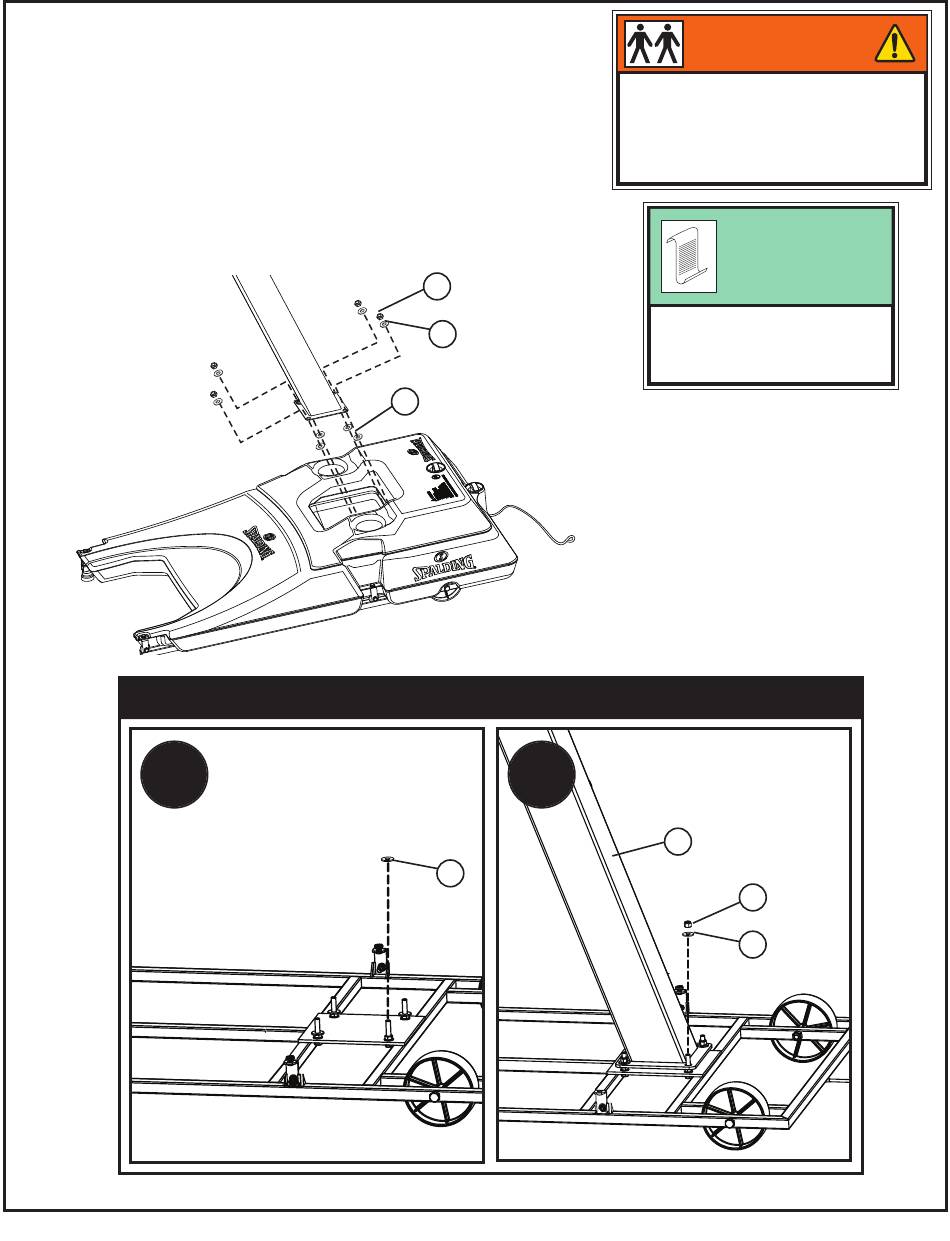

Assemble pole to base as shown:
A. Place 4 washers (B2) onto the 4 pre-installed bolts so
they rest on the nuts.
B. Rest pole on the 4 washers (B2).
Allow 4 pre-attached bolts to pass through the 4 holes in
bottom pole flange.
Secure pole assembly to plate with washers (B2) and nuts (B5)
as shown.
A
B5
B2
B2
cutaway views
B
B2
11
WARNING!
TWo cApABle ADulTS ReQuIReD
FoR THIS pRoceDuRe. FAIluRe To
FolloW THIS WARNING coulD
ReSulT IN SeRIouS INjuRy
AND/oR pRopeRTy DAMAGe.
NoTe:
The flange of the bottom
pole will rest on the nut and
washer of frame plate.
2
B5
B2
