SPALDING NBA Arena Portable System Manual page 12

8.

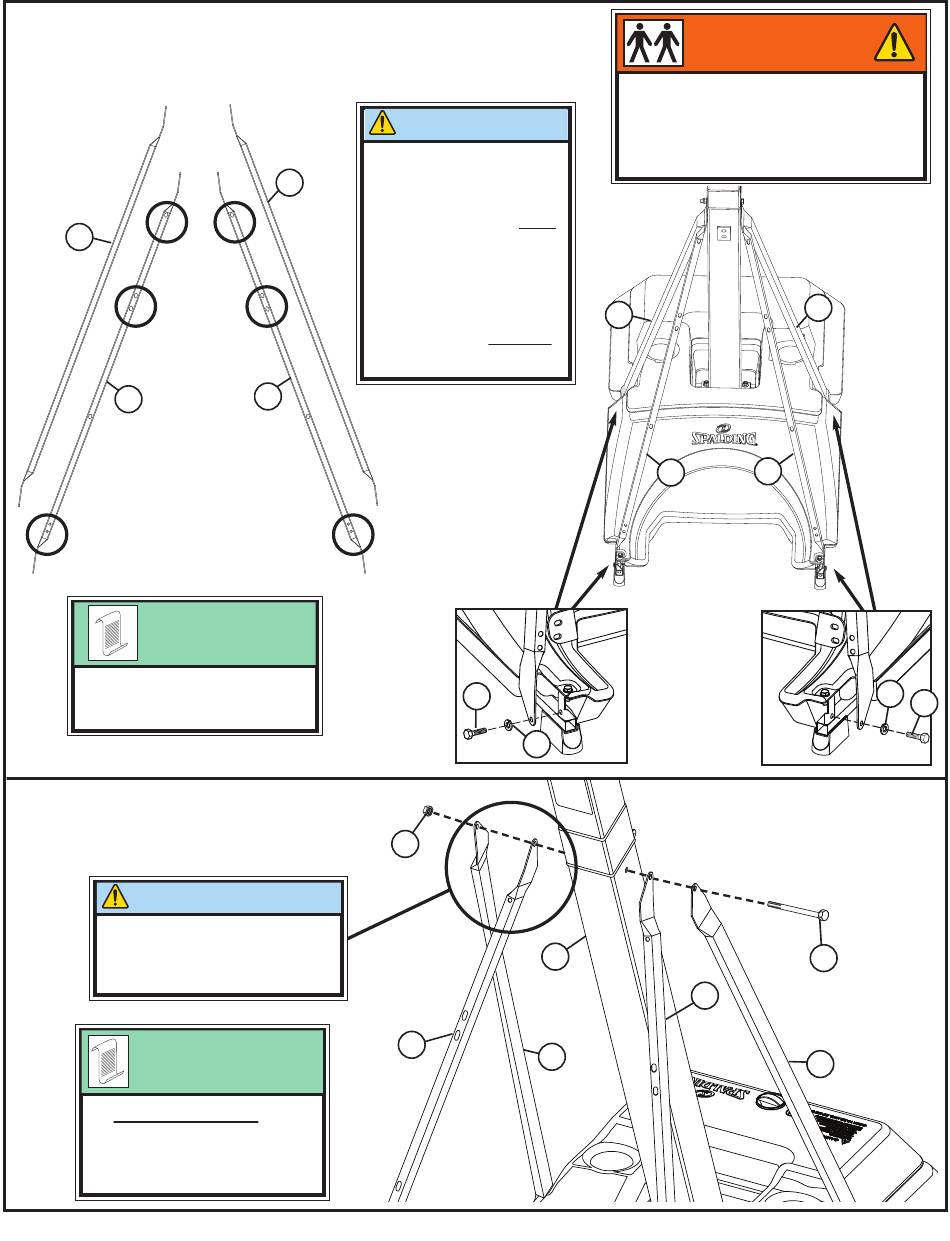

Attach struts (4 and 5) to base frame using
bolts (B1) and lock washers (B7).
5
4
NoTe:
DO NOT fully tighten
at this time.
9.
Attach struts (4 and 5) to bottom pole (2)
using bolt (B8) and nut (B6).
IMpoRTANT!
NoTe poSITIoN oF STRuTS
Front struts, with holes (4),
get placed closest to the pole.
NoTe:
Fully tighten all
hardware in step 8
and 9 at this time.
IMpoRTANT!
NoTe oRIeNTATIoN oF
STRuTS.
5
picture shown is as if
you are facing the front
of the system.
Front struts (4) have
holes in them to attach
the stadium pad. The
rear struts (5) Do NoT
have the holes.
4
B6
4
TWo cApABle ADulTS ReQuIReD
FoR THIS pRoceDuRe. FAIluRe To
FolloW THIS WARNING coulD
ReSulT IN SeRIouS INjuRy
AND/oR pRopeRTy DAMAGe.
5
B1
B7
2
5
12
