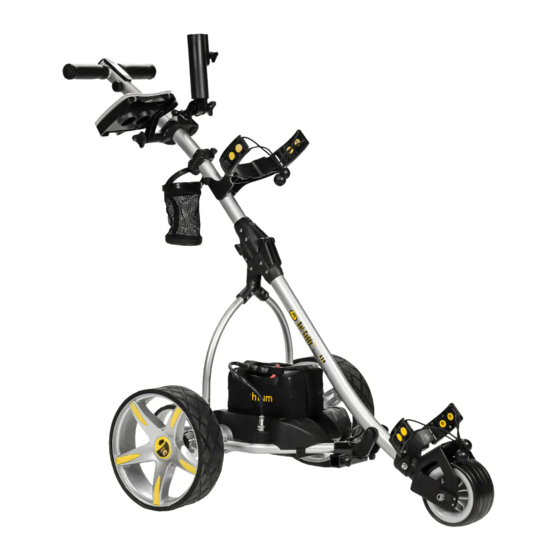

Bat-caddy X3 Series User Manual
Electric golf caddy
Hide thumbs
Also See for X3 Series:
- User manual (29 pages) ,
- User manual (12 pages) ,
- User manual (24 pages)
Related Manuals for Bat-caddy X3 Series
Summary of Contents for Bat-caddy X3 Series
- Page 1 User Manual X3 Series X3 Classic X3 Sport ATTENTION: Please follow all assembly instructions. READ the instructions carefully to understand the operating procedures BEFORE you run your caddy.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Packing List Standard Parts (X3 Classic /X3 Sport)…….....…………..…...3 Standard Parts (X3R)…………………..…………......…...3 Accessories………….....………………….......………3 Parts Glossary X3 Classic & X3 Sport…………………........………..4 X3R……………………...……....………………......…..5 Assembly Instructions X3 Classic & X3 Sport, X3R..………………........….6,7 Operating Instructions T-Handle Control Functions............……..8 X3 Classic, X3 Sport & X3R ...…............8,9 Additional Functions……………........…………..….…10 Maintenance &... -
Page 3: Packing List
NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTER- FERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT Bat-Caddy X3R FCC ID: QSQ GC827322 IC ID: 10716A... -
Page 4: Parts Glossary X3 Classic & X3 Sport
PARTS GLOSSARY X3 Classic, X3 Sport 1. T- Handle w/power button 2. Speed control dial (Rheostat) 3. Upper bag support (bungee pigtails) 4. Locking hinge 5. Battery w/Bag & Lead 6. Rear wheel (Right) 7. Rear wheel (Left) 8. Rear wheel rubber tread 9. -
Page 5: X3R
PARTS GLOSSARY 1. T-Handle w/power button 2. Upper bag support (bungee pigtails) 3. Frame locking hinge 4. Rear wheels (2) (interchangeable) incl. wheel hub & tread 5. Anti-tip wheel & Pin 6. Battery w/Bag & Lead 7. Lower bag support (bungee pigtails) 8. -
Page 6: Assembly Instructions
ASSEMBLY INSTRUCTIONS X3 Classic, X3 Sport, X3R There is a video on how to assemble your X3 Series cart on our website (www.batcaddy.com) under Product Info > Tech Tips 1. Unpack all items carefully and check inventory. Place frame structure (one piece) on soft clean ground to protect the frame from being scratched. - Page 7 ASSEMBLY INSTRUCTIONS (Continued) X3R only 4. Insert Anti-tip Wheel into frame holding bar and secure with pin. 5. Place the battery pack on the battery tray and tightly fasten the Velcro strap around the battery. Insert the 3-prong battery plug into the caddy outlet so the notch aligns properly.
-
Page 8: Operating Instructions
OPERATING INSTRUCTIONS X3 Classic - X3 Sport - X3R X3 Series T Handle Controls X3 Classic X3 Sport/X3R Faceplate Faceplate X3 Classic Instructions On the handle the top red button is your ON/OFF switch which powers up & turns off power to cart. - Page 9 X3 Sport Instructions (Continued) USB port is available for charging GPS and/or cell phones. It is located in the end cap of the upper frame above the handle control. X3R Instructions The manual controls are the same as the X3 Sport Remote Control Features and Instructions Functions: Stop: The red button in the middle of the directional arrows should be used for stopping the caddy.
-
Page 10: Additional Functions
Additional Functions Tracking Adjustment: Tracking behavior of all electric caddies is strongly dependent on equal weight distribution on the caddy and slope/topography of the golf course. Test your caddy’s tracking behavior by operating it on an even surface without the bag. If changes are necessary, you can adjust the tracking of your caddy by loosening the front wheel axle and shifting the front wheel as... -
Page 11: Battery Charging And Maintenance
• Before storing a battery for extended periods of time you must fully charge it. DO NOT store a discharged battery or as it may become unusable. Replacement batteries are available from Bat-Caddy or your authorized dealer. Recommendations • Fully charge the battery for approximately 5-9 hours before the first use. -
Page 12: Recommendations For Efficient And Safe Operation
Bat-Caddy will cover our batteries according to our warranty policy and any potential additional coverage is at our discretion”. -
Page 13: General Maintenance
• The Bat-Caddy has been designed so that the user can concentrate on playing golf, while the caddy does the work of carrying your bag. In order to keep your Bat-Caddy looking its best, wipe any mud or grass from the frame, wheels and chassis after every round using a damp cloth or paper towel. -
Page 14: Technical Specifications
TECHNICAL SPECIFICATIONS Model Name X3 Classic / Sport Standard Battery 35/36Ah SLA Dimensions SLA: 8 x 5 x 6 in (20 x 13 x 15 cm) Weight: 21/24 Lbs Average charge time: 3-6 hours Lifetime: ca. 120 - 150 charges Standard Battery Duration 27-36 holes per charge Battery Upgrade Options... -
Page 15: X3R
TECHNICAL SPECIFICATIONS Model Name Standard Battery 35/36Ah SLA Dimensions: 8 x 5 x 6 in (20 x 13 x 15 cm) Average charge time: 4-8 hours Lifetime: ca. 150 charges Standard Battery Duration 27+ holes Battery Upgrade Options 22Ah Lithium @ $400.00 Folded Dimensions (w/o wheels) Length: 31”... -
Page 16: Troubleshooting Guide
TROUBLESHOOTING GUIDE Caddy does not have power • Make sure battery is plugged correctly into cart • Make sure battery is sufficiently charged • Depress and hold power button for at least 5 seconds • Make sure battery leads are connected to proper poles (red on red & black on black) •...
