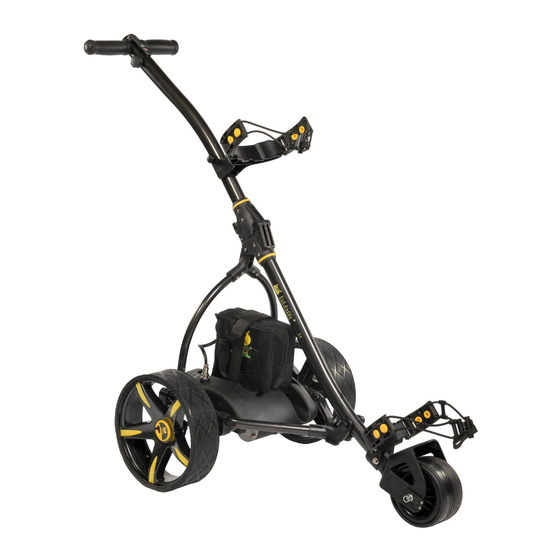

- Page 1 User Manual X3 Series (X3, X3-LCD & X3R) X3/X3-LCD ATTENTION: PLEASE FOLLOW ALL ASSEMBLY INSTRUCTIONS AND READ AND UNDERSTAND THE OPERATING INSTRUCTIONS BEFORE YOU OPERATE THE CADDY, EITHER MANUALLY OR BY REMOTE CONTROL.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Page Packing List …………..…………………………………………………..……………………………………………2 1. Standard Parts (X3 & X3-LCD)………………………………………………………………………...2 2. Standard Parts (X3R)……………………………………………………………………………………...2 3. Optional Accessories………………………………………………………………………………………2 Parts Glossary………………………………………………………….………………………………………………3 1. X3 & X3-LCD…………………………………………………………………………………………………..3 2. X3R………………………………………………………………………………………………………………..4 Assembly Instructions……………………………………….………………………………………………..…...5 1. X3 & X3-LCD…………………………………………………………………………………………………..5 2. X3R………………………………………………………………………………………………………………..7 Operating Instructions…………………………………………………………………………….......9 1. X3 & X3R……………….……………………………………………………………………………………….9 T-Handle Control Functions……..………………………………………………………………..9... -
Page 3: Packing List
PACKING LIST 1. Standard Parts (X3 & X3-LCD) 1 Caddy Frame 2 Rear Wheels 1 Battery Pack (Battery, Bag, Leads) 1 Charger 1 Tool Kit 1 User Manual, Warranty, Terms & Conditions 2. Standard Parts (X3R) ... -
Page 4: Parts Glossary
PARTS GLOSSARY 1. X3 & X3-LCD 1. T-Handle with Control Face Faceplate and Manual Speed Control 2. Upper Bag Support 3. Upper Bag Support Bungee Pigtails 4. Battery with Leads and Carrying Case (12V 26Ah or 34/35Ah Sealed Lead Acid Deep Cycle) 5. -
Page 5: X3R
2. X3R 1. T-Handle with Control Face Faceplate and Manual Speed Control 2. Upper Bag Support 3. Upper Bag Support Bungee Pigtails 4. Battery with Leads and Carrying Case a) (12V 34/35Ah Sealed Lead Acid Deep Cycle) 5. 2 Identical Rear Wheels 6. -
Page 6: Assembly Instructions
ASSEMBLY INSTRUCTIONS 1. X3/X3-LCD 1. Unpack all items carefully and check inventory. 2. Place frame structure (one piece) on soft and clean ground to protect frame from being scratched. Erect frame by unfolding and connecting the main frame tube together at the joint and locking the Y-shape lower support structure to the main frame with the frame lock mechanism. - Page 7 axle extensions to be inserted all the way into the wheel so the axle sprocket locks into the hub. If not locked in, the wheel will not be connected to the clutch and will not be propelled or come off! Test the lock by trying to pull the wheel out. Attention: Make sure that the right wheel (marked) is attached to the right side and the left wheel (marked) to the left side (seen from behind in driving direction), as the wheels have built in clutches.
-
Page 8: X3R
2. X3R 1. Unpack all items carefully and check parts inventory. 2. Place frame structure (one piece) on soft and clean ground to protect frame from being scratched. Attach wheels to axles by pushing wheel locking button on the wheel hub and inserting the axle extension into the wheel. Make sure to keep the locking button on the wheel hub pushed in during this process, in order to enable the axle extensions to be inserted all the way into the wheel. - Page 9 4. Place the battery pack on the battery tray and fasten the Velcro strap around the battery tightly. Insert the 3-prong battery plug into the caddy outlet so the notch aligns properly. Note: Before connecting, make sure that the Rheostat Controller is in OFF (0) position, and the remote control is stored securely! 5.
-
Page 10: Operating Instructions
Now you are ready to learn and understand the functions of the manual and remote controls. OPERATING INSTRUCTIONS 1. X3 & X3R T-Handle Control Functions The ON/OFF button controls the caddy’s main power supply. Once you have connected the battery, make sure that the rheostat speed control is in OFF position (all the way counterclockwise). -
Page 11: Additional Functions
When your press 20M, the trolley will run 20 Meters/Yards and stop by itself. When your press 30M, the trolley will run 30 Meters/Yards and stop by itself. Rheostat Control: Speed can be seamlessly controlled manually via the round rheostat control on the right side of the handle. - Page 12 Installation of Seat Attach seat stand to seat bottom using the four small screws. Attention: Attach in such manner that the seat is parallel to the driving direction of the caddy, with the opening facing the outside when you slide it into the holding bar. Slide seat stand into holding bar as shown.
-
Page 13: Remote Control Instructions (X3R Only)
Remote Control Instructions (X3R Only) Functions: A. Brake: The red button in the middle of the directional arrows should be used for braking the caddy. B. Timer: 10, 20, 30 yards, Stop (same as manual control timer function) C. Backward Arrow: Pressing the back arrow will set the caddy in backward motion. Increase backward speed by pushing multiple times. -
Page 14: X3-Lcd
It is strongly recommended to operate the caddy at a maximum range not exceeding 50 yards in order to prevent the loss of control of the unit! 2. X3-LCD Display Instructions Short Distance and Total Distance: Short Distance measures the distance traveled during your current round, allowing you to measure the distance of your drives, how far past a distance marker your ball is, etc. -
Page 15: General Instructions
Please note: distance measurements will only be correct if you travel in a straight line to your ball. The ON/OFF button; this button controls the trolley’s power. Press and hold it for 2-5 seconds for the caddy to turn ON/OFF. The LCD Display will light up and show the battery charge level, speed indicator, and short and total distance measurement. -
Page 16: Maintenance & Additional Instructions
Before storing a battery for extended periods of time you must fully charge it. DO NOT store a discharged battery or else it might become unusable. Replacement batteries are available from your authorized dealer or directly from Bat-Caddy. Recommendations Fully charge the battery for ca. -
Page 17: Testing Your Caddy
Never keep your battery connected to the grid during prolonged power outages. It might be irreversibly damaged. Do not fully discharge the battery by “overplaying” it. It is recommended to recharge the battery after every 18 holes. 2. Testing Your Caddy Test Environment First, make sure that you perform your first test of the caddy in a wide and safe area, free of obstructions or valuables, such as people, parked automobiles, flowing traffic,... -
Page 18: Recommendations For Efficient And Safe Operation
The steps below will ensure that you get a prolonged and reliable life out of your Bat-Caddy. The Caddy has been designed so that the user can concentrate on playing golf, while the caddy does the work of carrying your bag. In order to keep your Bat-Caddy... -
Page 19: Electronic Systems
(not on concrete floor) and don’t leave it on the charger. All of these recommendations and common sense will help keep your Bat-Caddy in top condition and ensure that it remains your reliable partner, both on and off the links. - Page 20 Therefore, it is sealed to reduce the risk of moisture entering and impacting the electronic system. Breaking this seal increases the risk of damaging the electronics and decreasing the reliability of your caddy. DO NOT attempt to open the controller case.
-
Page 21: Technical Specifications
TECHNICAL SPECIFICATIONS 1. X3 Model Name Standard Battery 26Ah SLA Dimensions: 8 x 5 x 6 in (20 x 13 x 15 cm) Average charge time: 4-8 hours Lifetime: ca. 150+ charges Standard Battery Duration 27-36 holes Battery Upgrade Options 34/35Ah @ $25.00... -
Page 22: X3-Lcd
"Special Offers" Introduced (year) 2009 Warranty 1 Year on Parts and Labor 1 Year on Battery X3-LCD Model Name X3-LCD Standard Battery 26Ah SLA Dimensions: 8 x 5 x 6 in (20 x 13 x 15 cm) Average charge time: 4-8 hours Lifetime: ca. -
Page 23: X3R
Battery charge indicator Speed Control Distance Measurement Distance/Range 15 mi (25 km)/27-36 holes Climbing Ability 30 degrees Off-Power Free-Wheeling Mode Maximum Load 66 lbs (30 kg) Charger Input: 110-240V AC Output: 12V/2A-3A Trickle Charger Motor Power: 1 x 200 Watt (200 Watt) 12V DC Electric Front Wheels Airless, rubberized tread... - Page 24 Lifetime: ca. 150+ charges Standard Battery Duration 27+ holes Battery Upgrade Options Folded Dimensions Length: 35 in (89 cm) Width: 24 in (61 cm) Height: 12 in (30.5 cm) Unfolded Dimensions Length: 42 in (107 cm) Width: 24 in (61 cm) Height: 37 in (94 cm) Weight Caddy 35 lbs (16 kg)
-
Page 25: Troubleshooting Guide
Carrying Bag Seat Optional Accessories Rain Cover Sand Dispenser Club Cleaner see "Special Offers" Introduced (year) 2006 Warranty 1 Year on Parts and Labor 1 Year on Battery TROUBLESHOOTING GUIDE Symptom Action Check fuse in the battery case Check all wiring connections and plugs Caddy does not have power Check battery charge... -
Page 26: Frequently Asked Questions (Faqs)
On Average a Bat-Caddy pays back for itself within one season considering a $15.00-$20.00 rental cart fee. The caddy basically gives you the experience to play like a Tour Professional, i.e. - Page 27 "imitators" on the market who have tried to copy our caddies as well as Marketing strategy, but they are usually years behind and ship out of a "garage". Bat-Caddy is a well established company since 2004 and considered the best value in the market with the best customer service by our nationwide reputable...
-
Page 28: Bat-Caddy Questions
How long does the battery last? Bat-Caddy: Our batteries are rated to last on average for at least 27 holes or 6-7 hours of play per charge (anyone advertising longer operational functionality on the same ratings batteries is very likely overstating the continuous battery performance). - Page 29 Bat-Caddy: Please find download assembly instructions on our website at www.batcaddy.com The golf season is over and I am ready to store my Bat-Caddy? What is your advice? Bat-Caddy: We recommend to clean the caddy using a damp cloth or brush for the wheel treads.
