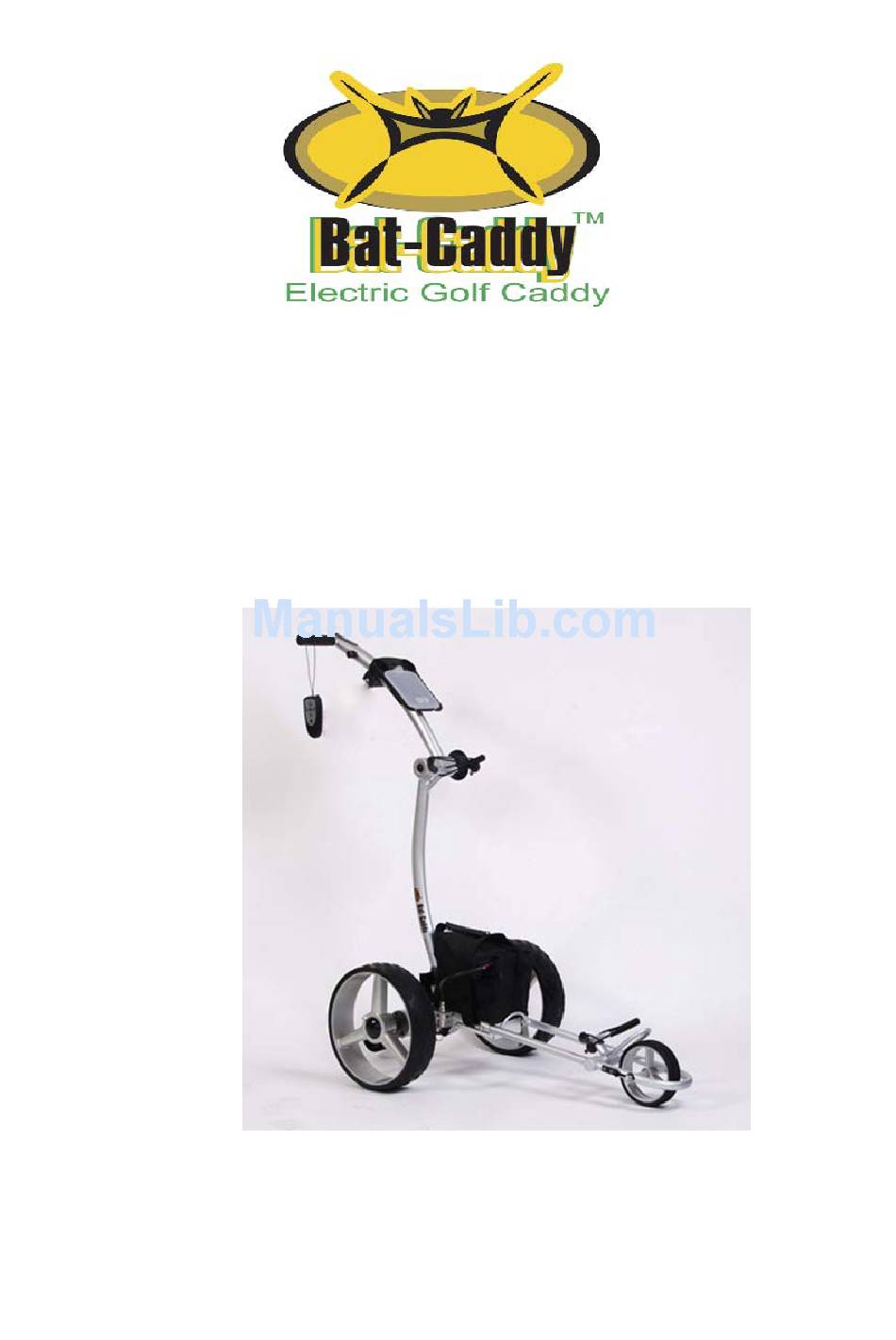

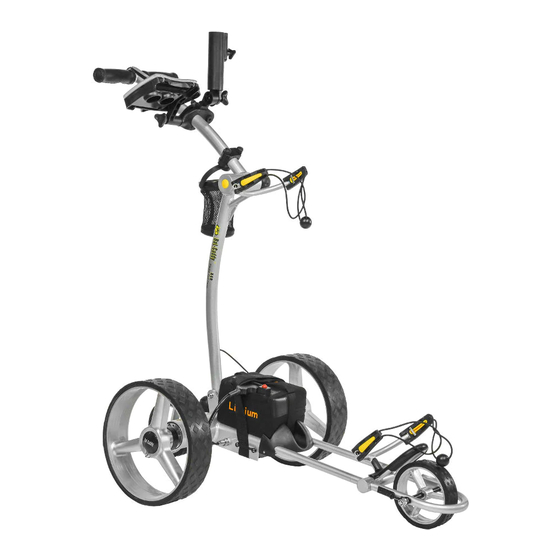

- Page 1 Bat-Caddy X4R™ Remote Controlled Electric Golf Caddy User Manual WARNING: PLEASE FOLLOW ALL ASSEMBLY INSTRUCTIONS AND READ AND UNDERSTAND THE OPERATING INSTRUCTIONS BEFORE YOU OPERATE THE CADDY, EITHER MANUALLY OR BY REMOTE CONTROL. Page 1 of 16...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Page 1. Packing List & Parts Glossary 2. Assembly Instructions 3. Operating Instructions 4. General Maintenance & Other Instructions 5. Technical Specifications 6. Frequently Asked Questions 1. Packing List Standard Parts 1 x Caddy Frame 1 x Anti-Tip Wheel &... - Page 3 1. Manual Rheostat Speed Control 8. Dual Motors 2. Upper Bag Support 9. Lower Bag Support & Strap 3. Bag Support Strap 10. Front Wheel 4. Battery 11. Upper Frame Locking Knob 5. Rear Wheel 12. Handle IC Controller 6. Wheel Hubcap 13.
-
Page 4: Assembly Instructions
2. Assembly Instructions Unpack all items carefully and check parts Place frame structure (one piece) on soft and clean ground to protect frame from being scratched. Attach wheels to axles by pushing wheel locking button on the outside of the wheel and inserting the axle extension into the wheel. - Page 5 3. Place battery pack on battery tray and fasten Velcro straps around battery tightly. Insert battery plug into caddy outlet. Note: BEFORE CONNECTING make sure that caddy power is OFF, Rheostat Speed Control on handle is in OFF position and the remote control is stored securely!!! 4.
-
Page 6: Operating Instructions
3. Operating Instructions 3.1. Handle Control Functions – Design A 1. The rheostat speed button on the right side of the handle lets you choose your preferred speed seamlessly. Dial forward to increase speed. Dial backwards to reduce speed. 2. Press ON/OFF power button for about 2 seconds to turn caddy on or off 3. - Page 7 1,Timer: Press 'timer' one time ,the trolley will move 10m/y and stop Press 'timer' two times, the trolley will move 20m/y and stop Press 'timer' three times, the trolley will move 30m/y and stop (Note: while the trolley moving, you can press the 'timer' button again and the preset distance will be Increased by an additional 10m/y) 2 ON/OFF and GO/STOP Function: A.
-
Page 8: Additional Functions
3.3.2. Important Notes – PLEASE READ CAREFULLY Change the remote control batteries once the indicator LED gets weak The remote control uses two 1.5V AAA batteries available in any supermarket, drug store or electronics store It is recommended to keep a set of extra batteries ready as replacement ... -
Page 9: Electronic Systems
3.4.3. Tracking Adjustment Tracking behavior of all electric caddies is strongly dependent on equal weight distribution and slope. Test your caddy’s tracking by operating it on an even surface without the bag. If changes are necessary you can adjust the tracking of your caddy by loosening the front wheel axle and the adjustment bar on the right side of the front wheel and shifting the axle accordingly. -
Page 10: General Maintenance & Other Instructions
DO NOT store an empty battery or else it might become unusable. Replacement batteries are available from your authorized Bat-Caddy dealer or directly from Bat-Caddy. Note: Life of sealed lead acid and any other batteries is dependent on a variety of factors, other than purely the number of charges, including but not limited to frequency between charges, duration of charge, level of drainage, idle time, storage conditions and duration and overall shelf time. -
Page 11: Recommendations For Efficient And Safe Operation
4.2. Test Caddy a. Testing Environment & Conditions First, make sure that you perform your first test of the caddy in a wide and safe area possibly on even surface, free of obstructions or valuables, such as people, parked automobiles, flowing traffic, furniture or water bodies (rivers, swimming pools etc.), steep hills, cliffs or similar hazards. -
Page 12: General Maintenance
1) The Caddy has been designed so that the user can concentrate on playing golf, while the caddy does the work of carrying your bag. In order to keep your Bat-Caddy looking at its best, we advise that you wipe any mud or grass from the frame, wheels and chassis after every round with a damp cloth or paper towel. -
Page 13: Technical Specifications
Specifications Bat-CaddyX4R Technical Feature Specification Remote Control (range up to 80-120 Yards) plus Manual Rheostat Control Function: Forward, Reverse, Left & Right Speed Control Cruise Control Timed Advance Function (10, 20, 30 m/y) Power: 2 x 200 Watt (400 Watt) ... - Page 14 Gross Weight: 55 Lbs (25 kg) Note: Bat-Caddy reserves the right to modify/upgrade any components during a model year. Hence illustrations on our website, brochures and manuals may vary from the actual product shipped. However, Bat-Caddy guarantees that specifications and functionality will be always equal or better from the advertised product.
-
Page 15: Frequently Asked Questions
How long does the battery last? Bat-Caddy: Our batteries are rated to last on average for 27 holes or 6-7 hours of play per charge. Depending on the weight and topography of your course they might last longer or shorter. However, we recommend recharging the battery after every 18 holes, as complete drainage reduces the life time of a battery significantly. - Page 16 The trolley stops by itself sometimes? Bat-Caddy: Please check the battery charge level. Also the controller box has a shut-down function, if the battery is too low or the controller is overheating or the caddy does not receive a signal for 30-40 seconds.
