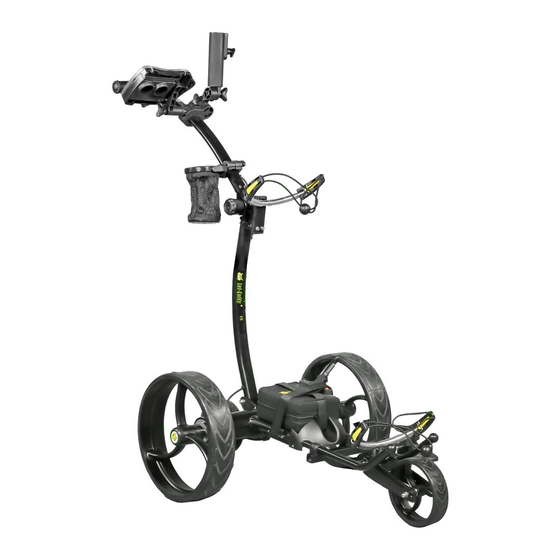

- Page 1 X8 Series User Manual X8 Pro ATTENTION: Please follow all assembly instructions. READ the instructions carefully to understand the operating procedures BEFORE you operate your caddy.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Packing List ..………………….......…......……3 Parts Glossary ..................………..4 Assembly Instructions .....………………........5,6 Operating Instructions ..............……..7 Remote Control Operation (X8R) Remote synchronization................8 Additional Instructions Free wheeling, Tracking, USB,................9 Testing Your Caddy Efficient & Safe Operation General Maintenance.................…...…10 Trouble Shooting Guide ...................11 Technical Specifications................12... -
Page 3: Packing List
NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT Bat-Caddy X8R FCC ID: QSQ-REMOTE IC ID: 10716A-Remote... -
Page 4: Parts Glossary
PARTS GLOSSARY X8Pro & X8R 1. USB Port 2. Manual Rheostat Speed Control 3. Power Button & Control 4. Upper Bag Support 5. Bag Support Strap 6. Upper Frame Locking Knob 7. Battery 8. Rear wheel 9. Rear Wheel Quick Release Catch 10. -
Page 5: Assembly Instructions
ASSEMBLY INSTRUCTIONS X8Pro & X8R 1. Unpack all items carefully and check inventory. Place frame structure (one piece) on soft clean ground to protect the frame from being scratched. 2. Attach rear wheels to axles by pushing the wheel locking button (Pic-1) on the outside of the wheel and inserting the axle extension in to the wheel. - Page 6 ASSEMBLY INSTRUCTIONS (Continued) 4. Place the battery pack on the battery tray. Insert the 3-prong battery plug into the caddy outlet so the notch aligns properly and attach T-connector onto the battery. Then attach Velcro strap. Tightly fasten the Velcro strap underneath the battery tray and around the battery.
-
Page 7: Operating Instructions
OPERATING INSTRUCTIONS X8Pro & X8R X8 Series X8 Series Faceplate T Handle Control Timer On/Off & Start/Stop Battery Charge Pic-1 1. The rheostat speed dial on the right side of the handle is your manual speed control. It allows you to choose your preferred speed seamlessly. -
Page 8: Remote Control Operation (X8R)
SYNCHRONIZING YOUR REMOTE: If your Bat-Caddy will not respond to your Remote-Control it may need to be resynchronized. A. Power off your Bat-Caddy for 5 seconds. B. Turn on your Remote-Control C. -
Page 9: Additional Instructions Free Wheeling, Tracking, Usb
Additional Functions Freewheeling Mode: The caddy can be easily operated without power. In order to activate Release the freewheeling mode, turn main power OFF. Then disengage rear wheels from motor/gearbox and sliding the wheel from the inner grove (Pic-1)on the Pic-2 Pic-1 axle to the outer grove (Pic-2). -
Page 10: Testing Your Caddy
• The Bat-Caddy has been designed so that the user can concentrate on playing golf, while the caddy does the work of carrying your bag. In order to keep your Bat-Caddy looking its best, wipe any mud or grass from the frame, wheels and chassis after every round using a damp cloth or paper towel. -
Page 11: Trouble Shooting Guide
Call/text us at (888) 229-5218 or email us at support@batcaddy.com Note: Bat-Caddy reserves the right to modify/upgrade any components during a model year, so illustrations on our website, brochures and manuals may slightly vary from the actual product shipped. However, Bat-Caddy guarantees that specifications and functionality will be always equal to or better from the advertised product. -
Page 12: Technical Specifications
Series 8 Features X8 Pro No-Lock Euro-Wove Frame ✓ ✓ Dual 200w Quiet Motor ✓ ✓ Simple Handle Operation ✓ ✓ Speed-Recall Cruise Control ✓ ✓ Fully Directional Remote Control ✓ Upgradeable to Remote Control ✓ Battery Level Indicator ✓ ✓...
