User Manual
Bat-Caddy X4 & X4R
ATTENTION: PLEASE FOLLOW ALL ASSEMBLY INSTRUCTIONS AND
READ AND UNDERSTAND THE OPERATING INSTRUCTIONS BEFORE
YOU OPERATE THE CADDY, EITHER MANUALLY OR BY REMOTE
CONTROL.

Advertisement

loading
Need help?

Need help?

Do you have a question about the X4 and is the answer not in the manual?

Questions and answers

Summary of Contents for Bat-caddy X4

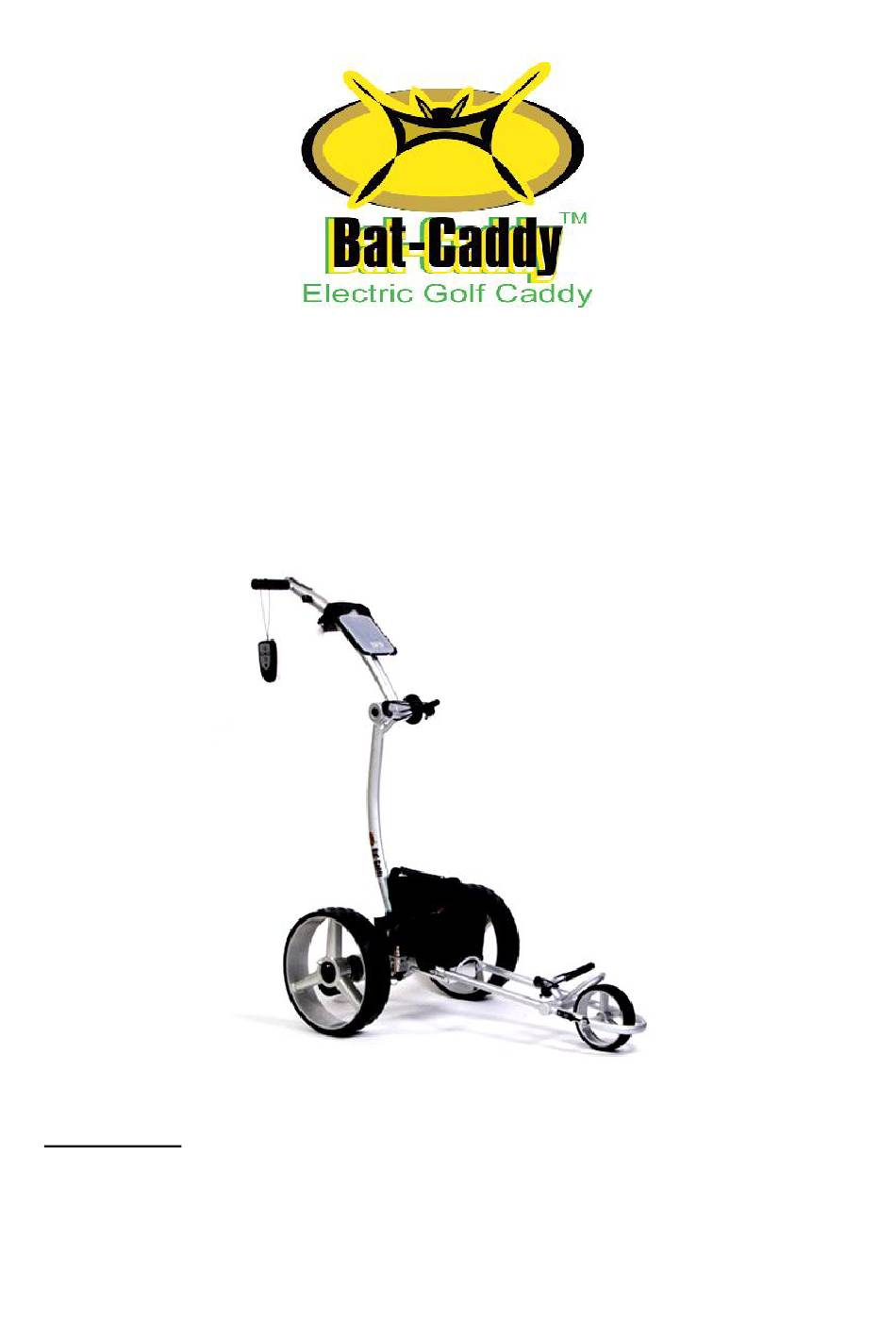

  • Page 1 User Manual Bat-Caddy X4 & X4R ATTENTION: PLEASE FOLLOW ALL ASSEMBLY INSTRUCTIONS AND READ AND UNDERSTAND THE OPERATING INSTRUCTIONS BEFORE YOU OPERATE THE CADDY, EITHER MANUALLY OR BY REMOTE CONTROL.
  • Page 2: Table Of Contents

    (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT Bat-Caddy X4R FCC ID: QSQ-REMOTE IC ID: 10716A-Remote...
  • Page 3: Packing List

     1 Battery Pack (Battery, Bag, Leads)  1 Charger  1 Tool Kit  1 Remote Control (needs 2 AAA Batteries)  1 User Manual, Warranty, Terms & Conditions 3. Optional Accessories (X4 & X4R)  1 Scorecard Holder  1 Cup Holder ...
  • Page 4: Parts Glossary

    PARTS GLOSSARY 1. Manual Rheostat Speed Control 2. Upper Bag Support 3. Bag Support Strap 4. Battery 5. Rear Wheel 6. Wheel Hubcap 7. Rear Wheel Quick Release Catch 8. Dual Motors 9. Lower Bag Support & Strap 10. Front Wheel 11.
  • Page 5: Assembly Instructions

    Test the lock by trying to pull the wheel out. Note: the X4 caddy has a right (R) and a left (L) seen from behind in driving direction.
  • Page 6 4. Place battery pack on battery tray and fasten both Velcro straps around battery and frame tightly. Insert 3 prong battery plug into caddy outlet. (Note: Do not screw plug nut into caddy to prevent damage in case of a tip-over). Note: BEFORE CONNECTING make sure that caddy power is OFF, Rheostat Speed Control on handle is in OFF position and the remote control is stored securely! 5.
  • Page 7: Operating Instructions

    OPERATING INSTRUCTIONS 1. Handle Control Functions – Design A 1. The rheostat speed button on the right side of the handle lets you choose your preferred speed seamlessly. Dial forward to increase speed. Dial backwards to reduce speed. 2. Press ON/OFF power button for about 2 seconds to turn caddy on or off 3.
  • Page 8  Timer: Press 'timer' one time, the trolley will move 10m/y and stop. Press 'timer' two times, the trolley will move 20m/y and stop. Press 'timer' three times, the trolley will move 30m/y and stop. (Note: while the trolley moving, you can press the 'timer' button again and the preset distance will be increased by an additional 10m/y) ...
  • Page 9 Important Notes – PLEASE READ CAREFULLY  Change the remote control batteries once the indicator LED gets weak  The remote control uses two 1.5V AAA batteries available in any supermarket, drug store or hardware or electronics store  It is recommended to keep a set of extra batteries ready as replacement ...
  • Page 10 4. Additional Functions  Freewheeling Mode: The caddy can be easily operated without power. In order to activate the freewheeling mode, turn main power Off. The caddy now can be pushed manually without resistance. The freewheeling mode on some models can also be activated by pulling out both rear wheels by 1/2 inch (1cm) and relocking them back into the second axle groove.
  • Page 11: Maintenance & Additional Instructions

    you can press the main OFF/ON switch on the handle. The battery charge indicator lights will show you the charge level of the battery from green (fully charged) to red (discharged).  Important: The electronics controller box contains no user serviceable parts. Therefore, it is sealed to reduce the risk of moisture entering and impacting the electronic system.
  • Page 12 DO NOT store an empty battery or else it might become unusable. Replacement batteries are available from your authorized Bat-Caddy dealer or directly from Bat-Caddy. Note: Life of sealed lead acid and any other batteries is dependent on a variety of factors, other than purely the number of charges, including but not limited to frequency between charges, duration of charge, level of drainage, idle time, storage conditions and duration and overall shelf time.
  • Page 13 Forward/Backward arrows on the remote control starts the caddy in either direction. Further pushes will increase the speed. In order to stop the caddy press the round red STOP button in the center of the remote!! To slow down the caddy press the Reverse Arrow button.
  • Page 14 1) The Caddy has been designed so that the user can concentrate on playing golf, while the caddy does the work of carrying your bag. In order to keep your Bat-Caddy looking at its best, we advise that you wipe any mud or grass from the frame, wheels and chassis after every round with a damp cloth or paper towel.
  • Page 15: Technical Specifications

    TECHNICAL SPECIFICATIONS Standard Battery 22Ah SLA Dimensions: 7.5 x 6.5 x 3 in (19 x 17 x 8 cm) Average charge time: 4-8 hours Lifetime: ca. 150 charges Standard Battery Duration 27+ holes Battery Upgrade Options 26Ah @ $25.00 (34Ah @ $50.00) Folded Dimensions Length: 33 in (84 cm) Width: 20 in (51 cm)
  • Page 16 Drive Train Rear Wheel Drive Gear ratio (17:1)  Handle Height Adjustment Materials Aluminum/SS and ABS Available Colors Oxidized Silver Available Accessories Scorecard Holder Cup Holder Umbrella Holder Carrying Bag Seat Optional Accessories Rain Cover Sand Dispenser see "Special Offers" for seasonal promotions Introduced (year) 2012 Certifications...
  • Page 17 Dimensions: 32 x 24 x 12 in (83 x 62 x 31 cm) Gross Weight: 55 lbs (25 kg) Note: Bat-Caddy reserves the right to modify/upgrade any components during a model year. Hence illustrations on our website, brochures and manuals may vary from the actual product shipped. However,...
  • Page 18: Frequently Asked Questions

    On Average a Bat-Caddy pays back for itself within one season considering a $15.00-$20.00 rental cart fee. The caddy basically gives you the experience to play like a Tour Professional, i.e.
  • Page 19 "imitators" on the market who have tried to copy our caddies as well as Marketing strategy, but they are usually years behind and ship out of a "garage". Bat-Caddy is a well established company since 2004 and considered the best value in the market with the best customer service by our nationwide reputable dealers/retailers.
  • Page 20 How long does the battery last? Bat-Caddy: Our batteries are rated to last on average for at least 27 holes or 6-7 hours of play per charge (anyone advertising longer operational functionality on the same ratings batteries is very likely overstating the continuous battery performance).
  • Page 21 Bat-Caddy: Please check our website to download assembly instructions. The golf season is over and I am ready to store my Bat-Caddy? What is your advice? Bat-Caddy: We recommend to clean the caddy using a damp cloth or brush for the wheel treads.
