Utility Bus (mix-minus) - typical use setup illustrations
Utilitzing utility buses for intercom feeds from utility buses

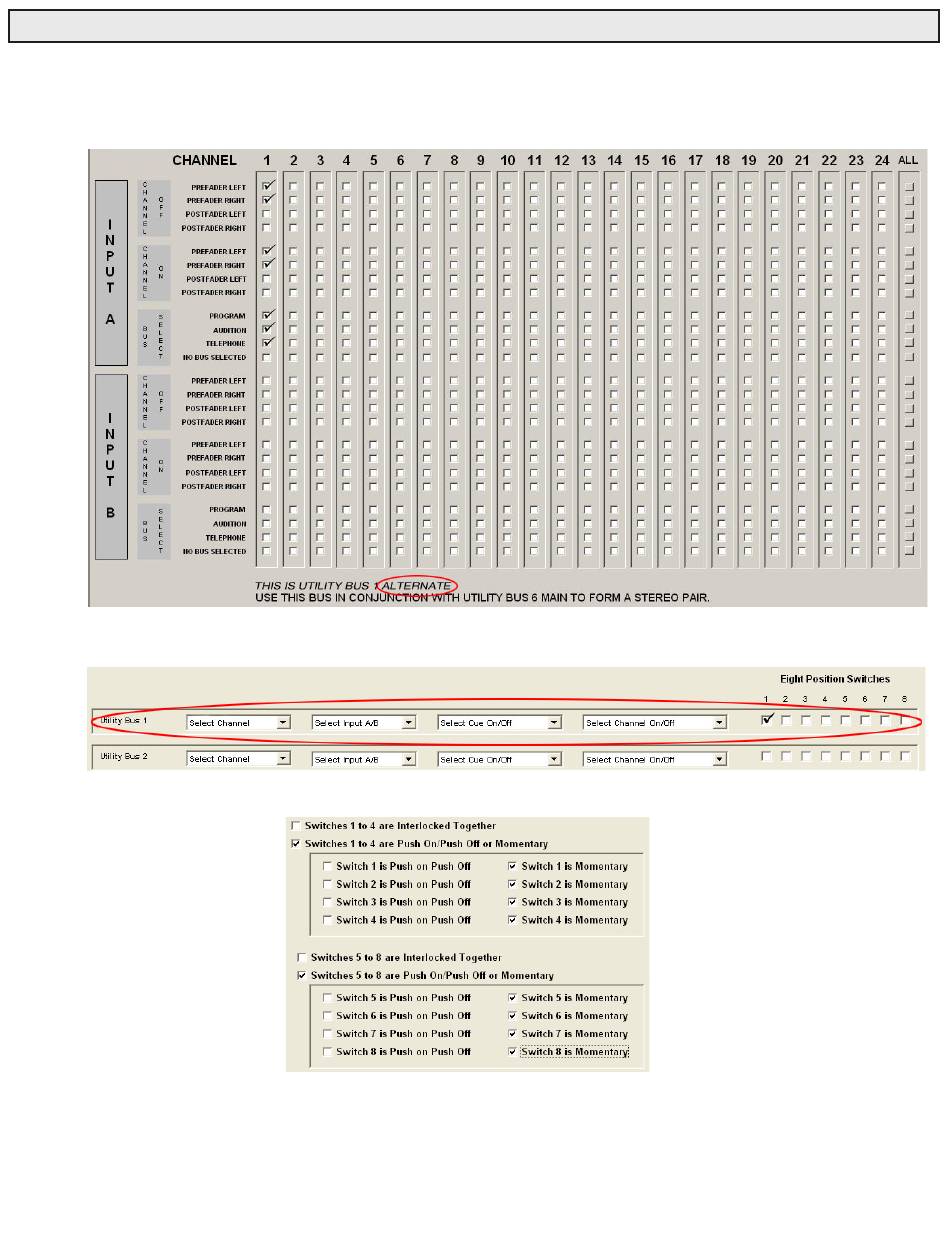

#1 Alternate Utility Bus Setup Screen - Example #4 - Creating an intercom feed
#1 Main/Alternate Utility Bus Selection Screen - Example #4 - Creating an intercom feed
#1 8 Position Switch Selection Screen - Example #4 - Creating an intercom feed
Use to create up to eight intercom or line level selectable feeds:
For this application create an alternate mix-minus screen with the DJ mic channel (in this illustration channel 1) set for A
and B input / pre on/off / pre fader / all buses allowed (ie. always on).
Then, per the second illustration above, set the main alt switching screen to select the alternate utility bus 1 (DJ mic
always on) feed when switch #1 on the eight position switcher is pressed.
Then, per the third illustration above, program the eight position switches for momentary operation. Note that the
switches can also be set for push on and push off in an exclusive, or non-exclusive mode as preferred for a specific
application.
