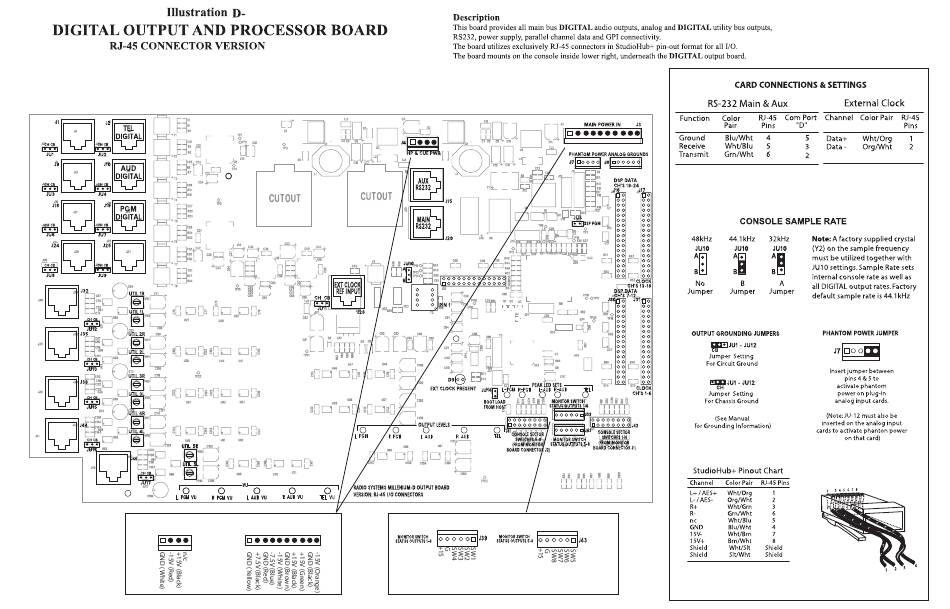

Radio Systems Millenium-D Installation And Operation Manual page 33

UTL 1/6
DIGITAL
UTL 2/7
DIGITAL
EXT CUE
INPUT LEVEL
UTL 3/8
DIGITAL
UTL 4/9 UTL 5/10
DIGITAL DIGITAL
UTL 1/6
ANALOG
UTL 2/7
ANALOG
UTL 3/8
ANALOG
UTL 4/9
ANALOG
UTL 5/10
ANALOG
TALKBACK OUTPUT LEVEL
Power Supply Connector Pin-Outs and Voltages
1 2 3 4
J4
3
P/N 16787
JU10 AND Y2 SET SAMPLE RATE
1 2 3 4 5 6 7 8 9 10
J3
Note: Pin outs provided for custom eight position switcher applications.
Factory cables are provided for four source switcher and squawk box options cards.
Switch pins are open collector/pull-to-ground.
LED VU METER
CRYSTAL Y2
MUTE-1 DIM
P/N 16787
6 5 4 3 2 1 6 5 4 3 2 1
Note: Connect PC com port to console main RS232 to Note: Data must be in AES/EBU (black)
establish software communication. Use com port 9 format. Sync defaults to external
pin D to RJ-45 adapter provided (RS p/n 15329). input when present.
