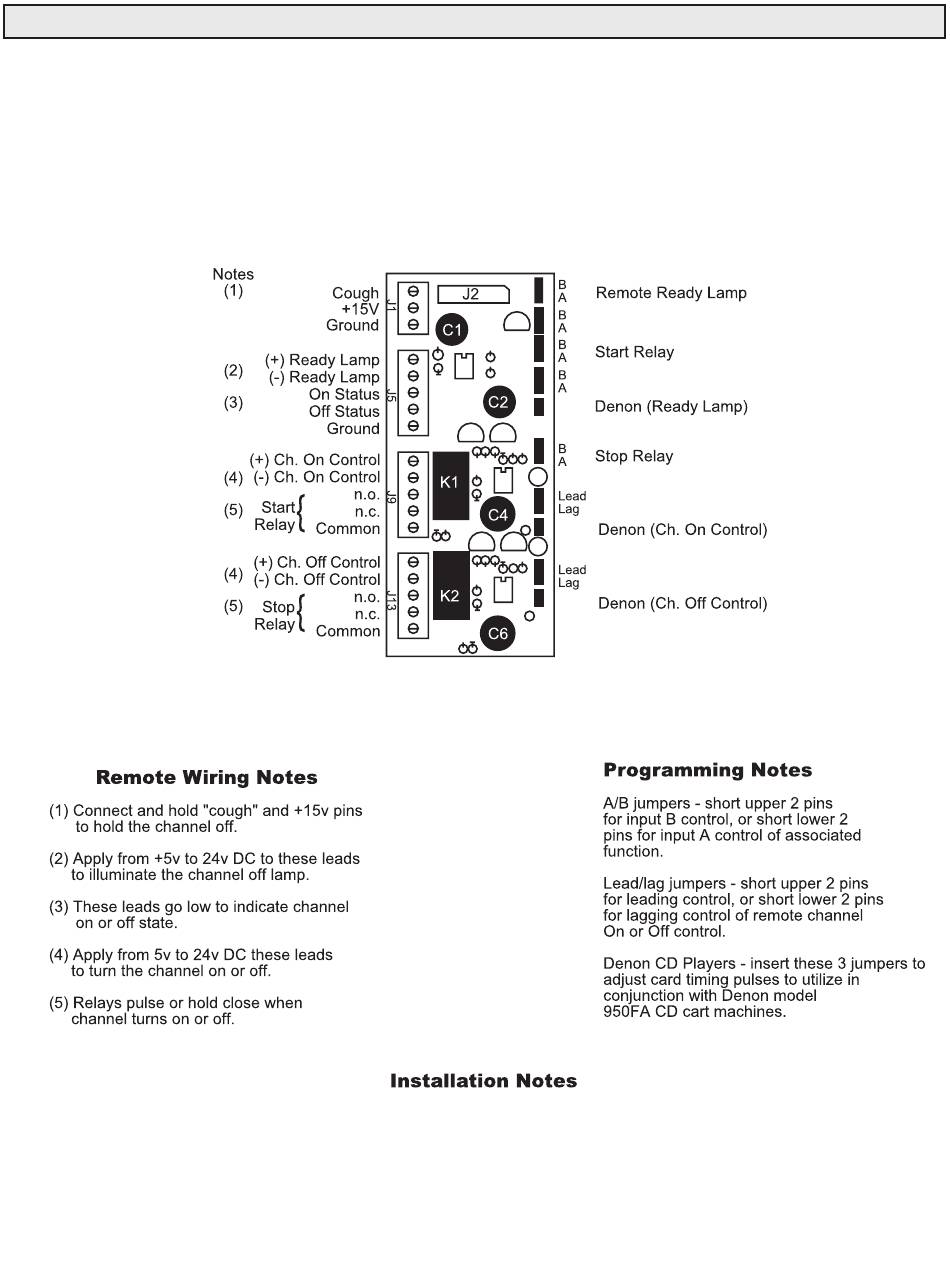

Illustration E-1

Enhanced Remote Interface Card

Description
This option card connects to any input channels 15-pin remote connector to provide relay and opto isolated channel
on/off and start/stop control.
Jumpers are also provided to program various enhanced logic states.
Ch. On Control
Ch. Off Control
Ch. On Control
Ch. Off Control
When ordered with the console, this optional board will normally be factory installed and operational.
For field installation, use the four plastic standoffs provided to mount the board on the inside rear console wall near the associated
input and output. Use the cable provided to wire the Remote Board(s) to the desired console channel remote control D connector
via on-board connector J-2.
