Radio Systems Millenium-D Digital Console

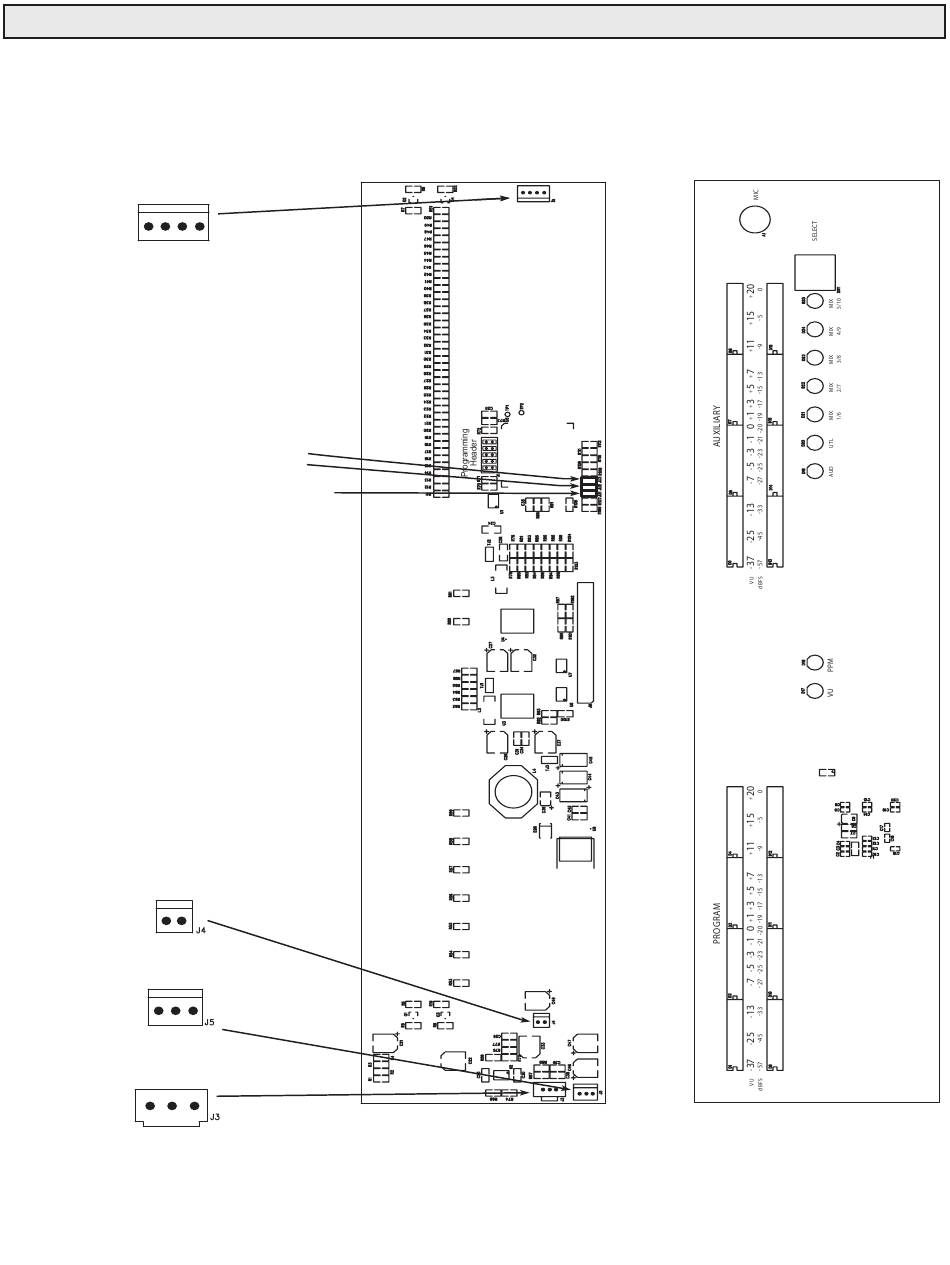

LED Meter Board with Talkback Microphone

Word Clock
(To external Word Clock Output
BNC connector)
{
JU2 Install JU3 only for 44.1Khz
JU3 Install JU2 only for 48 Khz
Install JU2 & JU3 for 32 Khz
JU1- Install for PPM / Remove for VU
Meter Power
+15v G
MicPower
+15v G -15v
Mic Output
-
+ G
LED Meter Board with Talkback Microphone
J2
Illustration A-4
Illustration A-3
Radio Systems p/n 16636
Radio Systems p/n 16636
Component Side
Page 11
Display Side
