Illustration; Ct-2002 Console Clock/Timer Wiring Diagram - Radio Systems Millenium-D Installation And Operation Manual

Radio Systems Millenium-D Digital Console
-
+
J7 (9 Pin D Female)
Pin 1
Pin 2
Pin 3
Pin 4
Pin 5
Pin 6
Pin 7
Pin 8
Pin 9

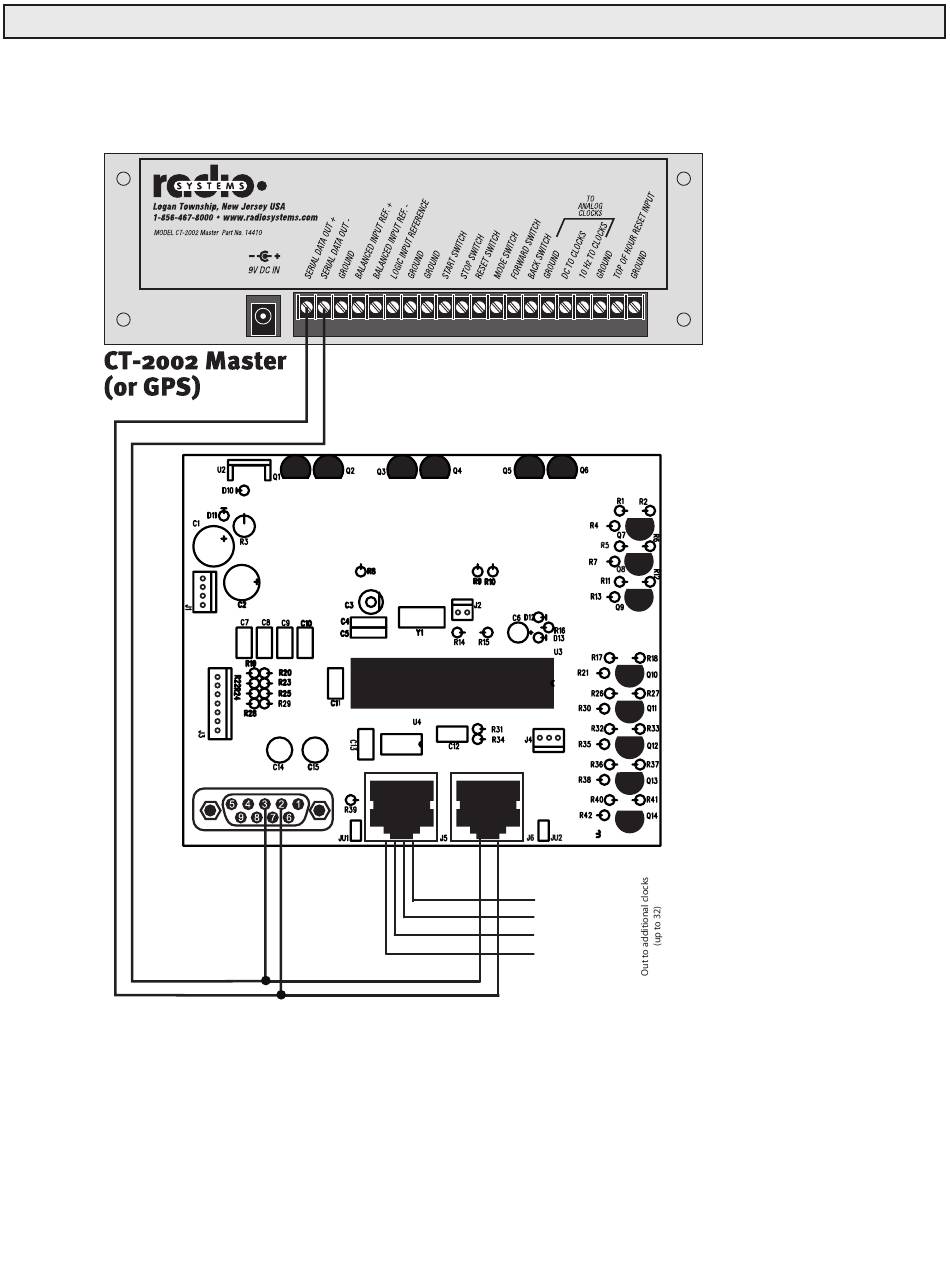

CT-2002 Console Clock/Timer Wiring Diagram

+
-
J7
J5 Serial Loop-Thru Output (RJ-45)
Serial Data Out + Pin 1
Serial Data In + Pin 2
Serial Data In - Pin 3
Serial Data Out - Pin 4
GND Pin 5
TOH Reset Pin 6
GND
N/C
N/C
Illustration A-2
J5 J6
Pin 6 Pin 3
Serial Serial
Data In - Data In +
Pin 1 Serial Data Out +
Pin 2 Serial Data Out -
Pin 3 Serial Loop Out +
Pin 6 Serial Loop Out -
Output +
Output -
Input +
GND
TOH Input
Input -
Note: Use pins 1&2 if this clock is the master
(first) in the serial chain (a crossover cable is
recommended). Use pins 3&6 iflooping thru
sync provided externally via J6 (a straight-thru
cable is recommended)
J6 Serial Input (RJ-45)
Pin 1 n/c
Pin 2 n/c
Pin 3 Input +
Pin 4 GND
Pin 5 TOH Input
Pin 6 Input -
* S/N RS-14503 11/2003) and later
Page 10
