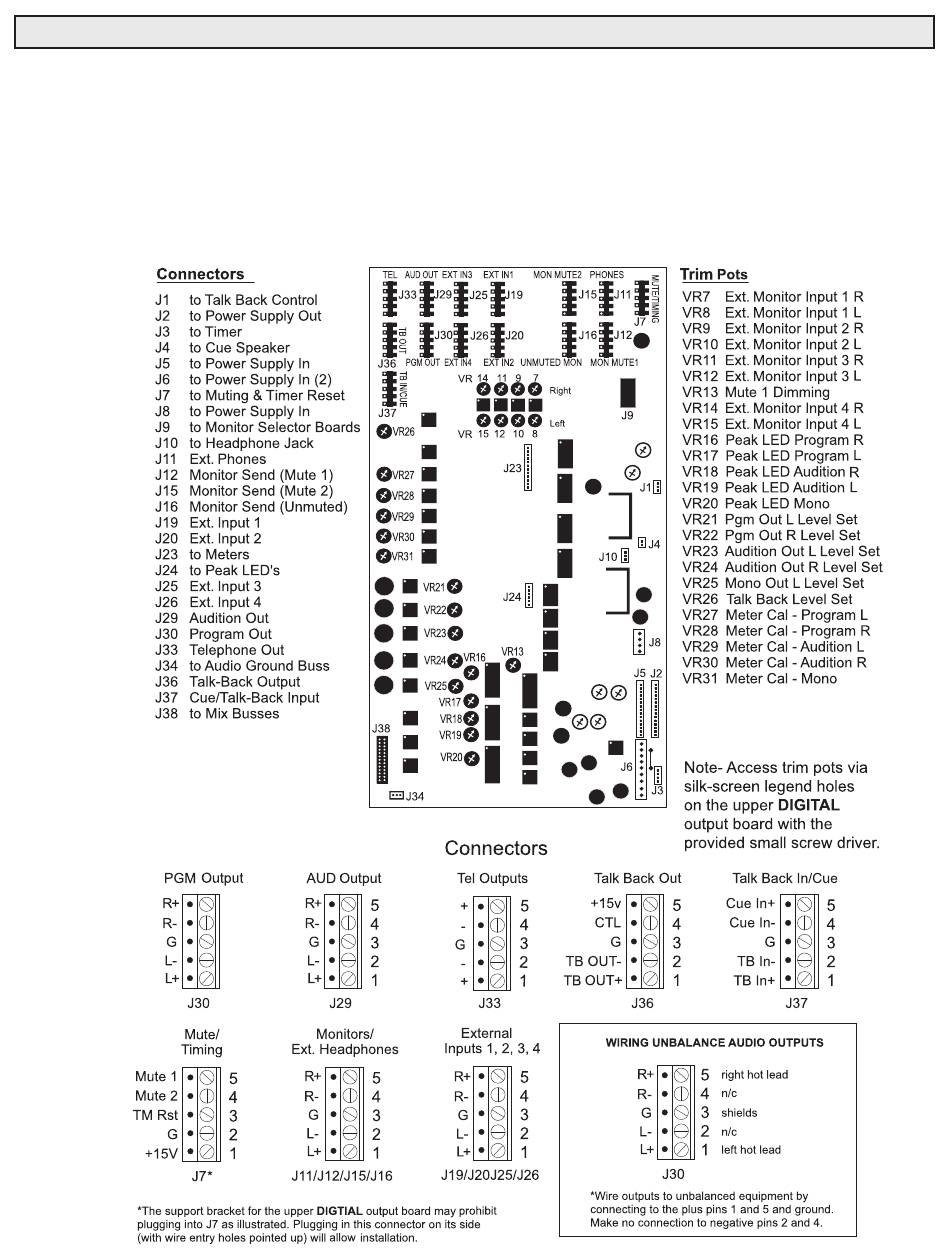

Illustration D-1
Analog Output and Meter Board
5-Pin Connector Version p/n 14800B
Description
This board provides all main bus analog audio outputs, external inputs, muting and talk-back and monitor sends.
The board utilizes exclusively 5-pin removable barrier strip connectors for all audio I/O.
The board mounts on the console inside lower right, underneath the digital output board.
W1 Jumper installed
for digital use
W1
** To use Talkback control pin (J36-4) to activate external replay
