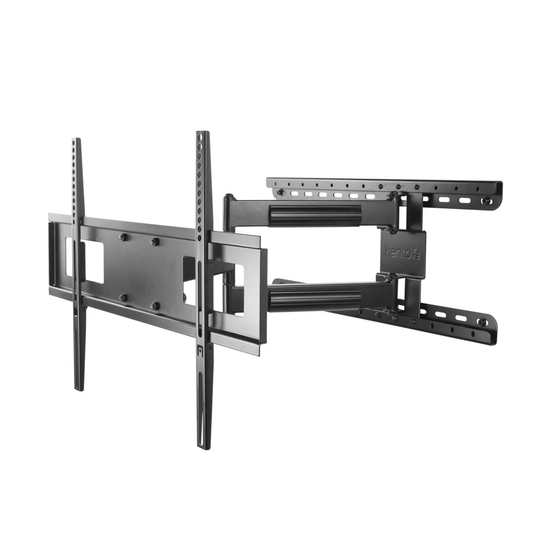

- Page 1 English User Manual FMC4 TV Mount FULL MOTION FLAT PANEL TV MOUNT 100x100 -5°/+10° 600x400 100 lb (45 kg) ±135° 3.1” - 26” VESA (8 - 66 cm) Supporting your digital lifestyle ™...
- Page 2 Setup - Step 1 ......4 Other Kanto Products ..... . 8 Setup - Step 2 .
-
Page 3: Supplied Parts And Hardware
Supplied Parts and Hardware Wall Plate A: M5 x 15mm B: M5 x 25mm C: M6 x 15mm D: M6 x 25mm Screw Screw Screw Screw E: M8 x 20mm F: M8 x 35mm G: M8 x 50mm H: Washer Screw Screw Screw... - Page 4 Step 1.1 Determine the correct size of bolt. Step 1.2 Attach TV Bracket Arms to the back of the TV Kanto provides 3 bolt diameters (Metric sizes M5, M6 Now that you have selected the correct bolt length, and M8) in various lengths.
- Page 5 Step 2: Mount Wall Plate Before you start drilling, attach the Wall Plate Template to your wall. It will make marking and drilling level pilot holes easier and catch a lot of the dust. Remember to remove it before you attach the wall plate! Wood Stud Wall Brick or Concrete Wall The Wall Plate must be mounted to two wood studs.
- Page 6 CAUTION Do not adjust pivot point while TV is mounted to the Wall Plate. Step 3: Adjust Pivot Point You can adjust the pivot point from side to side on the Wall Plate up to 20”. This fl exibility gives you the option to mount in corners or pivot to allow viewing at diff...
- Page 7 Step 5: Tilt the TV Loosen the tilt bolts on both sides of the mount plate using Tilt Bolts the 5mm Allen Key (O), as shown in Diagram G. Tilt the TV to the desired angle and tighten both tilt bolts. Diagram G Step 6: Cable Management Route your TV cables using the cable management...
- Page 8 5 years parts and labour If equipment fails because of such defects and Kanto or an authorized dealer is notifi ed within 5 years from the date of shipment with proof of original invoice, Kanto will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi...
