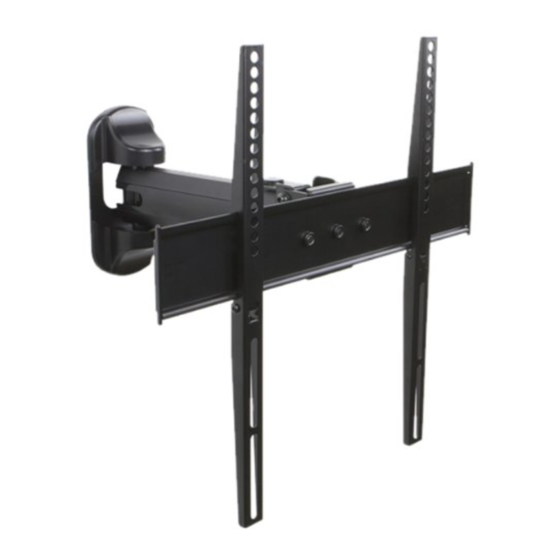

- Page 1 English User Manual M400 TV Mount FULL MOTION FLAT PANEL TV MOUNT +15°/−5° 100 x 100 400 x 400 100 lbs 26” - 50” (45.5 kg) ±80° VESA 4.5” - 12.4” COMPLIANT (11.4 - 31.5cm) ™ Supporting your digital lifestyle...
- Page 2 Supplied Parts & Hardware ....3 Other Kanto Products ..... . 7 Setup - Step 1 .
-
Page 3: Supplied Parts And Hardware
Supplied Parts and Hardware Wall Mount A: M4 x 15mm B: M4 x 25mm C: M5 x 15mm D: M5 x 25mm Screw Screw Screw Screw E: M6 x 15mm F: M6 x 25mm G: M8 x 15mm H: M8 x 25mm I: M8 x 35mm Screw Screw... - Page 4 Step 1.1 Select the correct size of bolt. Step 1.2 Attach TV bracket arms to the back of the TV Kanto provides 4 bolt diameters (Metric sizes M4, M5, M6 Now that you have selected the correct bolt length, it’s and M8) in various lengths.
- Page 5 Step 2: Mount Wall Plate Wood Stud Wall Brick or Concrete Wall Verify where the center of the stud is by using a stud Drill the hole perpendicular to the wall using a masonry finder. At the desired height, drill the Wall Plate pilot bit (see Diagram C).
- Page 6 CAUTION Read this section carefully prior to install. TV bracket (R) TV plate Step 3: Attach TV to TV Plate TV bracket (S) Safety bolt Use two people to lift the TV onto the TV Plate. Make sure the Quick-Lock TV Bracket (R) snaps shut and secures the TV Bracket to the TV Plate (see Diagram D).
- Page 7 • Metal head connectors with flex relief and grip • HDMI Ethernet Channel For more TV and desktop mounts, along with our other products, please visit kantoav.com “LIKE” Kanto on Facebook to receive upcoming news and special product offers Supporting your digital lifestyle ™...
- Page 8 The information in the owner’s manual has been carefully checked and is believed to be accurate. However, Kanto assumes no responsibility for any inaccuracies that may be contained in the manual. In no event will Kanto, be liable for direct, indirect, special, incidental, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages.
