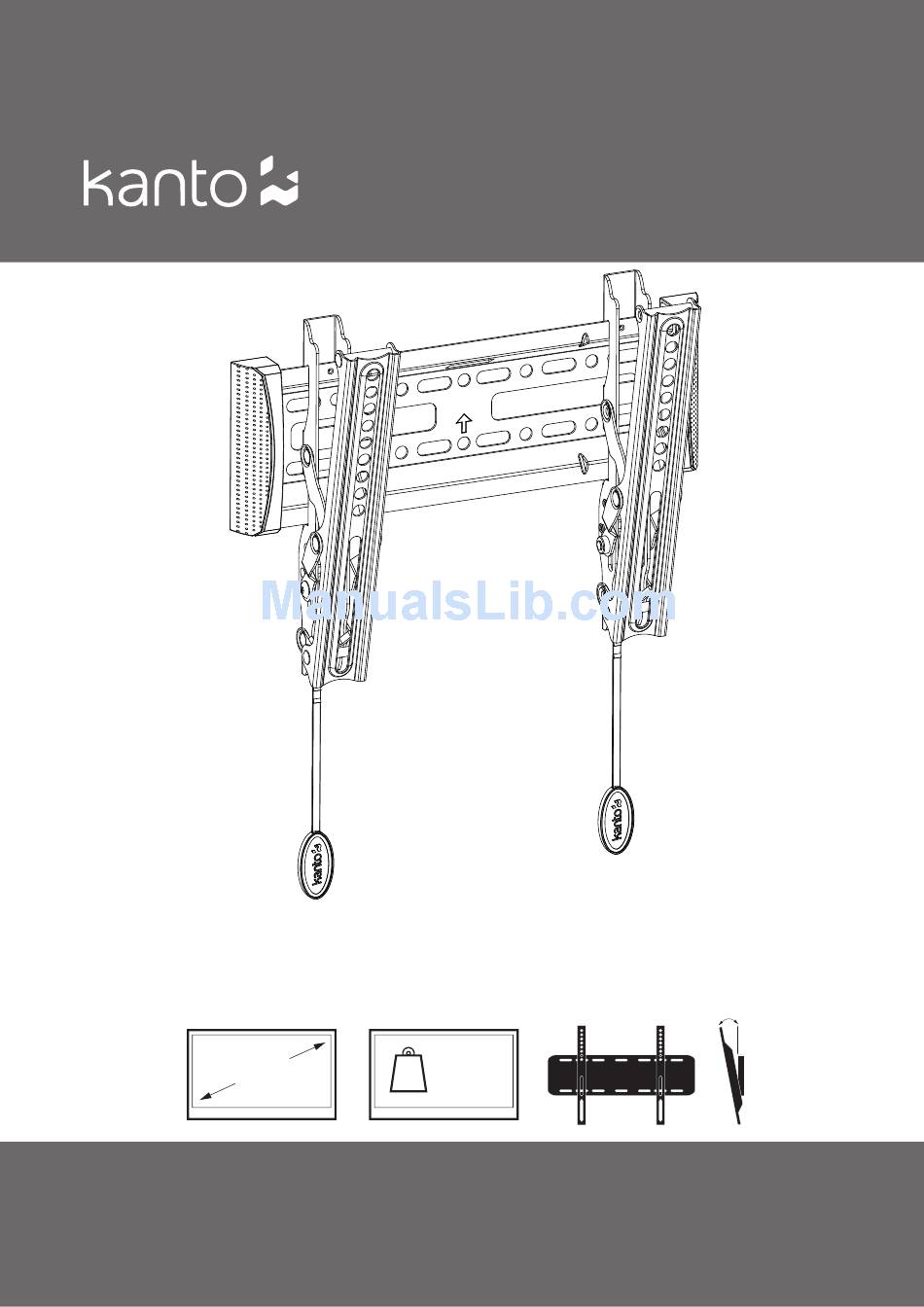

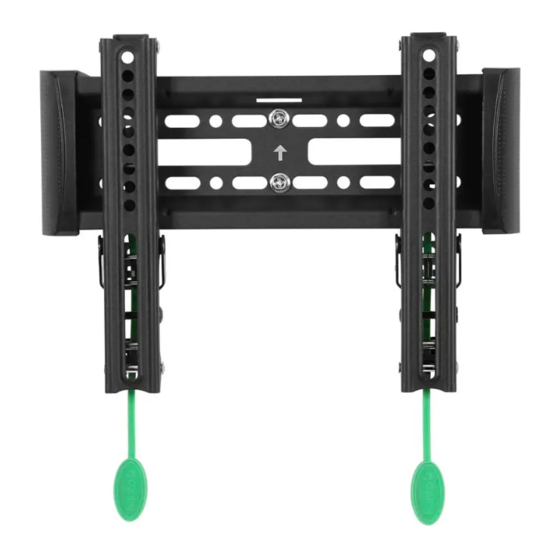

- Page 1 English User Manual KT1937 TV Mount TILTING FLAT PANEL TV MOUNT +15° 50x50 200x200 40 lbs 19” - 37” (18 kg) VESA ™ Supporting your digital lifestyle...
- Page 2 Setup - Step 1 ......4 Other Kanto Products ..... . 8 Setup - Step 2 .
-
Page 3: Supplied Parts And Hardware
Supplied Parts and Hardware Wall Plate A: M4 x 15mm B: M4 x 25mm C: M5 x 15mm D: M5 x 25mm Bolt Bolt Bolt Bolt E: M6 x 15mm F: M6 x 25mm G: M8 x 15mm H: M8 x 25mm Bolt Bolt Bolt... - Page 4 If your TV has a curved back or the mounting holes are recessed, you can use a combination of spacers (K and Kanto provides 4 bolt diameters (Metric sizes M4, M5, M6 L) and the washer (M) with its indent facing in or out to and M8) in various lengths.
- Page 5 Step 2: Mount Wall Plate Wood Stud Wall Brick or Concrete Wall The Wall Plate must be mounted to a wood stud. Use a Using the Wall Plate as a template, mark four holes stud sensor to locate the stud, clearly marking the outer toward the outer edge of the Wall Plate at your desired edges of the stud (see Diagram B).
- Page 6 CAUTION Read this section carefully prior to install. Step 3: Trim Quick Releases The KT1937 arms feature plastic quick releases that are used if you want to remove your television from the mount in future. So that they do not hang below the bottom...
- Page 7 Step 5: Tilt the TV 0° − 15° The KT1937 can tilt up to +15° downwards. Simply pull the top of the TV towards you until you reach the desired viewing angle. If you wish to lock the TV at that position, tighten the screws on the sides of the Quick Release Arms, as shown in Diagram F.
- Page 8 24 months parts and labour If equipment fails because of such defects and Kanto or an authorized dealer is notified within 24 months from the date of shipment with proof of original invoice. Kanto will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifications.
