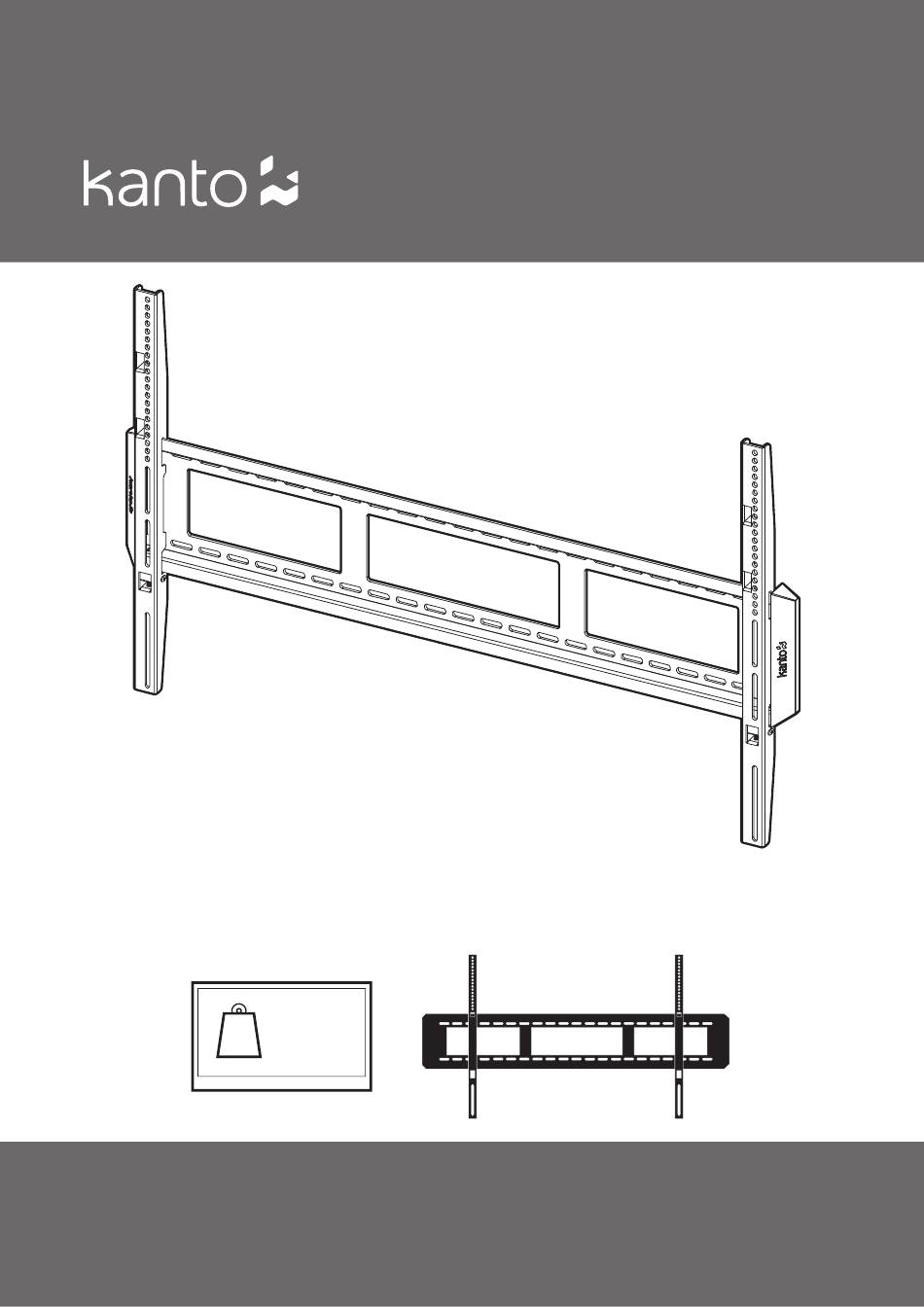

- Page 1 English User Manual F6080 TV Mount FIXED FLAT PANEL TV MOUNT 400x400 1100x600 200 lbs 60” - 90” (91 kg) VESA ™ Supporting your digital lifestyle...
- Page 2 Supplied Parts & Hardware ....3 Other Kanto Products ..... . 7 Setup - Step 1 .
-
Page 3: Supplied Parts And Hardware
Supplied Parts and Hardware Wall Plate A: M5 x 15mm B: M5 x 25mm C: M6 x 15mm Screw Screw Screw D: M6 x 25mm E: M8 x 15mm F: M8 x 25mm G: M8 x 35mm Screw Screw Screw Screw H: Washer I: Lag Bolt Washer... - Page 4 Step 1.1 Select the correct size of bolt Step 1.2 Attach TV Bracket Arms to the back of the TV Kanto provides 3 bolt diameters (Metric sizes M5, M6 and Now that you have selected the correct bolt size, attach the arms (R) to the TV, as shown in Diagram A.
- Page 5 Step 2: Mount Wall Plate Attach the two plastic End Caps (M) to the Wall Plate. Wood Stud Wall Brick or Concrete Wall The Wall Plate can be mounted to three wood studs with Using the Wall Plate as a template, mark six holes (four 16”...
-
Page 6: Step 3: Attach Tv To Wall Plate
CAUTION Step 3: Attach TV to Wall Plate Read this section carefully prior to install. With the TV Brackets firmly secured to the TV, use two people to lift the TV into position and hook the TV brackets onto the Wall Plate, as shown in Diagram D. The two spring loaded Quick-Lock Brackets will snap into place as you lower the bottom of the TV onto the plate. - Page 7 Kanto Speakers • Check out our full line of bookshelf and desktop speaker systems • Available in a stunning array of colors • Visit www.kantoliving.com for more! SP26 • Full line of Audio and Video Cables • White or Black Cables available •...
-
Page 8: Warranty
Customers will be responsible for obtaining a Return Authorization as well as shipping costs to return product to a Kanto location or authorized depot listed on the website. If the equipment is covered under the warranty provisions above, Kanto will repair or replace, and be responsible for return shipping to the customer.
