User Manual
Manuel de l'utilisateur
Manual del Usuario

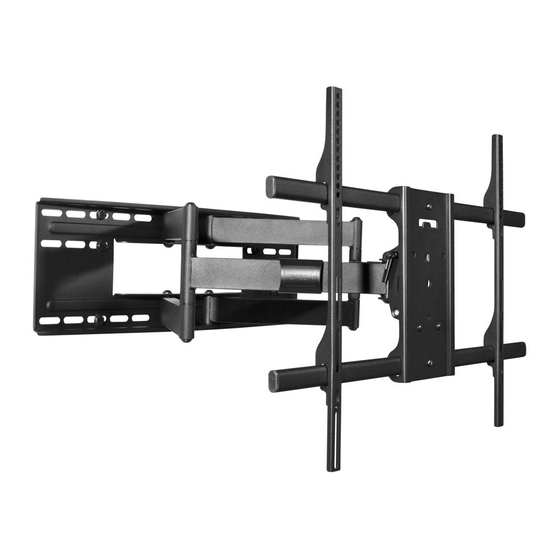

FMX3
FULL MOTION FLAT PANEL TV MOUNT
SUPPORT ARTICULÉ POUR TV D'ÉCRAN PLAT
MONTAJE ARTICULADO PARA TV DE
PANTALLA PLANA
200x100
-
+15°/−5°
700x500
150 lbs
40" - 90"
±80°
4– 28"
(68 kg)
(10–71cm)
VESA
Supporting your digital lifestyle ™
Supportant votre mode de vie digital™
Apoyo a su estilo de vida digital™
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Kanto FMX3
Summary of Contents for Kanto FMX3
- Page 1 User Manual Manuel de l’utilisateur Manual del Usuario FMX3 FULL MOTION FLAT PANEL TV MOUNT SUPPORT ARTICULÉ POUR TV D’ÉCRAN PLAT MONTAJE ARTICULADO PARA TV DE PANTALLA PLANA 200x100 +15°/−5° 700x500 150 lbs 40” - 90” ±80° 4– 28” (68 kg) (10–71cm)
- Page 2 English Thank you for choosing a Kanto full motion wall mount. The FMX3 is designed to mount flat panel televisions weighing up to 150 lbs (68 kg), extend an amazing 28” (71cm) from your wall, pan left and right up to 80° (depending on TV size), and tilt your TV +15° / –5°. You can also adjust the horizontal level ±5°.
- Page 3 Supplied Parts and Hardware Matériel et les pièces fournies Partes suministradas y materiales A: M4 x 15mm B: M4 x 30mm D: M5 x 30mm C: M5 x 15mm E: M6 x 15mm F: M6 x 30mm G: M8 x 15mm H: M8 x 30mm I: M8 x 40mm J: Spacer/Entretoise/...
- Page 4 WARNING/ AVERTISSEMENT/ PRECAUCIÓN Do not lay the TV face down on its front. Lean against a wall or use a TV stand. Ne posez pas la téléviseur sur son front. Restez contre un mur ou utilisez un stand de TV. No deje el televisor posado sobre su cara de cristal.
- Page 5 Wood Stud Wall/ Mur de Montants en Bois/ Pared de vigas de madera 3.5” (90mm) 1/4” (6.5mm) CAUTION Make sure the supporting surface will support the load limits outlined in the caution on page two. Tighten Lag Bolts until the Wall Plate is snug flat against the wall.
- Page 6 Brick or Concrete/ Brique ou Béton/ Ladrillo u Hormigón 2.5” (65 mm) 9/16” (14.5mm) Anchor/Ancrage/Anclaje (T): T1+T2 T5 T4 T1 + T2 CAUTION Make sure the concrete or brick wall is at least 3.5” thick. Make sure the anchor is seated completely flush with the concrete surface even if there is another layer of material, such as drywall.
- Page 7 ±5° +15°/−5°...
- Page 8 à: 24 mois pour les pièces et la main d’oeuvre Si le matériel tombe en panne du fait desdits défauts et que la notification en est faite à Kanto ou un revendeur agrée sous 24 mois à partir de la date de livraison avec comme preuve la facture originale, Kanto réparera ou remplacera, à...
