Summary of Contents for Kanto F3760

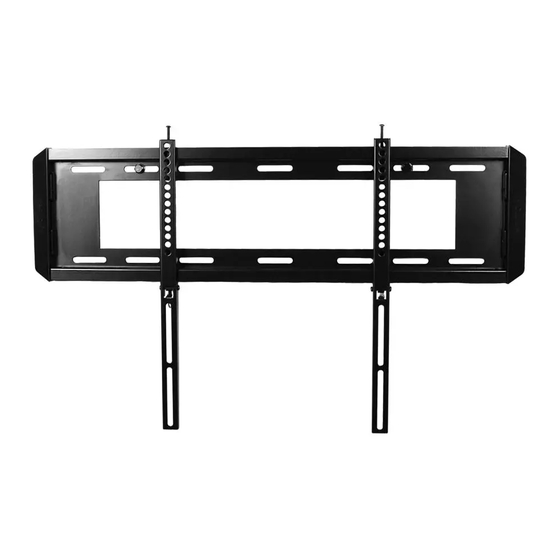

- Page 1 English User Manual F3760 TV Mount FIXED FLAT PANEL TV MOUNT 150 lbs 37” - 60” (68 kg) 100x100 600x400 VESA ™ Supporting your digital lifestyle...
- Page 2 Setup - Steps 3 to 4 ..... . . 6 Other Kanto Products ..... . 7 Warranty .
-
Page 3: Supplied Parts And Hardware
Supplied Parts and Hardware Wall Plate A: M5 x 15mm B: M5 x 25mm C: M6 x 15mm Bolt Bolt Bolt D: M6 x 25mm E: M8 x 15mm F: M8 x 25mm G: M8 x 35mm Bolt Bolt Bolt Bolt H: Washer I: Lag Bolt Washer... - Page 4 Use the washer (H) for bolts A to D (sizes M5 and M6). The washer will work for both bolt sizes. The washer is Kanto provides 3 bolt diameters (Metric sizes M5, M6 and not required for M8 size bolts (E, F & G).
- Page 5 Step 2: Mount Wall Plate Wood Stud Wall Brick or Concrete Wall The Wall Plate must be mounted to two wood studs. Use Using the Wall Plate as a template, mark four holes a stud sensor to locate the two studs, clearly marking toward the outer edge of the Wall Plate at your desired the outer edges of the studs (see Diagram B).
-
Page 6: Step 3: Attach Tv To Wall Plate
CAUTION Read this section carefully prior to install. WARNING Use two people to lift and position the TV onto the Wall Plate. Step 3: Attach TV to Wall Plate With the TV brackets firmly secured to the TV, use two people to lift the TV into position and hook the TV brackets onto the wall plate, as shown in Diagram D. - Page 7 Check out more great products from Kanto! Kanto Speakers • Check out our full line of bookshelf and desktop speaker systems • Available in a stunning array of colors • Visit kantospeakers.com for more! • Full line of Audio and Video Cables •...
-
Page 8: Warranty
24 months parts and labour If equipment fails because of such defects and Kanto or an authorized dealer is notified within 24 months from the date of shipment with proof of original invoice, Kanto will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifications.
