Spirax Sarco PN9400E Series Technical Data

In the interests of development and improvement of the product, we reserve the right to change the specification without notice. © Copyright 2018
PN9400 Series Pneumatic Actuators
K and L Series DN125 - DN300, C Series and QL Series
PN9400 Series

Description

The PN9400 series are a compact range of linear pneumatic
actuators. They have been designed for matching the requirements
of valves at various differential pressures. Each actuator is fitted
with a mechanical travel indicator and incorporates a fully-rolling
diaphragm, which provides good linearity over the operating stroke.

Available types and options

See the 'PN9400 series selection guide' on page 2, to fully
understand the product nomenclature quoted throughout this
document.
Local regulations may restrict the use of this product to below the conditions quoted.
for Spira-trol
Technical data
Temperature range
Maximum operating inlet pressure
Air supply connection
Actuator travel
TM

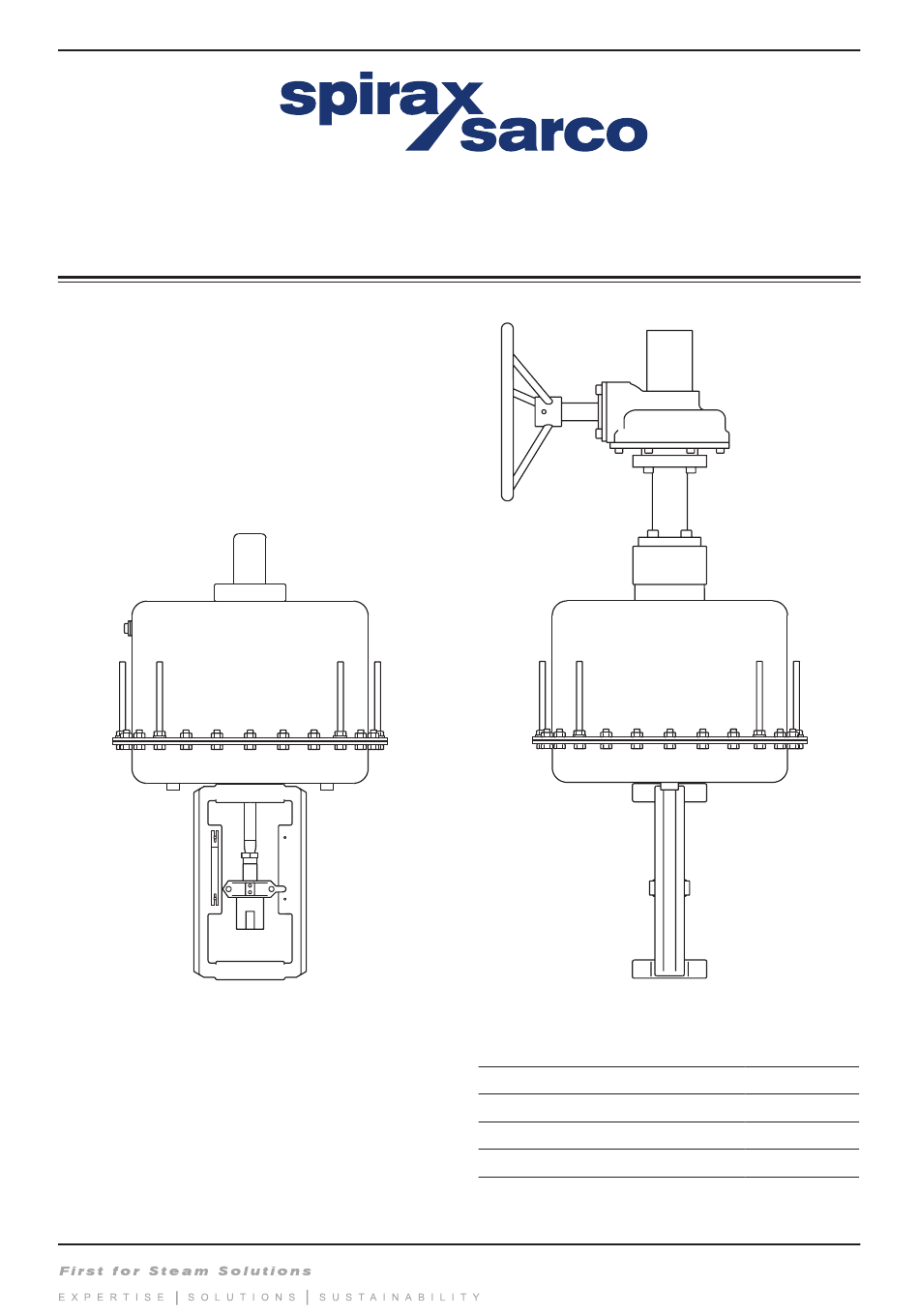

PN9400 Series with handwheel
TI-P357-31
CTLS Issue 6
-20 °C to +80 °C
4 bar g
2 x ½" NPT
80 mm
