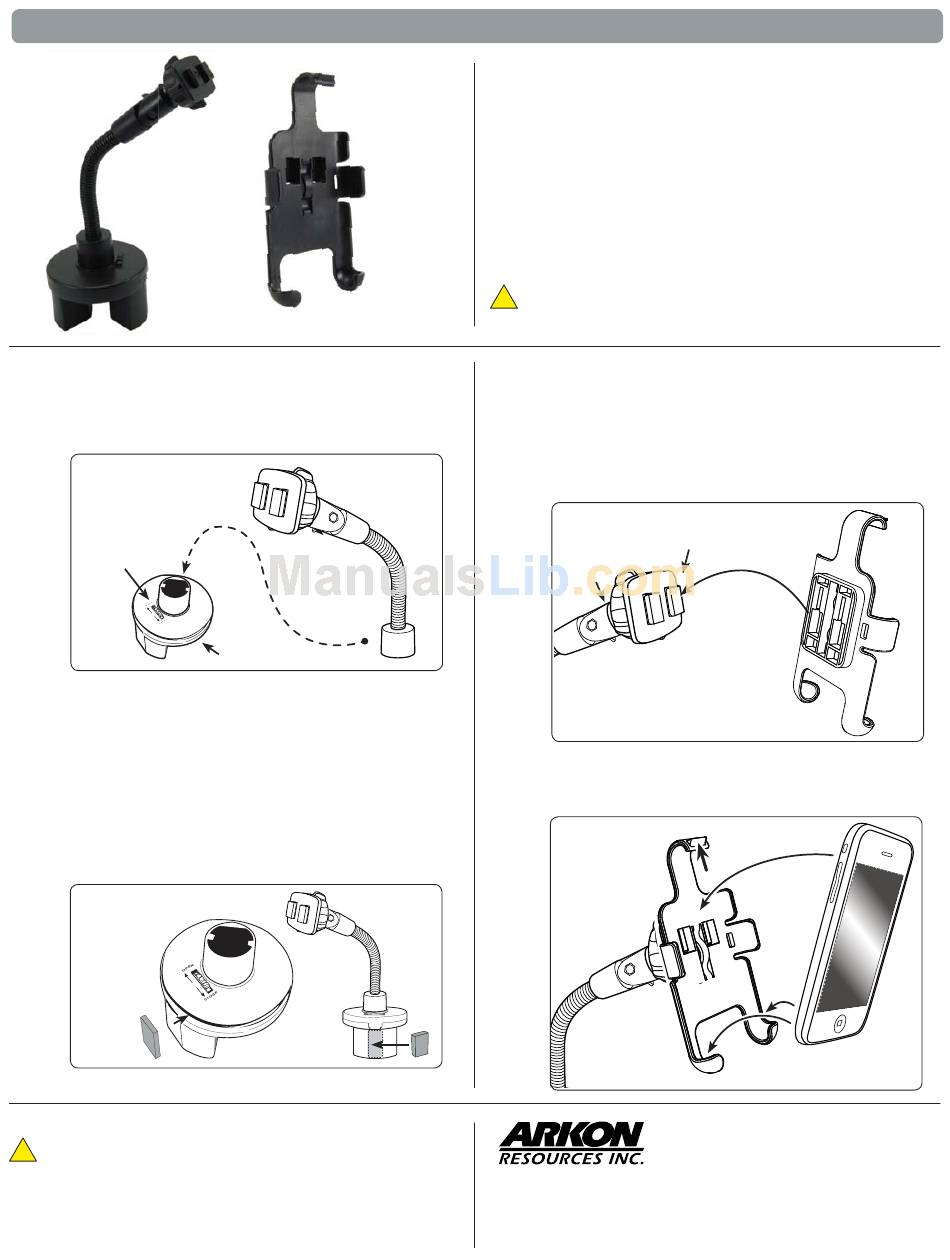

Arkon IPM123-G User Manual

IPM123-G |
Cup Holder Mount with Flexible Goosneck Shaft for for Apple iPhone®
GN033-SBH
Cup Holder Mount

Cup Holder Mounting

Step 1. Connect the gooseneck shaft (A) to the cup holder base (B)
by aligning the groove on the base to the ridge inside of the
bottom of the shaft.
(C) Thumb wheel
adjustment
knob
Step 2. Place the Universal Cup Holder Mount into the designated
cup holder in the vehicle. Adjust the thumb wheel adjuster
(C) to open or close the cup holder prongs to fi t in the cup
holder.
Step 3. For oversize cup holder openings or the adjustable "pop
out" cup holders use the optional self-adhesive side support
pads (D). Install the pads by removing the adhesive backing
and placing it on the fl at surface side of the cup holder
support leg.
(D) Optional
support
pads

Safety Precautions

!
Do not install Arkon products over an air bag cover or within the air
bag deployment zone. Arkon Resources, Inc. assumes no responsi-
bility of liability for injury or death as a result of car crashes and / or
air bag deployment.
Arkon is not responsible for any damages caused to your car, your
device, or yourself due to the installation or use of this pedestal mount.
CC005-IP
Custom holder
for iPhone
(A) Cup Holder
Neck
(B) Cup Holder Base

Package Contents:

(1) GN033-SBH - 5" Cup holder pedestal mount with fl exible gooseneck
shaft
(1) CC005-IP - Custom holder for Apple iPhone® 3G, 3GS & Original
iPhone
No tools required for installation.
Note: mount may not work with adjustable, "pop out" cup holders or
oversize cup holder openings found in full-size pickup trucks.
!
Do not place mount in or near an air bag deployment
zone or where it will obstruct view of the road.

iPhone Holder Attachment

Step 1. Adjust the angle of the dual T head by tightening the
adjustment nut at the top of the cup holder shaft (E).
Step 2. Install the iPhone holder to the shaft by inserting the dual
T-tabs (F) on the shaft into the T-slots (G) on on the back of
the holder.
(F) Cup Holder
Shaft T-tabs
(E) Angle
Adjustment
Nut
Step 2. Lift and hold the upper thumb tab (H) while gently lowering
the iPhone device (not included, sold separately) into the
custom holder.
H
The Mobile Mounting Specialists™
Consumer Hotline:
USA (800) 841-0884
INT'L (626) 254-9005
Monday - Friday 9 am - 5 pm, PST
(G) T-slots
(iPhone device
not included)
www.arkon.com
Arcadia, CA 91006 USA
Designed in USA | Made in Taiwan
© Copyright 2010 Arkon Resources, Inc.
