7.4.3
Terminal Plates
Terminal plates are supplied with the battery system to provide a system connection point
(except for "C" line). All system connections must be made to the terminal plate and NEVER to
the cell terminal post (except for "C" line).
1.
Clean the electrical contact areas of the terminal plate, terminal connectors, and cell/jar
posts with a stiff-bristle nonmetallic brush/pad until the surface is bright. Be careful not to
remove the plating with excessive brushing. A typical terminal plate is illustrated in Figure
7.7.
2.
With a small paintbrush, apply a light coating of heated NO-OX-ID grease to contact
areas.
3.
Install the terminal connectors to cell posts. Tighten all connections according to the
torque values in Table 7.1.
TERMINAL CONNECTOR
Page 26
www.enersys.com
TERMINAL PLATE
L SHAPE
OPTIONAL

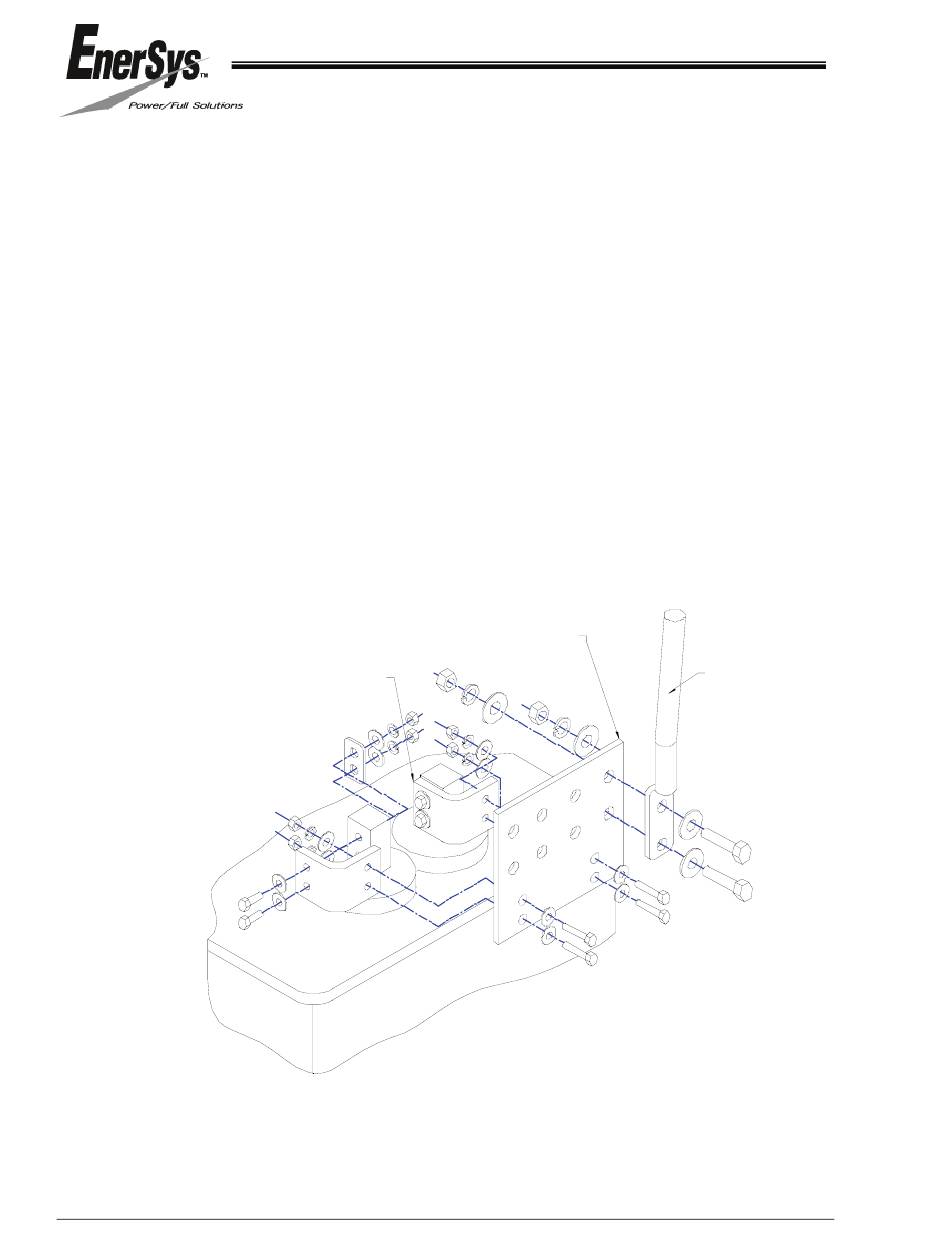

TERMINAL PLATE INSTALLATION
Figure 7.7
Publication No. US-FL-IOM-002 January 2007
CABLE CONNECTOR
WITH NEMA LUG
