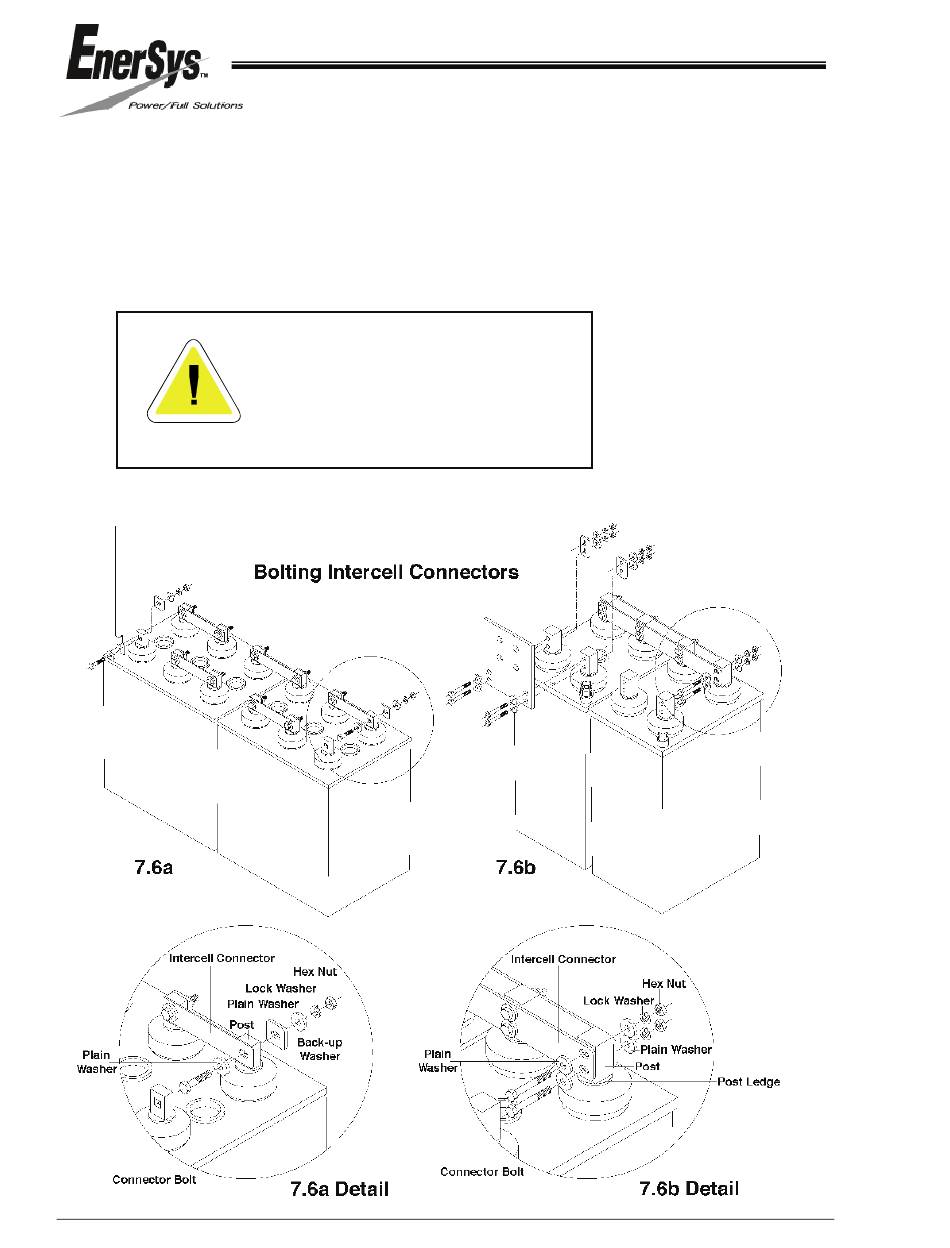

Bolt all intercell connectors and assemble as shown in Figures 7.6a, 7.6b and the
details. Figure 7.6a is applicable to CA & CC models, Figure 7.6b is a representative
diagram for CX, DX, DXC, EA, EC, ES, FTA, FTC, GC, GT, GU.
Certain intercell connectors (such as those for all "G" cells) are furnished with the bolt
holes located off-center. Install these connectors so that the bottom edge of the
connector does not interfere with the post ledge (Figure 7.6b and the detail).
Page 24
www.enersys.com
Stamped flat washers may have
one sharp edge. Install with this
edge away from the plated
copper intercell connector to
avoid damaging the plating.
