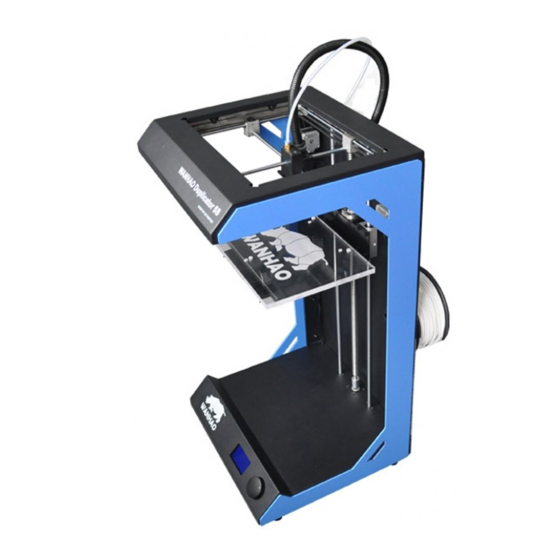

WANHAO Duplicator 5S User Manual

Wanhao Duplicator 5S & Duplicator 5S MINI Heated Build Plate kit

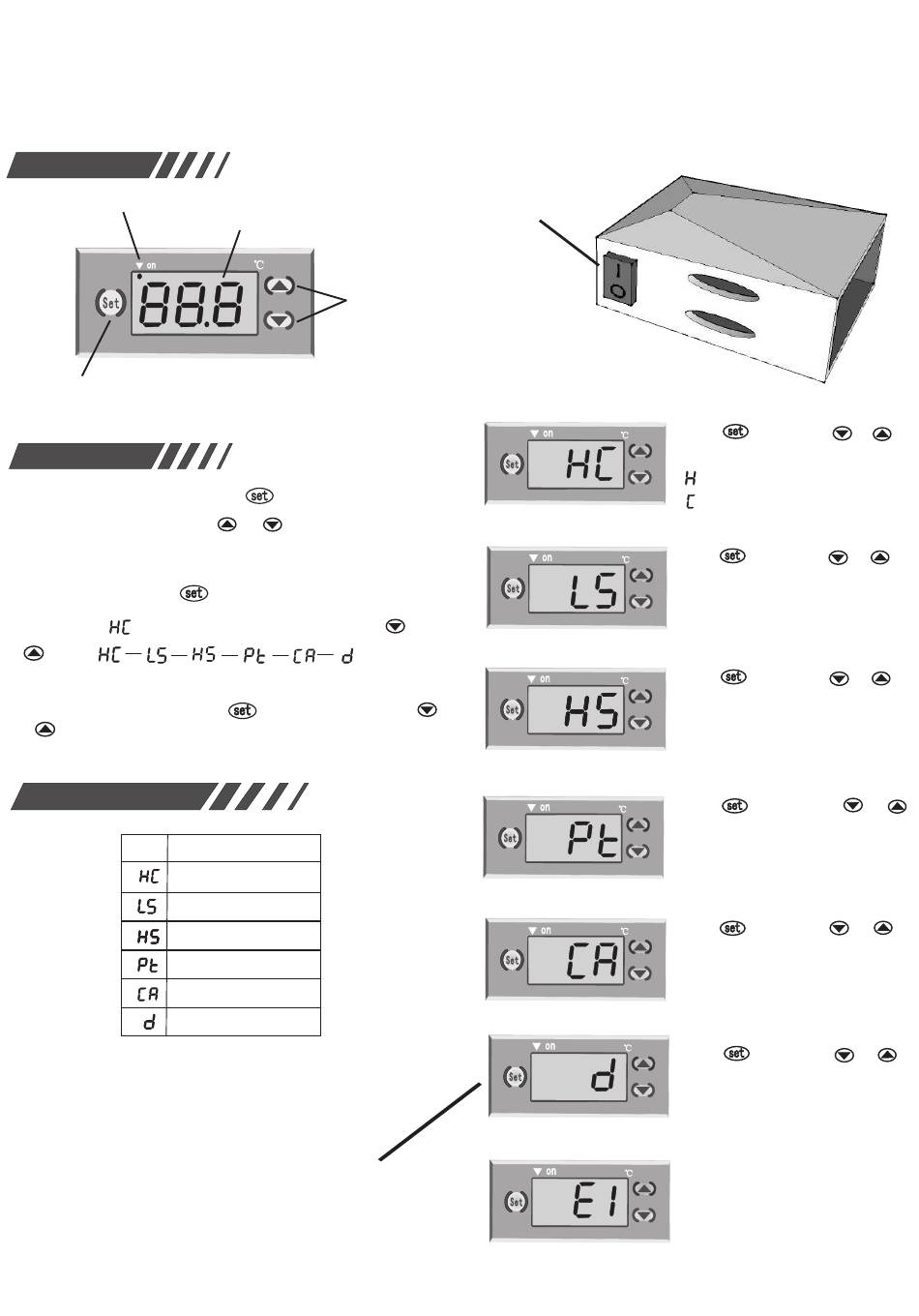

LCD Layout
Power Indicator
SET/Enter Button
Operation
1. Set Target Temperature：
target temperature.Now press
temperature.
2. Second Menu： Hold
Menu setting will be displayed. Scroll by pressing
to set
3. Once you have scrolled to the desired menu setting you can
adjust this setting by holding the
or button simultaneously.
Second Menu Codes
Code
*IMPORTANT: Before operation you will
need to set up the "temperature return
difference" in order for your device to
maintain a set temperature within 1-15
degrees. If you set this value to 1 then your
device will turn back ON the heater within
-1 degree from the targeted temperature. If
you set this value to 15 then your device
will turn back ON the heater within -15
degrees from the targeted temperature.
Default setting value is 1.
Temperature Display
UP/DOWN
gently to blink display the
Press
to change the target
or
for 6 seconds to enter second menu.
button and clicking the
Function
Heating/Cooling
Low Temperature Limit
High Temperature Limit
Delayed Time
Temperature Correction
Temperature Return Difference
© Wanhao USA 2015 www.wanhaousa.com
User Manual
Power Switch
Scroll
Buttons
or
.
Hold ,then press
to scroll through options.
represents Heating Mode,
represents Cooling Mode.
Hold ,then press
to scroll through options.
Choose lowest temperature limits:
－1 9.9℃ to -1.0℃
Hold ,then press
to scroll through options.
Choose highest temperature limits:
+1.0℃ to 99.9℃
Hold then press
to set delayed start time from
0 to 5 minutes.
Hold then press
to scroll through options.
Choose temperature correction:
- 15.0℃ to 5.0℃
Hold then press
to scroll through options.
Choose return difference:
1℃ to 15℃
Device Error: When there is an
open or short circuit the error
code"EI" will be displayed.
