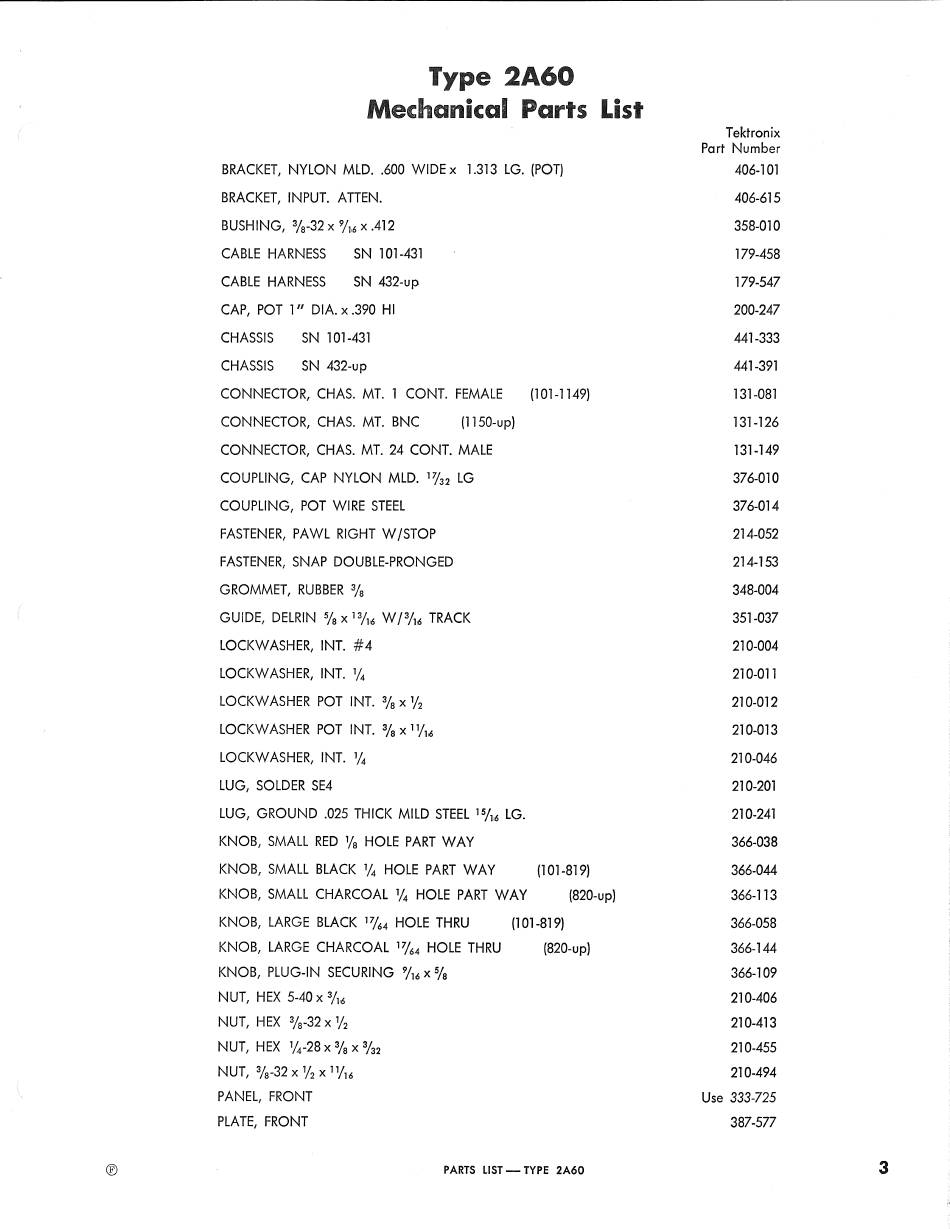

Type 2A60
Mechanical Parts List
BRACKET, NYLON MLD .. 600 WIDE x 1.313 LG. (POT)
BRACKET, INPUT. ATTEN.
BUSHING, %-32
X 9 /1,6 X
.412
CABLE HARNESS SN 101-431
CABLE HARNESS SN 432-up
CAP, POT 1" DIA.
x
.390 HI
CHASSIS SN 101-431
CHASSIS SN 432-up
CONNECTOR, CHAS. MT. l CONT. FEMALE (101-1149)
CONNECTOR, CHAS. MT. BNC (1150-up)
CONNECTOR, CHAS. MT. 24 CONT. MALE
COUPLING, CAP NYLON MLD.
1
7;'
32
LG
COUPLING, POT WIRE STEEL
FASTENER, PAWL RIGHT W /STOP
FASTENER, SNAP DOUBLE-PRONGED
GROMMET, RUBBER
%
GUIDE, DELRIN
%
x
13 / 1 , 6
W /
3 / 1 , 6
TRACK
LOCKWASHER, INT. #4
LOCKWASHER, INT. ¼
LOCKWASHER POT INT.
3/a
x
½
LOCKWASHER POT INT.
3/a
x 11 / 16
LOCKWASHER, INT. ¼
LUG, SOLDER SE4
LUG, GROUND .025 THICK MILD STEEL
15 / 1 , 6
LG.
KNOB, SMALL RED
1 / 8
HOLE PART WAY
KNOB, SMALL BLACK ¼ HOLE PART WAY (101-819)
KNOB, SMALL CHARCOAL ¼ HOLE PART WAY (820-up)
KNOB, LARGE BLACK
17 / 64
HOLE THRU (101-819)
KNOB, LARGE CHARCOAL
17 / 64
HOLE THRU (820-up)
KNOB, PLUG-IN SECURING
9 / 1 , 6
x
%
NUT, HEX 5-40
x
3 /
16
NUT, HEX %-32
x
½
NUT, HEX ¼-28
X
%
X 3 /32
NUT, %-32
X
½
X 11 /16
PANEL, FRONT
PLATE, FRONT
PARTS LIST-TYPE 2A60
Tektronix
Part Number
406-101
406-615
358-010
179-458
179-547
200-247
441-333
441-391
131-081
131-126
131-149
376-010
376-014
214-052
214-153
348-004
351-037
210-004
210-011
210-012
210-013
210-046
210-201
210-241
366-038
366-044
366-113
366-058
366-144
366-109
210-406
210-413
210-455
210-494
Use 333-725
387-577
3
