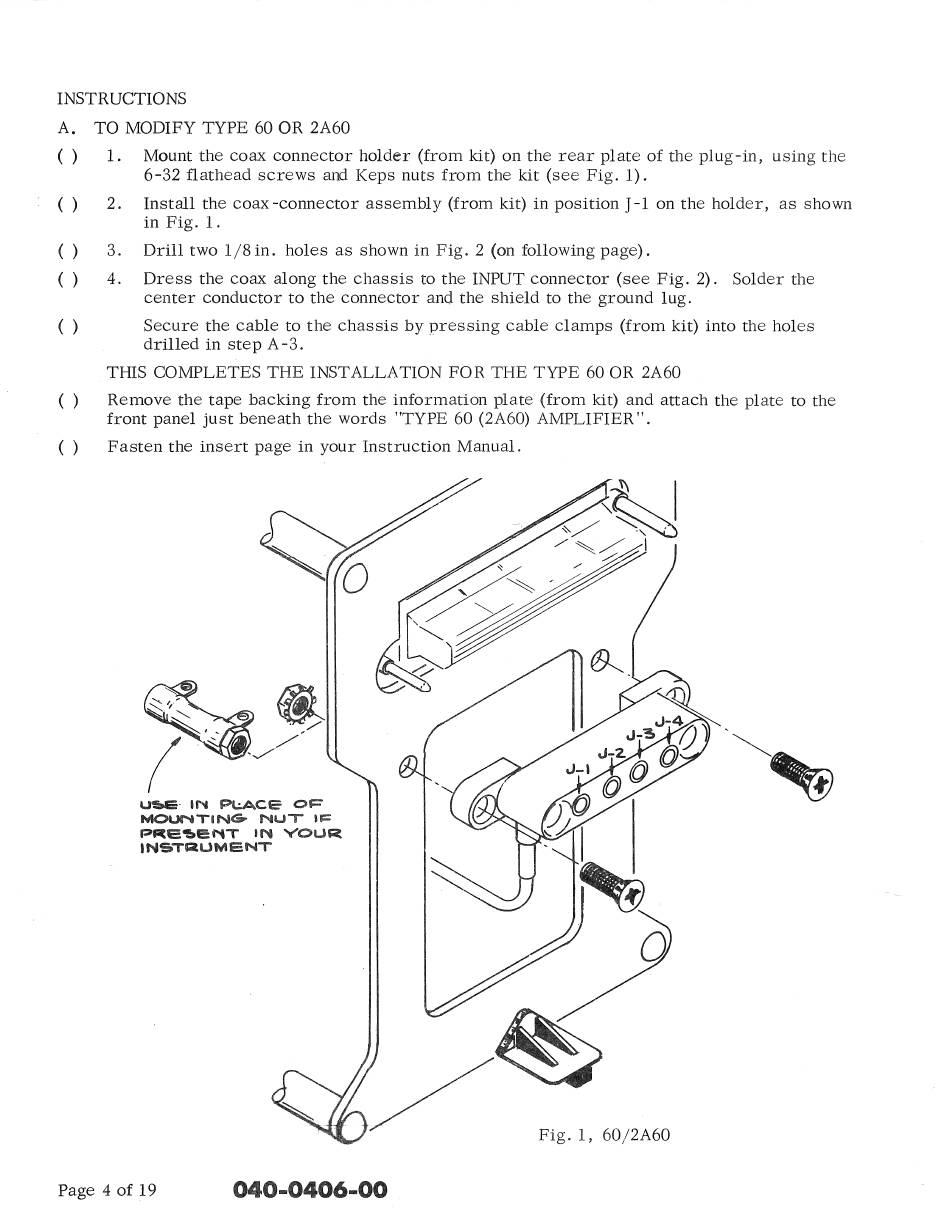

INSTRUCTIONS
A.
TO MODIFY TYPE 60 OR 2A60
( )
1.
Mount the coax connector
holder (from kit) on the rear plate of the plug-in,
using the
6-32 flathead screws
and Keps nuts from the kit (see Fig. 1).
( )
2.
Install the coax -connector
assembly
(from kit) in position
J
-1 on the holder,
as shown
in Fig.
1.
()
3.
Drill two 1/Sin.
holes as shown in Fig. 2 (on following page).
( )
4.
Dress the coax along the chassis
to the INPUT connector
(see Fig. 2).
Solder the
center conductor to the connector
and the shield to the ground lug.
( )
Secure the cable to the chassis
by pressing
cable clamps (from kit) into the holes
drilled in step A -3.
THIS COMPLETES THE INSTALLATION FOR THE TYPE 60 OR 2A60
( )
Remove the tape backing from the information
plate (from kit) and attach the plate to the
front panel just beneath the words "TYPE 60 (2A60) AMPLIFIER".
( )
Fasten the insert page in your Instruction
Manual.
U'l:i,e·
IN
Pl:.ACE
OF=
MO~TING-
NUT
I~
PRE~eMT
IN
YOUR
INSTi:::lUMENT
Page
4
of 19
040-0406
.. 00
Fig. l , 60 /2A60
