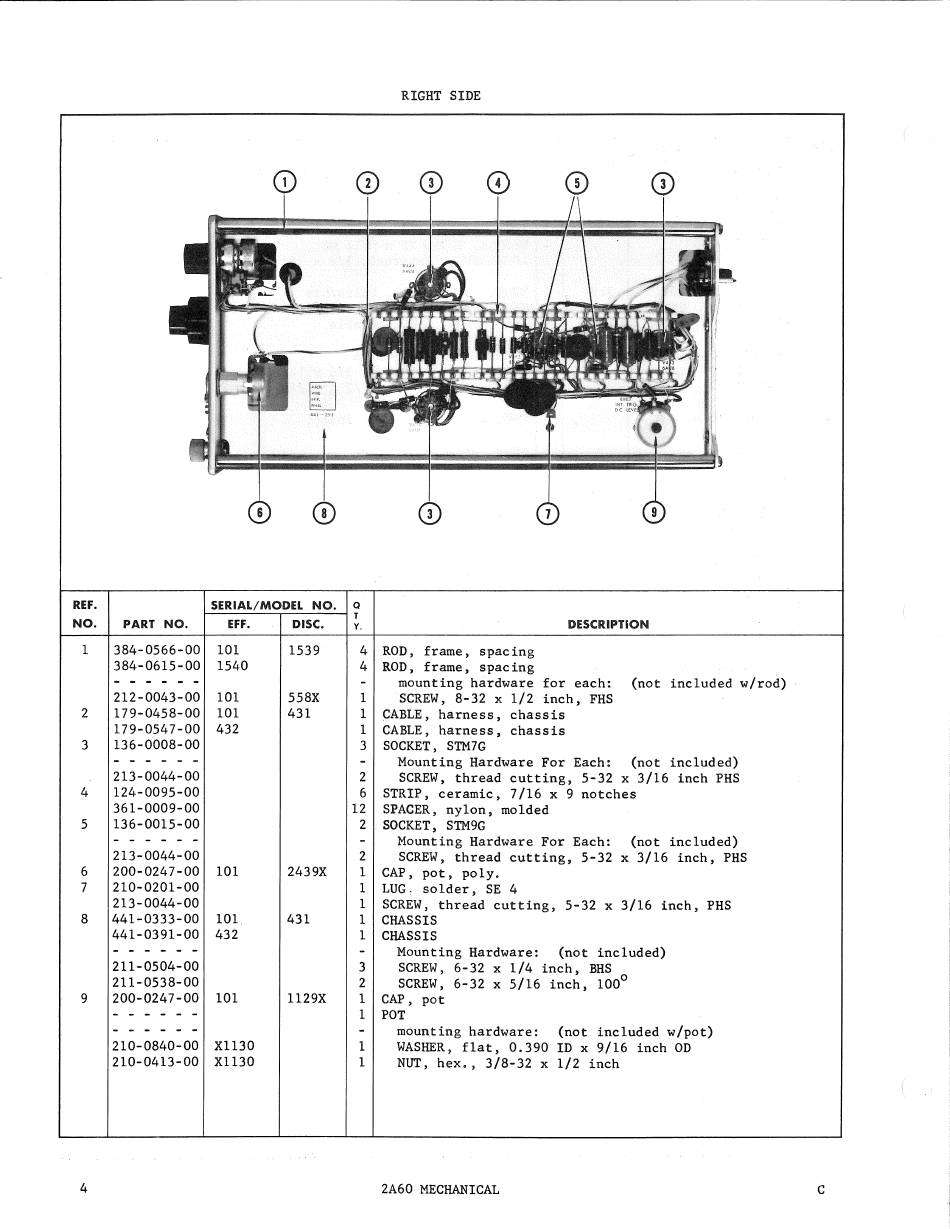

RIGHT SIDE
0
©
CD
G)
REF.
NO.
SERIAL/MODEi. NO.
Q
T
Y.
1
2
3
PART NO. EFI'.
384-0566-00 101
384-0615-00 1540
212-0043-00 101
179-0458-00 101
179-0547-00 432
136-0008-00
213-0044-00
4 124-0095-00
361-0009-00
5 136-0015-00
213-0044-00
6 200-0247-00 101
7 210-0201-00
213-0044-00
8 441-0333-00 101
441-0391-00 432
211-0504-00
211-0538-00
9 200-0247-00 101
4
210-0840-00 Xll30
210-0413-00 X1130
DISC.
1539
558X
431
4 ROD, frame, spacing
4 ROD, frame, spacing
DESCRIPTION
mounting hardware for each: (not included w/rod)
1 SCREW, 8-32 x 1/2 inch, FHS
1 CABLE, harness, chassis
1 CABLE, harness, chassis
3 SOCKET, STM7G
Mounting Hardware For Each: (not included)
2 SCREW, thread cutting, 5-32 x 3/16 inch PHS
6 STRIP, ceramic, 7/16 x 9 notches
12 SPACER, nylon, molded
2 SOCKET, STM9G
Mounting Hardware For Each: (not included)
2 SCREW, thread cutting, 5-32 x 3/16 inch, PHS
2439X 1 CAP, pot, poly.
1 LUG. solder, SE 4
1 SCREW, thread cutting, 5-32 x 3/16 inch, PHS
431 1 CHASSIS
1 CHASSIS
Mounting Hardware: (not included)
3 SCREW, 6-32 x 1/4 inch, BHS
2 SCREW, 6-32 x 5/16 inch, 100°
1129X 1 CAP, pot
1 POT
1
1
mounting hardware: (not included w/pot)
WASHER, flat, 0.390 ID x 9/16 inch OD
NUT, hex., 3/8-32 x 1/2 inch
2A60 MECHANICAL
