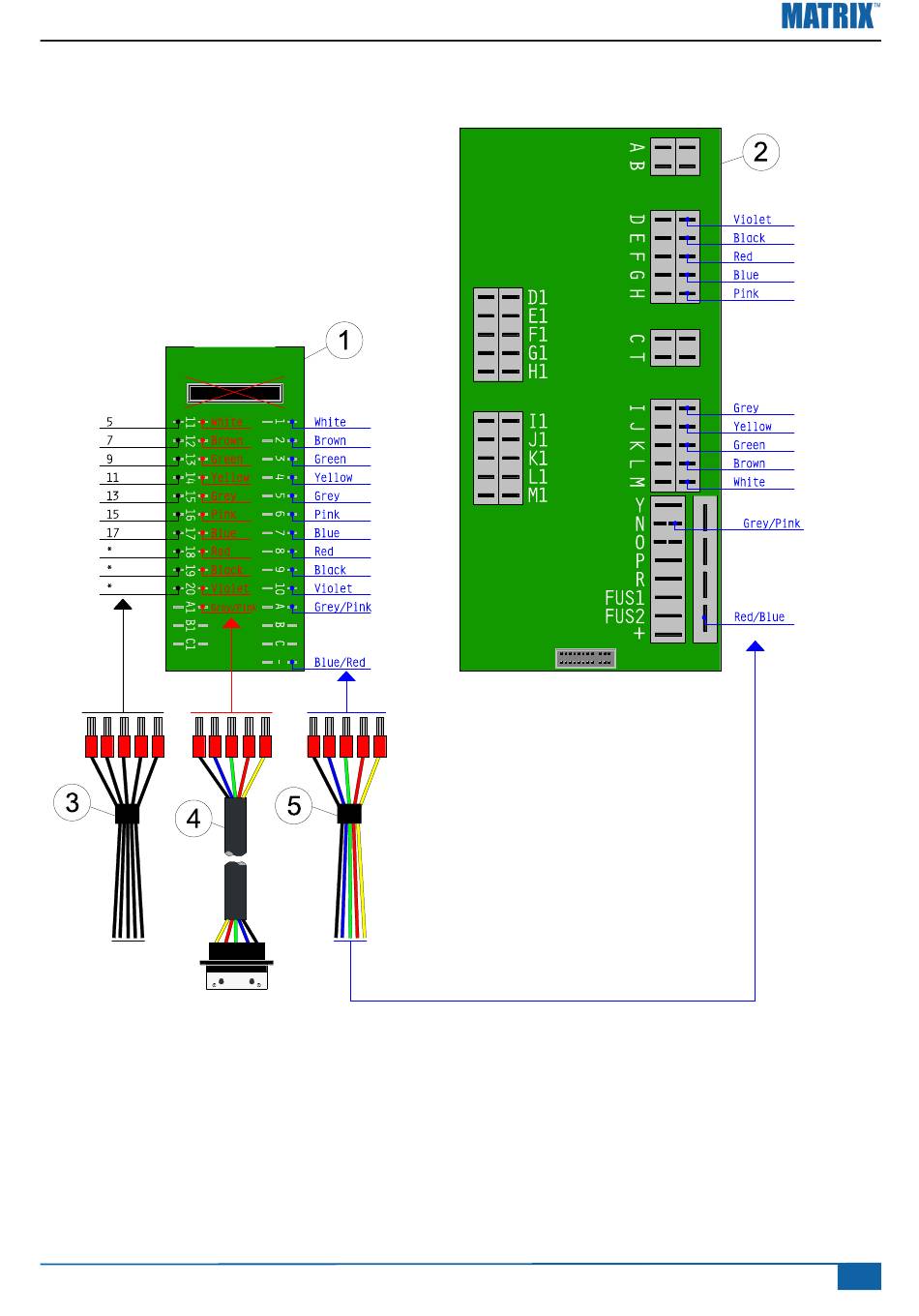

WIRING DIAGRAM
Carte pulve
1. Connect the external connector cable (4) to the interface (1), in the middle row.
2. Disconnect the wires (3) from the "Carte Pulvé" board (2) and connect them to the interface (1).
3. Connect the wires (5) to the interface (1) and to the "Carte Pulve" board (2).
