INSTALLING THE BERTHOUD TELEVOLUX KIT
To get electrical contact with the Sections and the Master switch in the Berthoud TELEVOLUX
Switch Box, it's necessary to install a Berthoud ABSC Interface (See pos. 7 and 8 on the two System
Overview drawings). Before starting the installation, make sure that the power is disconnected.
This is a critical operation and must only be conducted of persons with the
necessary skills. In case the Berthoud TELELUX Switch Box is damaged during
the installation, it's on the buyers sole risk and therefore the buyer is not entitled
to any form for compensation.

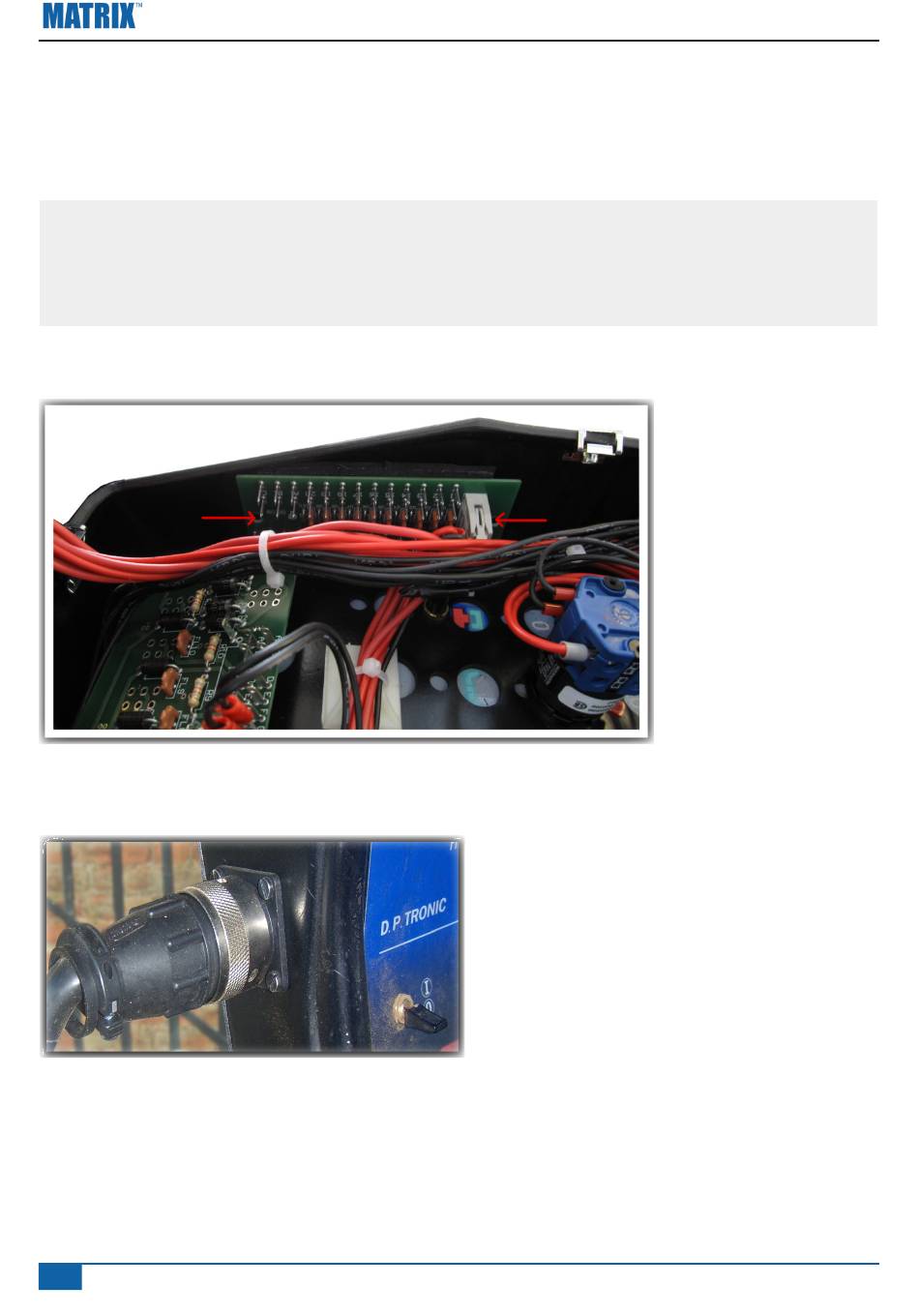

Installing the Interface Circuit board:
It's practical to install the wires on the interface before installing it (See diagram next page).
Installing the Connector:
Connect the Automatic Boom section kit as show on the system overview drawings. The kit includes
all necessary connectors to get electrical contact with the Berthoud TELEVOLUX Switch Box.
8
www.teejet.com
Make a hole in the left part of the plastic
housing and install the round connector. The
Hole should be ø25 mm and fixing holes ø3.2
mm.
Place the interface in
the right part of the box
as shown on the picture.
Drill two ø3.5 mm holes
in the plastic housing
with a distance of 95
mm.
