SYSTEM CHECK

After connecting the power connector, it's time to make a system check. To check the system it's
necessary to have full GPS signal so the vehicle must be placed outside.
Berthoud TELEVOLUX:
• Section switches should be in OFF position when working in Automatic mode.
• The Master switch will control the sprayer and should be ON to enable automatic switching of
the sections.
MATRIX or CL230:
TM
• Turn the Guidance controller on
• Encode the number of sections and the width of each
(Refer to the MATRIX
• Wait for GPS signal
• Set the mode to AUTO
• Drive forward (> 2 km/h)
• Observe that all sections and the master valve open.
• Check that the Master valve closes when the Master switch is set off.
MATRIX or CL230:
TM
• Set the ABSC mode to MANUAL

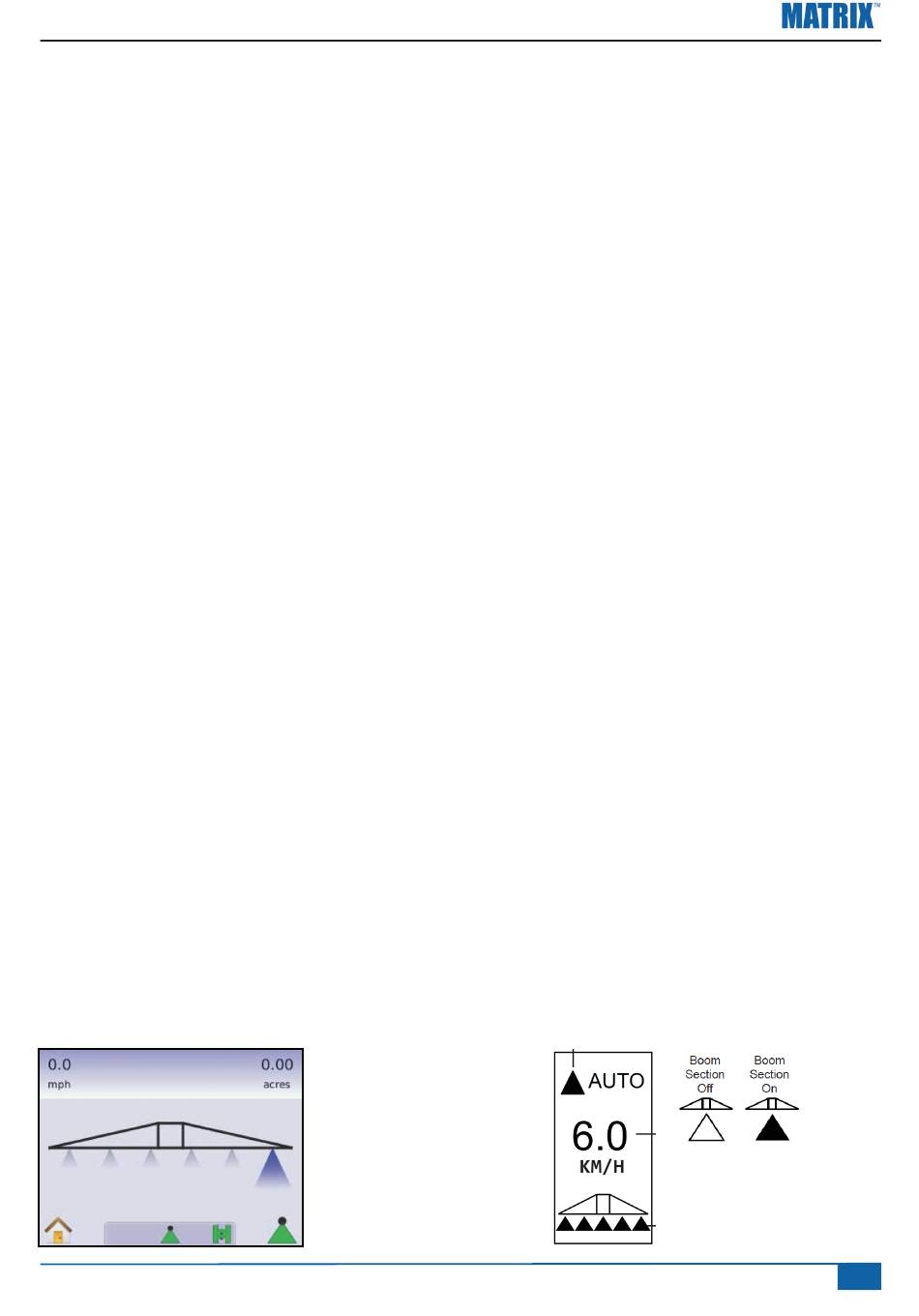

Check in the 'Boom Section Control Screen' (Matrix or CL230) that the section icons turn off and
on according to the valve/switch status.
Berthoud TELEVOLUX:
• Set the section switch's on
• Set the Master switch on
• Observe that all sections and the master valve open.
MATRIX :
TM
Check AUTO mode:
or CL230 user manual)
TM
Check MANUAL mode:
CL230:
