Summary of Contents for dynasonics UFX

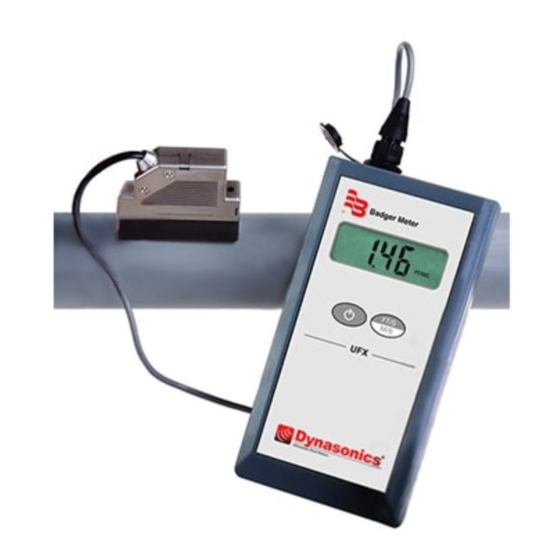

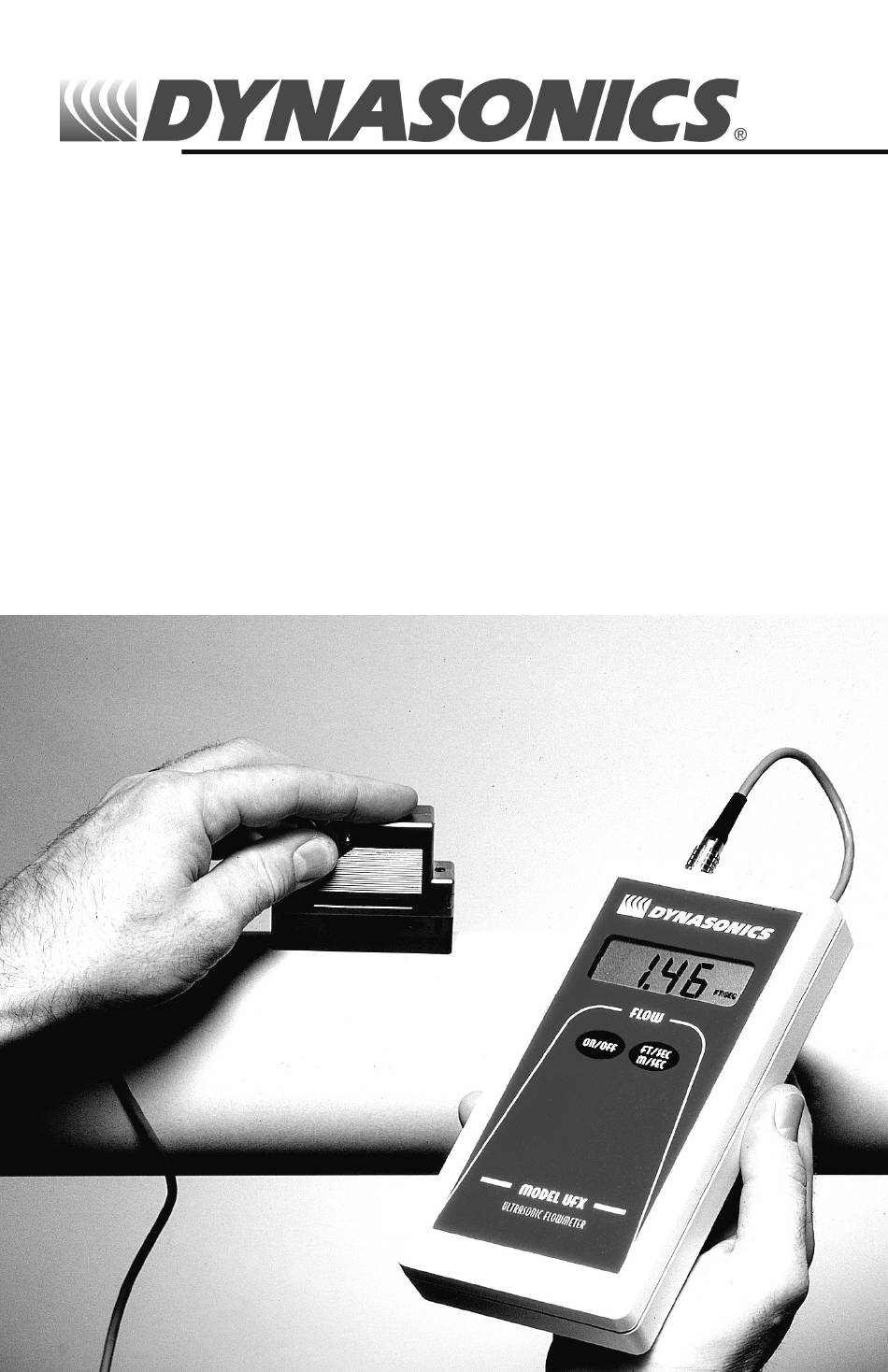

- Page 1 MODEL UFX ULTRASONIC FLOW METER Operating Instructions...
-
Page 3: Table Of Contents
Quick Start Instructions • Introduction • Specifications • Controls and Terminology • Transducer Mounting Locations • Mounting the Transducer • Operating the UFX • Velocity to Volume Conversions • Battery Replacement • Troubleshooting Guide • Velocity Conversion Chart • Warranty •... -
Page 4: Quick Start Instructions
QUICK-START INSTRUCTIONS This manual contains detailed operating instructions for the UFX instrument. The following condensed instructions are provided to assist an experienced operator in basic operation of the instrument. If the operator is unfamiliar with this type of instrument, refer to the detailed explanations located at the corre- sponding letter on pages 8-11. - Page 5 STEP E the flow direction. F. Press the ON/OFF key. Wait at least 30 seconds before recording a read- ing. The UFX will auto- matically turn itself off af- ter 3 minutes. STEP F G. Change units of measure by pressing the FT/SEC -...
-
Page 6: Introduction
Series UFX Phase Shift Flow Meters feature advanced Trans-Phase measuring technology, providing accurate and reliable flow velocity as- sessments in closed piping systems. The UFX utilizes a non-invasive transducer which is hand-held or strapped to the outside of a pipe. -
Page 7: Controls And Terminology
CONTROLS AND TERMINOLOGY Transducer Cable Transducer Plug Transducer Jack Display Keypad Transducer Note: The UFX battery compartment is located on the back of the enclosure. Remove the two upper screws to gain access to the battery compartment. -
Page 8: Transducer Mounting Locations
Selecting the proper location for taking a flow measurement is the single most critical step in the operational procedure. The transducer utilized by the UFX flow meter contains two piezoelectric crystals for transmitting and receiving ultrasonic signals through the wall of a pipe. Select a... -
Page 9: Mounting The Transducer
To ensure an acoustically conductive path between the transducer face and the prepared pipe surface, a coupling compound is employed. Enclosed with the UFX flow meter is a tube of Dow Corning 111 silicone based grease. This grease is adequate for the majority of installations. -
Page 10: Operating The Ufx
30 seconds be taken to ensure reading stability. The UFX can be turned off by pressing the ON/OFF key on the keypad, or the unit will automatically turn off after approximately 3 minutes of operation. -
Page 11: Velocity To Volume Conversions
J. DISPLAY TEST The UFX contains software to verify operation of the individual LCD segments. To run the display test, turn the UFX off. Press and hold the FT/SEC - M/SEC key, then press the ON/OFF key. Release both keys and verify that all segments illustrated in Figure 4 illuminate. -
Page 12: Troubleshooting Guide
• Erroneous Readings Transducer mounted incorrectly. • Another local ultrasonic instrument is operating at approximately the same frequency as the UFX. • Excessive pipe vibration. • Very viscous (thick) liquids will cause the unit to read lower than actual flow. -
Page 13: Velocity Conversion Chart
LIQUID VELOCITY TO VOLUME CONVERSION CHART... -
Page 14: Warranty
Dynasonics’ obligation under this warranty is limited to the repair or replacement of a defective product, at no charge to the end purchase, if the product is inspected by Dynasonics and found to be defective. -
Page 15: Spare Parts And Accessories
Series DUFX Small Pipe Transducer - CE unit DUFX O&M Series DUFX Operations Manual D003-1009-005 UFX Carrying Case SERVICE AND REPAIR When returning equipment, it is necessary for you to contact our service department at (800) 535-3569 or (262) 639-6770 to ob-... - Page 16 TOLL-FREE IN NORTH AMERICA.: TEL: (800) 535-3569 FAX: (800) 732-8354 TEL: (262) 639-6770 FAX: (262) 639-2267 URL: www.dynasonics.com © 2008 Racine Federated Inc. All rights reserved. Printed in the USA Dynasonics is a registered trademark of Racine Federated Inc. UFX O&M REV 7/08...
