dynasonics 902 Series Quick Start Manual

®
U LTRASONIC FLO W M E TE R
Fea t u re s
The system can be field configured to pipe sizes
ranging from 0.25 to 120 inches [6 to 3050 mm]
Non-fouling transducer is immune to build-up of
grease, paraffin and other coating materials
Solid-state measurement never requires
re-calibration and is virtually maintenance-free
A p p l i ca t i o n s
Wastewater sludges
Ground water
Flow surveying
Remote field site flow tests
Advanced Test Equipment Rentals
www.atecorp.com 800-404-ATEC (2832)
Series 902
Portable Enhanced Doppler

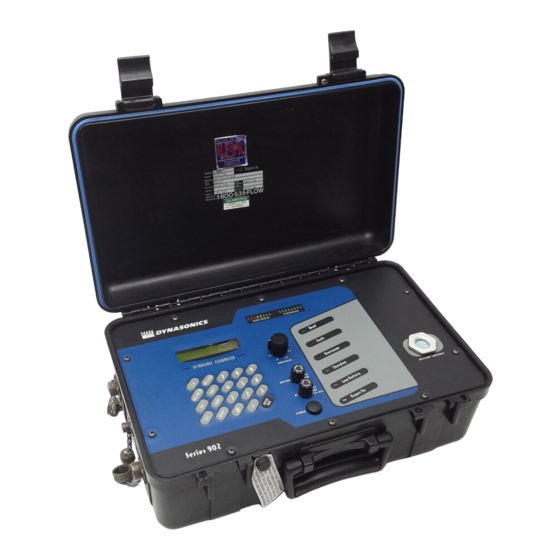

Series 902 Portable Enhanced Ultrasonic Doppler
Flowmeters measure solids-bearing or aerated
liquids in metal or plastic pipe. Proprietary
circuitry allows this instrument to operate with
lower concentrations of suspended solids than
any competitive Doppler flowmeter--expanding
the instrument's range of applications and
reliability. Clamp-on, non-invasive transducers
permit the instrument to be installed in minutes
without interrupting system pressure or flow.
The watertight case contains a rechargeable
battery that can operate the unit continuo u s l y
for 8 hours. The Series 902 transmitter has a
full keypad designed for simple field setup
and application versatility. The two-line, backlit,
alphanumeric display shows instantaneous flow
rate and totalized flows in a variety of user
selectable engineering units.
Operates with relatively clean liquids as well as liquids
with concentrations of suspended solids or aeration
Does not require long straight runs of pipe
Rugged NEMA 4X design permits extended
outdoor and rough service use
Industry standard outputs allow direct interface
to loggers and controls systems
Used as a flow prover to other
flow technologies
Mining recirculate
Pump output verifications
Sewage lifting station monitoring
