Before operating the awning, carefully review the Owner's Manual.
The manual contains important safety information, detailed operating
instructions, common maintenance procedures and other useful
information.
Made of durable, lightweight polyester & vinyl material - the
same material used for tents.
No drilling required
No rafters to install.
T
C
ABLE OF
Introduction ........................................................................................................... 2
Installing the Rail Brackets ................................................................................... 4
Room Setup ........................................................................................................... 5
The Front Panels ........................................................................................... 5
Manual Awnings - Start Here ............................................................... 5
Motorized Awnings - Start Here ........................................................... 6
Hanging the Front Panels .................................................................... 6
Side Panels ................................................................................................... 7
Setting the Pitch .................................................................................. 7
Stake the Room ............................................................................................. 8
Sealing Along the Vehicle Wall ...................................................................... 8
The Strap Hook ................................................................................... 9
Closing the Corners ....................................................................................... 9
Attaching the Skirt .............................................................................................. 10
Crossing the Entry Step............................................................................... 11
Crossing the Door ....................................................................................... 11
Storing the Room ................................................................................................ 12
Room Care ........................................................................................................... 13
Fabric Care .................................................................................................. 13
Carefree Major Product Limited Warranty ......................................................... 14
A R
OOM FOR
ONTENTS
V
V
A
ERTICAL
'
ACATION
R
A
RM
WNINGS
2015 &
ON





















Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VACATION'R and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Carefree of Colorado VACATION'R

Summary of Contents for Carefree of Colorado VACATION'R

  • Page 1: Table Of Contents

    ACATION OOM FOR ERTICAL WNINGS 2015 & Before operating the awning, carefully review the Owner's Manual. The manual contains important safety information, detailed operating instructions, common maintenance procedures and other useful information.  Made of durable, lightweight polyester & vinyl material - the same material used for tents.

  • Page 2: Introduction

    Carefree of Colorado NTRODUCTION From it's beginning in the early 70's, Carefree of Colorado has emerged as the premier manufacturer of quality awnings and accessories for Recreational Vehicles (RVs). Our full line of products can provide the accessories that match your life style;...
  • Page 3 ACATION OMPONENT DENTIFICATION LH Side Extension Front Door RH Side Panel Panel Panel Panel Corner Panel Rail Clamps Ball Bungee Room Bag Wall Seal Skirt Clip Skirt Stakes vac018...

  • Page 4: Installing The Rail Brackets

    Carefree of Colorado NSTALLING THE RACKETS Before setting up the room, it is necessary to attach the rail brackets to the awning rail on the vehicle. These are designed to stay mounted after the first installation but can be removed for awning maintenance.

  • Page 5: Room Setup

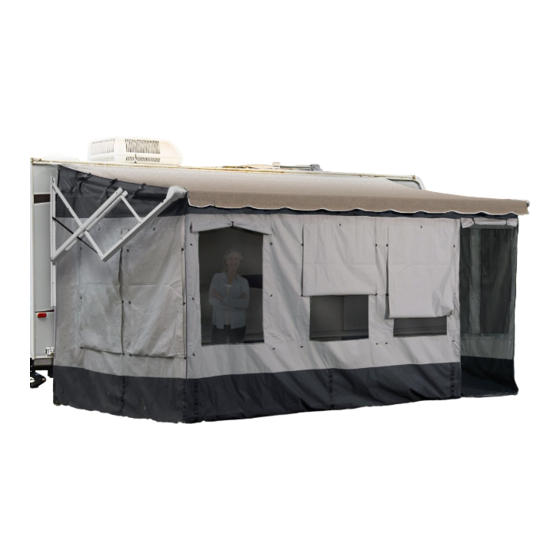

    ACATION ETUP RONT ANELS The front panel consists of a window panel, door panel and extension panel. These panels can be arranged with the door on the right or the left. The extension panel is included to fit the larger size of the fitting range (i.e. 13’ for a 12’to13’ room size) and can be placed on either end or in-between the door and window.

  • Page 6: Motorized Awnings - Start Here

    Carefree of Colorado OTORIZED WNINGS TART Extend the awning out according to the manufacturer's instructions. For Travel'r awnings and Eclipse awnings without Auto Retract:  Hold the switch until the empty slot of the tube aligns with the slot on EXTEND the back of the idler (LH) head.

  • Page 7: Side Panels

    ACATION ANELS Side Panel Bungee Ball Cord Attach Center Straps to Canopy Manual Awning Shown Attach Hook to Typical All Applications Rail Clamp Adjust Strap to Tension Fabric Between Roller and Awning Rail Fold Panel Under Canopy vac021b If not previously done, insert the bungee ball through the grommet located in the front upper corner of the side panel.

  • Page 8: Stake The Room

    Carefree of Colorado TAKE THE At the bottom, fold the room panels inside or outside. Starting at the back of the room, place a stake through the tie down loop and drive the stake into the ground. NOTE: There methods for the stake to grab the loop.

  • Page 9: The Strap Hook

    ACATION Fold Panel Along Vehicle Wall To Bracket Hook Strap to Rail Clamp Pull Strap Through Slot in Fabric Pull Strap Through Slot in Fabric Place Stake Beneath Vehicle and Hook Strap to Stake or Attach Strap to Vehicle Frame To Stake View Inside Room vac023...

  • Page 10: Attaching The Skirt

    Carefree of Colorado TTACHING THE KIRT The skirt panels attach to the vehicle using the skirt clips. The clips can be attached to the vehicle wall by two different methods. NOTE: Some vehicles may be equipped with an awning rail mounted for the skirting.

  • Page 11: Crossing The Entry Step

    ACATION ROSSING THE NTRY If the panel goes across the entry step: Outer Edge Outer Edge of Step of Step With the panel attached to the RV wall, carefully mark the location of Top of Step the top, side edges of the step. Remove the skirt from the RV and lay on a flat clean surface.

  • Page 12: Storing The Room

    Carefree of Colorado TORING THE Remove the stakes and store. Remove the wall seals, fold in thirds and store in bag. Unfasten the canopy clamps, bungees and the strap hooks. For manual awnings: Slide the front panel section and zipper insert out of the roller tube.

  • Page 13: Room Care

    ACATION Maintaining a Carefree Room is easy. Just follow these basic steps:  Always use the room according to the instructions.  Keep the awning fabric and arms clean. ABRIC NOTICE Do not use oil based cleaners or any caustic, granulated, or abrasive type cleaners on your Carefree product.

  • Page 14: Carefree Major Product Limited Warranty

    RODUCT IMITED ARRANTY Carefree of Colorado (hereafter referred to as Carefree) warrants to the first retail Purchaser that the Carefree Product is free of defects in material and workmanship within the terms and conditions as set forth in the warranty statement available online at www.carefreeofcolorado.com.
  • Page 15 ACATION...
  • Page 16 Carefree of Colorado www.carefreeofcolorado.com a Scott Fetzer company 070011-001r2 Printed in USA November, 2018...
