Product Overview .......................................................................................................................... 1
Component Checklist..............................................................................................................................2
Installation ..................................................................................................................................... 3
Mounting the Brackets Using the Sprinter Rail .......................................................................................3
Attaching the Carefree Mounting Rails...........................................................................................4
Mounting the Brackets On a Flat Roof....................................................................................................5
Mounting the Awning ..............................................................................................................................6
Mount Bottom Brackets ..........................................................................................................................7
Switch Installation (motorized awnings only) ..........................................................................................8
Setting the Motor Limits ............................................................................................................... 9
Adjusting the OUT Limit Switch ......................................................................................................9
Adjusting the IN Limit Switch ..........................................................................................................9
Bracket Position Template ......................................................................................................... 10
052978-051r5
I
NSTALLATION
F
REEDOM
M
L
ANUAL
ATERAL
Printed in USA
RM A
A
R
M
RM
OOF
OUNT
M
ANUAL
WNING
B
A
OX
WNING
March, 2010
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Carefree of Colorado FREEDOM RM AWNING
Summary of Contents for Carefree of Colorado FREEDOM RM AWNING
-
Page 1: Table Of Contents
NSTALLATION ANUAL RM A REEDOM WNING ANUAL ATERAL OUNT WNING ABLE OF ONTENTS Product Overview .......................... 1 Component Checklist..........................2 Installation ............................. 3 Mounting the Brackets Using the Sprinter Rail ..................3 Attaching the Carefree Mounting Rails...................4 Mounting the Brackets On a Flat Roof....................5 Mounting the Awning ..........................6 Mount Bottom Brackets ..........................7 Switch Installation (motorized awnings only) ..................8... - Page 2 Carefree of Colorado. Every effort has been made to ensure that the information presented in the document is accurate and complete. However, Carefree of Colorado assumes no liability for errors or for any damages that result from the use of this document.
-
Page 3: Product Overview

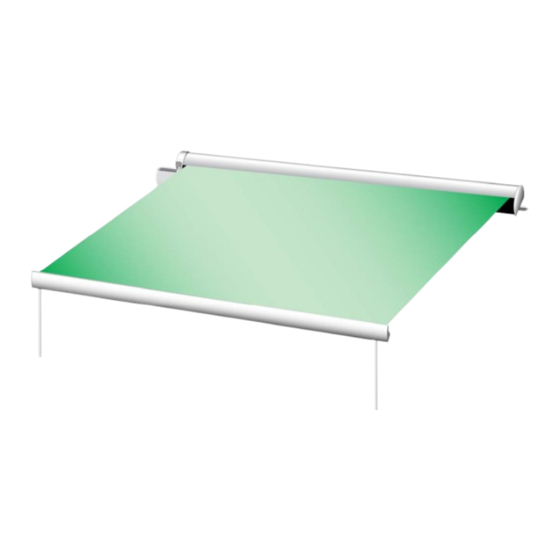

Carefree of Colorado Installation Manual RM P REEDOM ATIO WNING RODUCT VERVIEW The Freedom Awnings are state of the art lateral arm awnings. When retracted, the housing provides protection against the elements while the streamlined styling blends in with the coach sidewall. -
Page 4: Component Checklist
Carefree of Colorado Installation Manual RM P REEDOM ATIO WNING OMPONENT HECKLIST RMF007 I ESCRIPTION Awning Assembly, Complete Bracket Kits: S = Sprinter; F = Flat Roof Mounting Bracket Pad, Mounting Bracket Mounting Rail 1, 2 ... -
Page 5: Installation
Carefree of Colorado Installation Manual RM P REEDOM ATIO WNING NSTALLATION Edge of : Some OEM's may furnish the mounting brackets. PECIAL 19.5 cm [7.75”] 3m awning Case Install the brackets according to the bracket design. To best 37.5 cm [14.75”] 3.5m &... -
Page 6: Attaching The Carefree Mounting Rails
Carefree of Colorado Installation Manual RM P REEDOM ATIO WNING 8mm [5/16”] Hole Awning (2 plcs per Bracket) 2.5m & 10-11cm 5-8cm [4”-4.25”] [2”-3”] 3.5m 10-33cm 5-31cm [4”-13”] [2”-12”] 30.5-58cm 23-56cm [12”-23”] [9”-22”] 2.5cm [1”] Awning Width Align Inside Edge of Endcap with... -
Page 7: Mounting The Brackets On A Flat Roof
Carefree of Colorado Installation Manual RM P REEDOM ATIO WNING OUNTING THE RACKETS 1. Determine the location of the awning. 2. To aid in positioning the brackets, a full size template is furnished on the last page of this manual. -
Page 8: Mounting The Awning
Carefree of Colorado Installation Manual RM P REEDOM ATIO WNING Drill Holes thru Bracket, Roof & Support Frame Awning (2 plcs in Front, 2 plcs in Rear of Bracket) 2.5m & 10-11cm 5-8cm [4”-4.25”] [2”-3”] 3.5m 10-33cm 5-31cm [4”-13”] [2”-12”] 30.5-58cm... -
Page 9: Mount Bottom Brackets
Carefree of Colorado Installation Manual RM P REEDOM ATIO WNING OUNT OTTOM RACKETS The patio awning is equipped with vertical supports. These supports extend from the leading edge of the awning to a bracket mounted on the wall or may be used in a carport position on the ground. -
Page 10: Switch Installation (Motorized Awnings Only)
Carefree of Colorado Installation Manual RM P REEDOM ATIO WNING WITCH NSTALLATION MOTORIZED AWNINGS ONLY CAUTION LWAYS DISCONNECT THE BATTERY AND ELECTRICAL SOURCES BEFORE WORKING WITH THE ELECTRICAL WIRING Determine the location for the switch. There is approximately 180cm [70"] of wire from the awning motor. If the distance to the switch exceeds the furnished wire, the installer must furnish 18 awg wire and butt splice to the motor wires. -
Page 11: Setting The Motor Limits
Carefree of Colorado Installation Manual RM P REEDOM ATIO WNING Run a 16 awg wire from the power distribution panel (auxiliary battery circuit) or equivalent. The circuit should be protected by a 15-amp fuse. Run a wire to system ground. -
Page 12: Bracket Position Template
Carefree of Colorado Installation Manual RM P REEDOM ATIO WNING RACKET OSITION EMPLATE Use this template when mounting brackets without a Sprinter rail. RMF012 052978-051r5...
