Summary of Contents for Carefree of Colorado SL WINDOW AWNING
- Page 1 AREFREE SL W INDOW WNING ANUAL INDOW WNING Installation and Operations Manual 052533-001r3 Printed in USA October, 2010 “More information https://www.caravansplus.com.au"...
- Page 2 ROPRIETARY TATEMENT The SL Window Awning is a product of Carefree of Colorado, located in Broomfield, Colorado, USA. The information contained in or disclosed in this document is considered proprietary to Carefree of Colorado. Every effort has been made to ensure that the information presented in the document is accurate and complete.

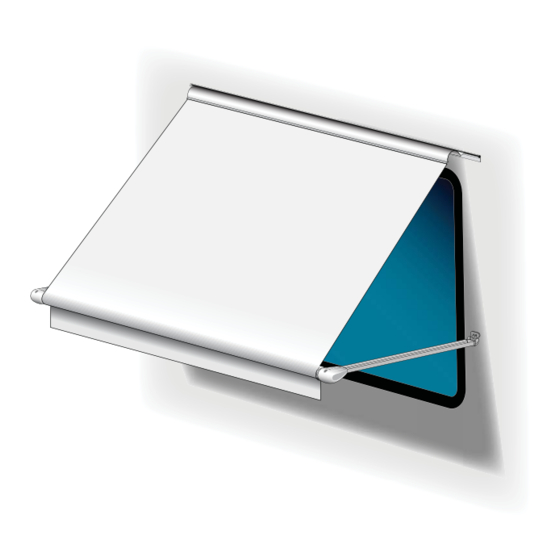

- Page 3 WNING NTRODUCTION RODUCT VERVIEW The SL Window awning is a manual extend/retract awning styled to match Carefree's Eclipse Patio Awning. Window awnings are available in 6 inch increments from 3 feet to 7 feet and in 12 inch increments from 7 feet to 15 feet.
- Page 4 NSTALLATION NSTALLING THE WNING Figure 1 on page 1 shows the general installation layout for the SL Window Awning. 1. Park the vehicle on a flat surface and level the unit. 2. Thoroughly clean the vehicle walls where the arms...
- Page 5 SL W AREFREE OF OLORADO INDOW WNING (Refer to Figure 5 on page 3) 4. (refer to Detail A) With one person holding each arm, a third person should thread the polyrod (the plastic rod on the edge of the fabric) into the awning rail. Carefully move across the vehicle, gently pulling the fabric into the rail until the awning is centered over the window.
- Page 6 SL W AREFREE OF OLORADO INDOW WNING PERATION Pull Strap To Lower the Awning: Using the pull cane, hook or grasp the pull strap and pull the awning down. Hook the loop of the pull strap onto the catch. Catch Tip: During windy conditions, the strap may vibrate and "hum".
- Page 7 IMITED ARRANTY Carefree of Colorado (hereafter referred to as Carefree) warrants to the first retail Purchaser that the Carefree Product is free of defects in material and workmanship within the terms and conditions as set forth in the warranty statement available online at www.carefreeofcolorado.com. Carefree’s obligation under this warranty is limited to the repair or replacement, at Carefree’s option, of any defective component with new...
- Page 8 SL W AREFREE OF OLORADO INDOW WNING 052533-001r3 “More information https://www.caravansplus.com.au"...
