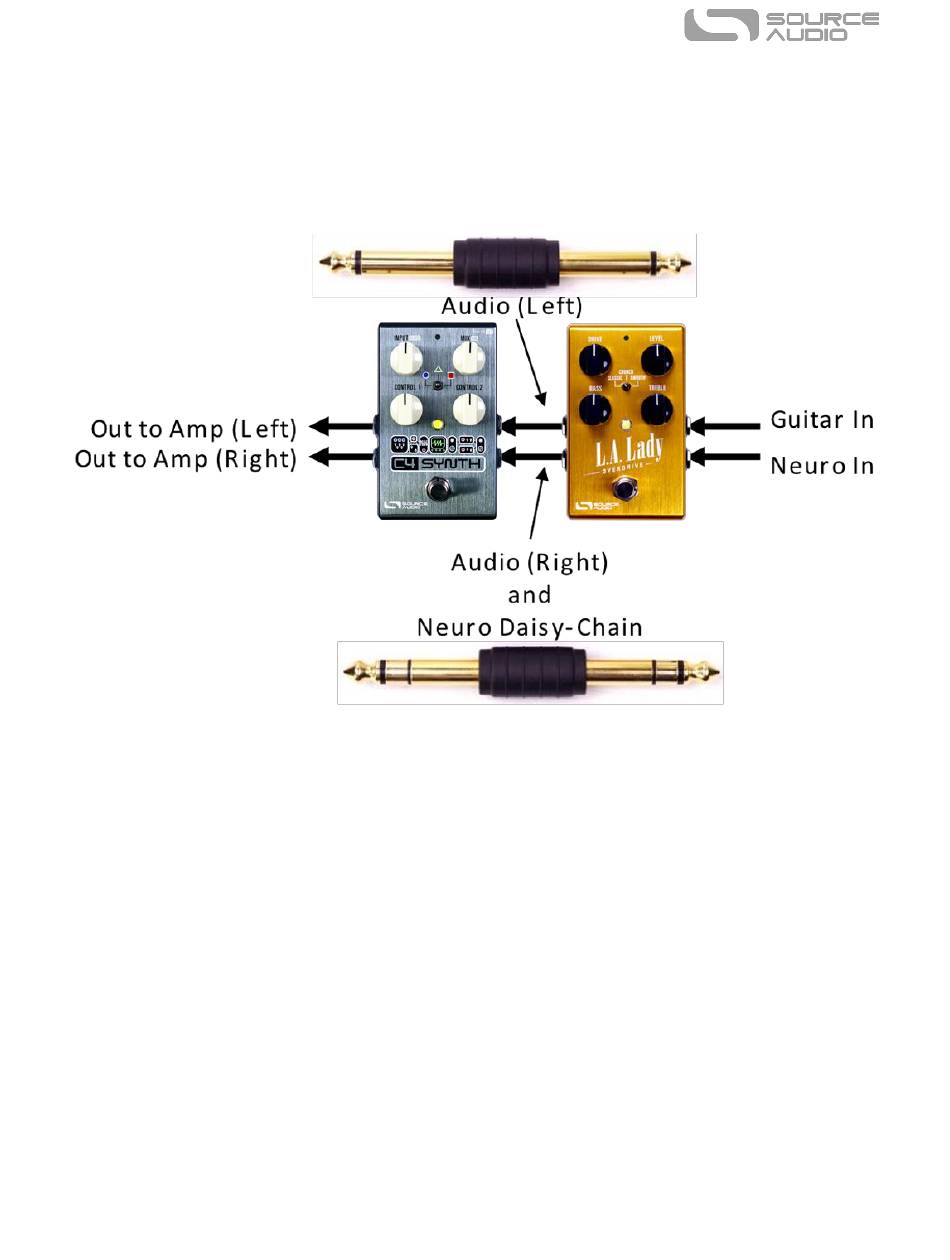

Mono-To-Stereo Audio Path with Neuro Daisy-Chain
In the case of a signal path that splits a mono input to stereo outputs, the Neuro data can be input to
the first effect directly from the mobile device and then carried on to consecutive effects via TRS
cables. The audio signal is carried on the same cable.

MIDI Through the USB Port or Neuro Hub

The C4 responds to MIDI Program Change (PC) and Continuous Controller (CC) messages via its mini
USB port.
The C4 Synth's USB port is plug-and-play ready for Digital Audio Workstation (DAW) software on
Windows and Mac computers. The C4 uses class-compliant drivers, so no special drivers are needed.
Just power up the pedal and connect it to the computer using a USB cable. The computer should
automatically recognize the C4, which will be identified as "Source Audio One Series" in the
operating system.
A MIDI host device with USB will also control the C4. The C4 responds to most devices, but some
don't generate enough power for the C4 to recognize them as a MIDI host (the MIDI Baby and
qCONNECT are two examples). If your C4 is not responding to your MIDI host device, try checking the
USB-MIDI Skip Power Check box in the Neuro Editor's Hardware Options menu.
SA249 C4 Synth User Guide 41
