Presets

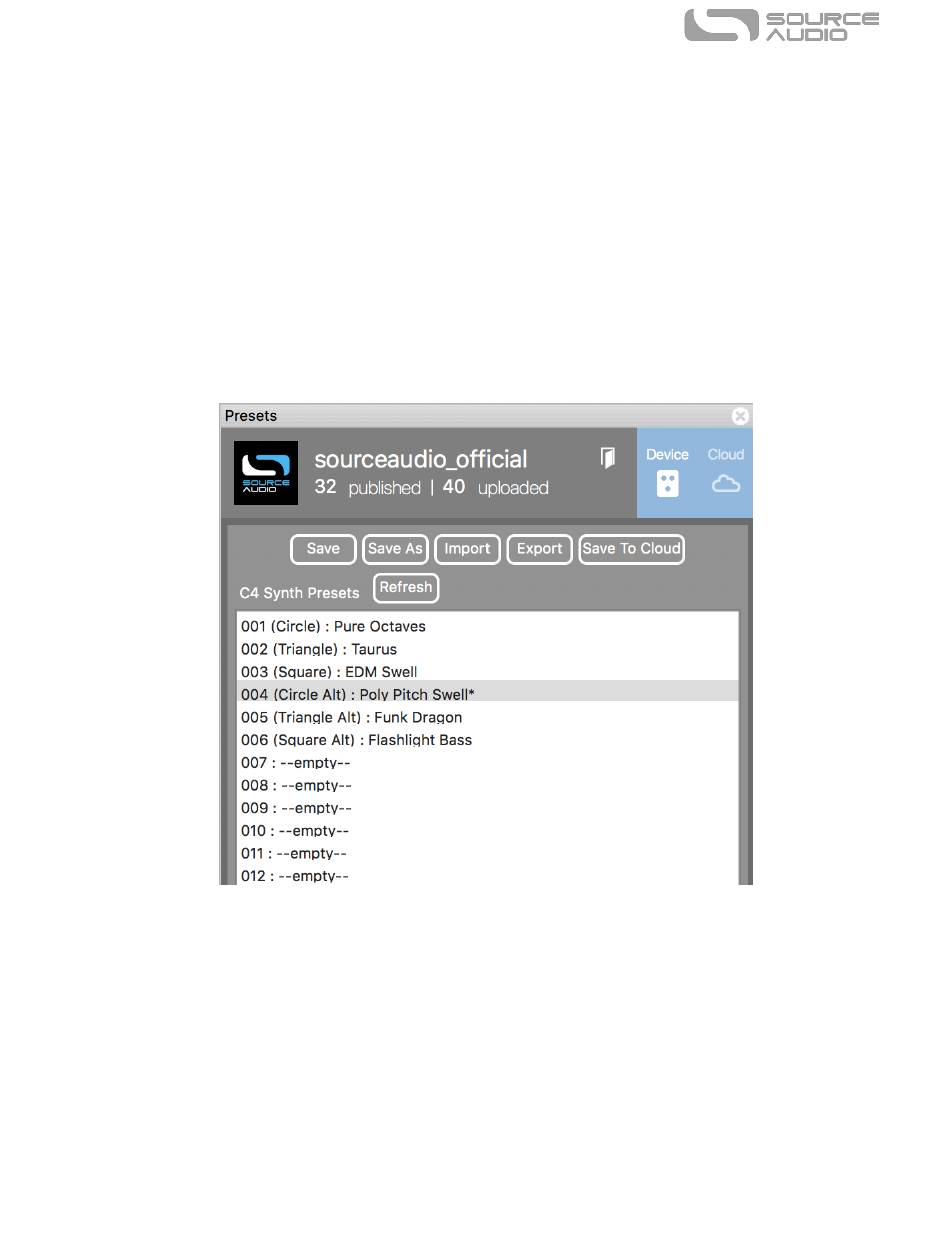

The Presets section, located on the right side of the C4's Neuro Desktop interface, displays the
location of all presets stored directly to the pedal. The Presets section is also where users can browse
the Published Presets of other C4 Synth users. There are two views available in the Presets section -
click on the icon labeled Device or Cloud (located in the blue square on the top right corner) to open
each view respectively.
Device
Clicking the Device icon on the top-right corner of the Presets section opens the Device interface. This
view displays the presets saved to all 128 possible locations on your C4 pedal. This view also contains
buttons that save, export, import, and publish presets:
•
SAVE Button: If you have made edits to a pre-existing preset, use the Save button to update the
preset without changing its name or preset position.
•
SAVE AS Button: After creating a new preset hit the Save As button and you will be prompted to
name it and select its preset number.
•
IMPORT Button: Uploads saved .pre files to your Neuro Desktop Editor. Upon clicking the
IMPORT button you will be asked to find the .pre file. Simply go to your Neuro presets folder,
select the desired file and upload.
•
EXPORT Button: Use the Export button to save a preset on your computer. Presets are saved
as .pre files and stored anywhere on your computer (we recommend creating a dedicated folder
