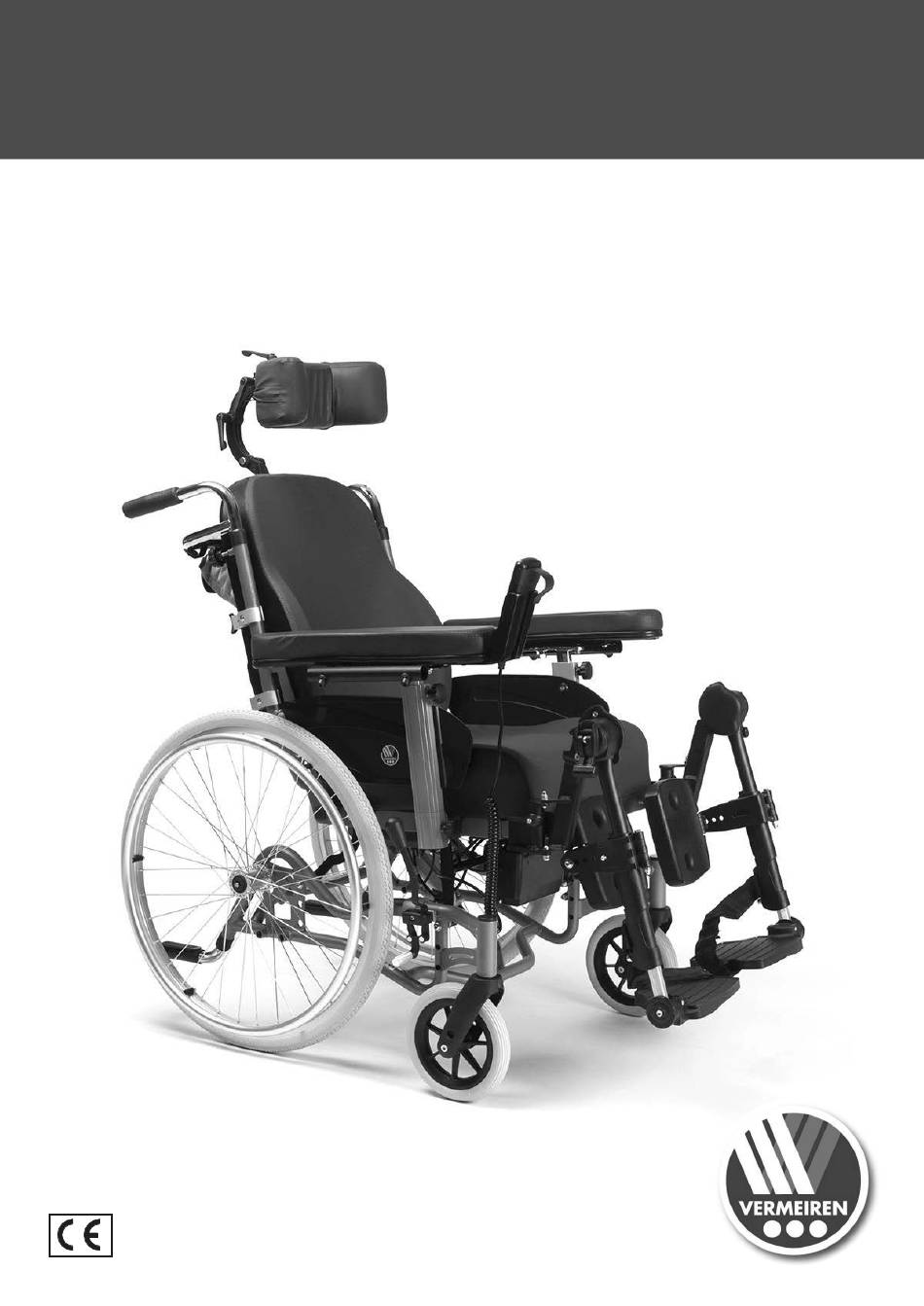

  • Page 1 VERMEIREN Inovys II E U S E R M A N U A L...

  • Page 3: Table Of Contents

    Inovys II-E 2019-02 Content Content Preface ......................2 Your product ..................3 1.1 Description ..................... 3 1.2 Accessories ..................... 4 Before use ................... 5 2.1 Intended use ..................5 2.2 General safety instructions ..............5 2.3 Symbols on the wheelchair ..............6 2.4 Transport and (dis)assembly ..............

  • Page 4: Preface

    Vermeiren. Thank you for your trust in the products of Vermeiren. To support you on the use of this wheelchair and its operating options, this manual is offered. Please read it carefully; it will help you to get familiar with the operation, capabilities and limitations of your wheelchair.

  • Page 5: Your Product

    Inovys II-E 2019-02 Your product Your product Description This Inovys II-E wheelchair is easy to operate and can be used indoors as well as outdoors. It is foldable which makes it very compact to store. The wheelchair is available in multiple sizes and is easily expandable with optional parts to enhance user’s comfort.

  • Page 6: Accessories

    Inovys II-E 2019-02 Your product 18. Handset holder 19. Seat 20. Battery 21. Motor 22. Side panel (2x) 23. Push bar 24. Tip cap (2x) 25. Location of identification plate Important parts, continued Accessories Following accessories are available for the Inovys II-E: •...

  • Page 7: Before Use

    This wheelchair is not intended to be used as a seat in a motorized vehicle. • Only use accessories and spare parts approved by Vermeiren. Please read all technical details and limits of your wheelchair in §7. General safety instructions...

  • Page 8: Symbols On The Wheelchair

    Inovys II-E 2019-02 Before use Symbols on the wheelchair The symbols in following list are applicable to your wheelchair. Symbols can be found in the relevant ISO standard (ISO 7000, ISO 7001 and IEC 417). Maximum weight of the user in kg Outdoor/indoor use (battery and power adapter excluded) For indoor use only (battery and power adapter) Maximum safe slope in °...
  • Page 9 Inovys II-E 2019-02 Before use 2.4.3 Transport by vehicle Risk of injuries WARNING • Do NOT use your wheelchair as a seat in a vehicle, see symbol. • Never use the same safety belt for passenger and wheelchair. 1. Use the handset to return your wheelchair to sitting position, see §3.6. 2.
  • Page 10 Inovys II-E 2019-02 Before use • Place the wheelchair with four wheels • Mount the front of the motor to the on the ground. backrest frame with the fastener pin • Fold the backrest frame (34) open. (33) and lock its brace. •...
  • Page 11 Inovys II-E 2019-02 Before use • Hold the leg rest (5) sideways and hang • Swing the footplate (6) downwards. • Repeat for the second footplate. it in the footrest support (39). Make sure that the leg rest hole (44) fits over the lower support part and that the leg rest pin (38) is inserted in the top support.
  • Page 12 Inovys II-E 2019-02 Before use 2.4.5 Disassembly Risk of injuries or damage CAUTION • Make sure that your fingers, clothes, buckles won’t get entrapped during disassembly. • Always keep the swing range of the footrest in mind to prevent bystanders from being injured or objects from being damaged.
  • Page 13 Inovys II-E 2019-02 Before use • (If applicable) demount the headrest • Loosen the two upper star buttons (36) (1): of the backrest by hand. • Pull the backrest upwards until it is Loosen the star knob (42) of the headrest suppport and remove it.

  • Page 14: First Use And Storage

    Inovys II-E 2019-02 Before use 2.4.6 (Dis)Assembling rear wheels (only for 22”/24”): For transport purposes, it might be necessary to (dis)assemble the rear wheels. Removing the rear wheels: 1. Press and hold the button (43) while sliding the wheel axle out of the axle bushy. 2.

  • Page 15: Using Your Wheelchair

    Inovys II-E 2019-02 Using your wheelchair Using your wheelchair Risk of injuries WARNING • First read the previous chapters and inform yourself about the intended use. Do NOT use your wheelchair unless you have read and fully understood all instructions. •...

  • Page 16: Drum Brakes (Only For 16" Fixed Wheels)

    Inovys II-E 2019-02 Using your wheelchair Drum brakes (only for 16” fixed wheels) Risk of injuries CAUTION • Make sure that the wheelchair is on a flat horizontal surface before releasing the brakes. • Never release both brakes simultaneously. • To park or stop on a slope, use the parking brakes after coming to a halt.

  • Page 17: Comfort Adjustments

    Inovys II-E 2019-02 Using your wheelchair Sitting in the wheelchair 1. Sit down on the seat with your lower back against the backrest. 2. Reinstall the armrest and/or leg rest, if removed. 3. Turn the leg rests back to the front, fold down the footplates and put your feet on the footplates.
  • Page 18 Inovys II-E 2019-02 Using your wheelchair The push handles (16) and push bar (23) are connected and can be adjusted in 7 different height positions: 1. Loosen both star knobs (31) on the handle supports and remove them. 2. Adjust the height of both push handles simultaneously by sliding them up/down in the supports.

  • Page 19: Riding

    Inovys II-E 2019-02 Using your wheelchair Riding Depending on your medical condition and type of wheelchair, you can ride the wheelchair yourself or have it pushed by an attendant. Risk of entrapment CAUTION • Prevent your fingers from being caught by the wheel spokes. •...
  • Page 20 Risk of injuries caused by tipping over CAUTION • Only use ramps approved by Vermeiren and do not exceed their maximum load. • Make sure that the wheelchair does not touch the ground or ramp due to the inclination of the wheelchair.
  • Page 21 Inovys II-E 2019-02 Using your wheelchair 3.5.5 Using stairs Risk of injuries caused by tipping over CAUTION • Stairs should always be negotiated with the help of two attendants. • Never try to use stairs that are not appropriate for wheelchairs. To use the stairs while sitting in your wheelchair, the following instructions should be followed: 1.
  • Page 22 Inovys II-E 2019-02 Using your wheelchair Medium kerbs (up or down) These should be taken backwards with one attendant: 1. The attendant reverses the wheelchair so that rear wheels approach the kerb first (G / H). 2. Going down: Lean forward (G) to move your centre of gravity to the front.

  • Page 23: Using The Handset

    Inovys II-E 2019-02 Using your wheelchair Using the handset Risk of injuries or damage CAUTION • Only a capable user or his/her authorized and trained staff are allowed to operate the handset. • Be aware that the stability decreases when the wheelchair is moved from sitting upright to inclined position.

  • Page 24: Battery Status And Charging

    Inovys II-E 2019-02 Using your wheelchair Battery status and charging WARNING Risk of injuries and damage due to fire • Only use the power adapter delivered with the wheelchair. The use of any other adapter may be dangerous (fire hazard). •...
  • Page 25 Inovys II-E 2019-02 Using your wheelchair Table 1: Code of battery indicator Indication code Meaning GREEN, continuously ON Battery is connected to power supply and is charging normally (battery capacity between 70 and 100%). • Keep the battery connected to the power supply until fully charged. GREEN, blinking fast;...
  • Page 26 Inovys II-E 2019-02 Using your wheelchair Location of connection point Depending on the battery condition, the battery needs to be charged for minimal 10 hours up to and more than 24 hours, when discharged below 25% capacity. Charging for a longer period won’t harm the battery. The charging process can be stopped or started any time by following the instructions above.

  • Page 27: Maintenance

    Risk of injuries and damage CAUTION Repairs and replacements may only be undertaken by trained persons and only genuine replacement parts of Vermeiren should be used. The last page of this manual contains a registration form for the specialist dealer to record each service.

  • Page 28: Instructions Of Maintenance

    Inovys II-E 2019-02 Maintenance If stored Make sure that your wheelchair is stored dry to prevent mould from growing and the upholstery from being damaged. Instructions of maintenance 4.2.1 Wheels and tyres Proper working of the brakes depends on the state of the tyres, that can change due to wear and contamination (water, oil, mud, …).

  • Page 29: Expected Lifespan

    Inovys II-E 2019-02 Maintenance The following symptoms may indicate a serious problem. Therefore, always contact your specialist dealer if you spot any of the following deviations: • Strange sound; • Frayed/damaged wiring harnesses; • Cracked or broken connectors; • Wheelchair is powered, but operation of the handset gives no result, see §3.7. Expected lifespan The average lifespan of your wheelchair is 5 years.

  • Page 30: Technical Specifications

    Take these details into account during use. The values are no longer applicable if your wheelchair has been modified, damaged or suffers from severe wear. Table 2: Technical specifications Brand Vermeiren Address Vermeirenplein 1/15, B-2920 Kalmthout, Belgium Type Wheelchair...
  • Page 31 Inovys II-E 2019-02 Technical specifications Description Dimensions per configuration Diameter Rear wheels 16" (T30) 22" 24" with drum brakes Hand rim diameter 535 mm Effective seat width 400 mm 450 mm 500 mm Overall width (depends on the seat width) 630 mm 680 mm 730 mm...
  • Page 34 Service registration form Service registration form This product (name): …………………………………….. was inspected (I), serviced (S), repaired (R) or disinfected (D): By (stamp): By (stamp): By (stamp): Kind of work: I / S / R / D Kind of work: I / S / R / D Kind of work: I / S / R / D Date: Date:...
  • Page 36 No part of this manual may be reproduced in any form what so ever (print, photocopy, microfilm or any other process) without written permission of the publisher, or processed, duplicated or distributed by using electronic systems. © Vermeiren Group 2019...
