Vermeiren Inovys II-E Instruction Manual

Hide thumbs Also See for Inovys II-E:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Installation Manual
V RM IR N

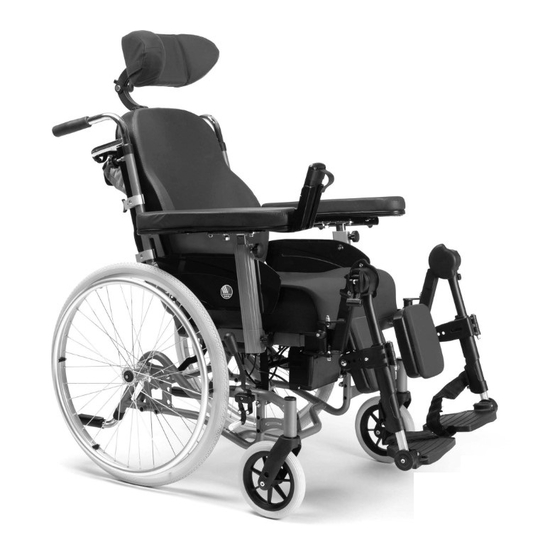

Inovys II-E
I N S T R U C T I O N
M
N U
L

Advertisement

Table of Contents
loading

Related Manuals for Vermeiren Inovys II-E

Summary of Contents for Vermeiren Inovys II-E

  • Page 1 V RM IR N Inovys II-E I N S T R U C T I O N...
  • Page 2 No part of this manual may be reproduced in any form what so ever (print, photocopy, microfilm or any other process) without written permission of the publisher, or processed, duplicated or distributed by using electronic systems. © Vermeiren GROUP 2017...

  • Page 3: Table Of Contents

    Inovys II-E 2017-02 Contents Preface ............................2     Product description..................... 3     Intended Use ........................ 3     Technical specifications ....................4     Drawing ........................5     Accessories ........................6     Explanation of symbols ....................6  ...

  • Page 4: Preface

    First of all we want to thank you for putting your trust in us by selecting one of our wheelchairs. The Vermeiren wheelchairs are the result of many years of research and experience. During the development, special attention was given to the ease of use and the serviceability of the wheelchair.

  • Page 5: Product Description

    When used on mats, carpeted floors or loose floor coverings, the floor covering can get damaged. Use only Vermeiren approved accessories. The manufacturer is not liable for damage caused by the lack of or improper service or as a result of not following instructions from this manual.

  • Page 6: Technical Specifications

    Inovys II-E 2017-02 Technical specifications Technical terms below are valid for the wheelchair in standard settings. If other footrests / armrests or other accessories are used, the tabulated values will change. Make Vermeiren Address Vermeirenplein 1/15, B-2920 Kalmthout Type Manual wheelchair...

  • Page 7: Drawing

    Storage and use humidity We reserve the right to introduce technical changes. Measurement tolerance ± 15 mm / 1,5 kg / ° Table 1: Technical specifications Inovys II-E The wheelchair complies to the requirements set up in: ISO 7176-8: Requirements and test methods for static, impact and fatigue strengths.

  • Page 8: Accessories

    Inovys II-E 2017-02 Accessories The following accessories are available for the Inovys II-E:  Wooden table (B12)  Headrest (L55, L58)  Personal safety belt (B58)  Horizontal wedge (B22)  Hemiplegic armrests (B66) Contact your specialist dealer about other accessories. He will gladly advise you.

  • Page 9: Use

    Inovys II-E 2017-02 Stairs may only be negotiated when aided by another person. If furnishings like drive-on, ramps or lifts are available, use them. When moving on the public highway, you are subject to the rules of the road. When driving your wheelchair, you should not be under the influence of alcohol or medicine as in the case of driving other vehicles.

  • Page 10: Carrying The Wheelchair

    Inovys II-E 2017-02 To reduce the effect of electromagnetic sources of interference, please read the following warnings: WARNING: The wheelchair might disturb the operation of devices in its environment that emit electromagnetic field. WARNING: The driving performance of the wheelchair can be influenced by electromagnetic fields (e.g.

  • Page 11: Mounting The Rear Wheels (Only For Quick Release 22", 24" Rear Wheels)

    Inovys II-E 2017-02 Mounting the rear wheels (only for quick release 22", 24" rear wheels)  1. Take the rear wheel and push on button 2. Keep the button pushed in and mount the rear wheels axle till it stops.

  • Page 12: Fold Away Leg Rest

    Inovys II-E 2017-02 The angle or inclination of the footrest can be easily adjusted as follow:  1. Loosen the lever on the side of the footrest. 2. Adjust the angle (range 100° - 190°: step less) of the footrest to a comfortable position.

  • Page 13: Mounting Or Removing Of Armrests

    Inovys II-E 2017-02 To apply the brakes: Push the brake levers  forward till you feel a distinctive click. CAUTION: Risk of unintended movement – Make sure the wheelchair is on a flat horizontal surface before releasing the brakes. Never release both brakes simultaneously.

  • Page 14: Pushing Handgrips

    Inovys II-E 2017-02 Pushing handgrips Risk of injury - Make sure that the star knobs  are properly CAUTION: tightened. CAUTION: Risk of tipping over - Use only the last indentation of the pushing handgrip tube for the maximum height adjustment.

  • Page 15: Transfer In And Out The Wheelchair

    Inovys II-E 2017-02 2.11 Transfer in and out the wheelchair CAUTION: In case you cannot perform the transfer in a safe manner, ask someone to assist you. CAUTION: Risk of tipping over of the wheelchair – Do not stand on the foot plates.

  • Page 16: Moving On Slopes

    Inovys II-E 2017-02 2.15 Moving on slopes WARNING: Control your speed – Moving on slopes as slow as possible. WARNING: Consider the capacities of your attendant – If your attendant does not have enough force to control the wheelchair, put on the brakes.

  • Page 17: Taking Off The Wheels (Only For Quick Release 22", 24" Rear Wheels)

    Inovys II-E 2017-02 2.16.3 Taking of stairs WARNING: Risk of tipping over – Taking of stairs shall always be done with 2 attendants. WARNING: Risk of injury – Lifting the wheelchair while the patient is seated in the wheelchair is forbidden! Always keep the rear wheels on the ground/stairs.

  • Page 18: Backrest Inclination / Seat Inclination

    Inovys II-E 2017-02 2.18 Backrest inclination / seat inclination WARNING: Risk of tipping over – Be aware that the stability decrease when the backrest is adjusted backwards. WARNING: Risk of injury – Check the brakes are engaged before changing the inclination of the wheelchair.

  • Page 19: Operating Handset

    Inovys II-E 2017-02 2.19 Operating handset WARNING: Risk of injury – The wheelchair may not be operated by small children, frail or infirmed persons without supervision or nearby small children. Only authorized staff who have been trained in using the wheelchair must use and operate the chair.

  • Page 20: Cable Connections

    Inovys II-E 2017-02 2.21 Cable connections 1 = Junction box 2 = Control box 3 = Handset 4 = Power supply / transformer 5 = Motor seat 6 = Motor backrest 7 = Supply socket SPARE First connect all the cables to the junction box , control box  and in the last connect the power cable to the supply socket.

  • Page 21: Installation And Adjustment

    The Vermeiren multi-functional wheelchairs Inovys II-E has been designed entirely for your comfort. This wheelchair can be adjusted to individual requirements as explained below. To find a service facility or specialist dealer near you, contact the nearest Vermeiren facility. A list of Vermeiren facilities can be found on the last page.

  • Page 22: Mounting Backrest

    Risk of tipping over - When the driving wheels are adjusted, the position of the wheels are altered. The seat height of the Inovys II-E multiposition wheelchair is adjustable in 3 positions in steps of 35 mm. The seat height can be adjusted by moving the front tube Ⓐ, attachment plate motor Ⓑ...
  • Page 23 The stability or manoeuvrability of the wheelchair can be adjusted over 50 mm. STEERING WHEELS In the standard model, the INOVYS II-E is delivered with two 8” steering wheels (200 mm x 50 mm or 200 mm x 35 mm).

  • Page 24: Adjust The Seat Depth

    Inovys II-E 2017-02 Adjust the seat depth WARNING: Risk of injury – Make sure that all screws are secure and properly tightened. The seat depth can be adjusted in 3 positions (steps 20 mm). Adjust the seat depth according following rules:...

  • Page 25: Adjust The Backrest

    Inovys II-E 2017-02 Adjust the backrest The height of the backrest can be adjusted over a distance of 35 mm (step less) according following instructions: 1. Loosen the bolts  of the four brackets. 2. Adjust the brackets of the backrest to the desired height.

  • Page 26: Adjusting Of The Footrests

    Inovys II-E 2017-02 Adjusting of the footrests 3.8.1 Length of the footrests CAUTION: Risk of damage – Avoid that the footrests make any contact with the ground. Keep a minimum distance from 60 mm above the ground. Adjust the length of the footrests as follow: ...
  • Page 27 Inovys II-E 2017-02 Adjusting the depth:  on plate Ⓐ. 1. Loosen bolt 2. Adjust the depth of the leg rest to a comfortable position (7 different positions in steps of 15 mm).  3. Retighten the bolt Adjusting the width: ...

  • Page 28: Adjusting The Armrests

    Inovys II-E 2017-02 3.8.4 Adjusting the width of footrest WARNING: Risk of injury – Make sure that all screws are secure and properly tightened before using the footrests. WARNING: Risk of injury – Make sure that the footrests are positioned symmetrically from the seat.

  • Page 29: Adjusting Of The Tip Cap

    Loosen the spring button Ⓐ. Check that the spring button Ⓐ is securely fixated. Maintenance For the maintenance manual of the wheelchairs refer to the Vermeiren website: www.vermeiren.com. Page 27 ...
  • Page 30 Dealer´s stamp: Dealer´s stamp: Date: Date: Dealer´s stamp: Dealer´s stamp: Date: Date: Dealer´s stamp: Dealer´s stamp: Date: Date:  For service checklists an additional technical information, please see our specialist dealers nearest to you. More information on our website at: www.vermeiren.com.
  • Page 32 Fax: +41(0)33 335 14 67 website: www.vermeiren.it website: www.vermeiren.ch e-mail: info@vermeiren.it e-mail: info@vermeiren.ch Poland Spain / Portugal Vermeiren Polska Sp. z o.o Vermeiren Iberica, S.L. Carratera de Cartellà, Km 0,5 Łączna PL-55-100 Trzebnica Sant Gregori Parc Industrial Edifici A Tel: +48(0)71 387 42 00...
