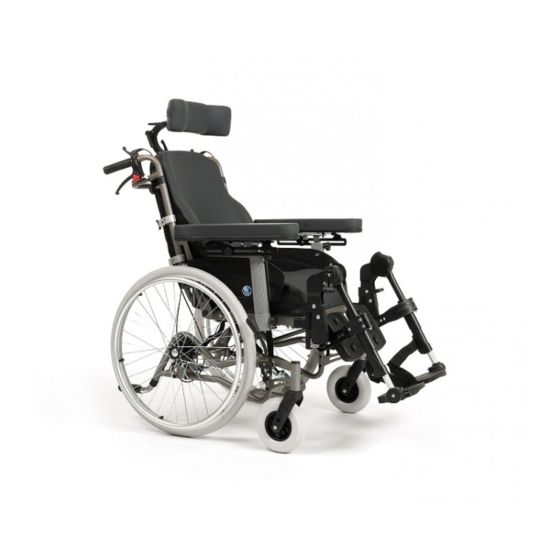

Vermeiren Inovys II User Manual
  1. Manuals
  2. Brands
  3. Vermeiren Manuals
  4. Wheelchair
  5. Inovys II
  6. User manual

Vermeiren Inovys II User Manual

Hide thumbs Also See for Inovys II:
Table of Contents

Advertisement

Quick Links

Download this manual
User manual
M A N U E L
D ' U T I L I S A T I O N
G E B R U I K S A A N W I J Z I N G
G E B R A U C H S A N W E I S U N G
M A N U A L E D I I S T R U Z I O N I
M A N U A L
D E
I N S T R U C C I O N E S
I N S T R U K C J A
O B S Ł U G I
N Á V O D
K
O B S L U Z E
Inovys II

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Inovys II and is the answer not in the manual?

Questions and answers

Related Manuals for Vermeiren Inovys II

Summary of Contents for Vermeiren Inovys II

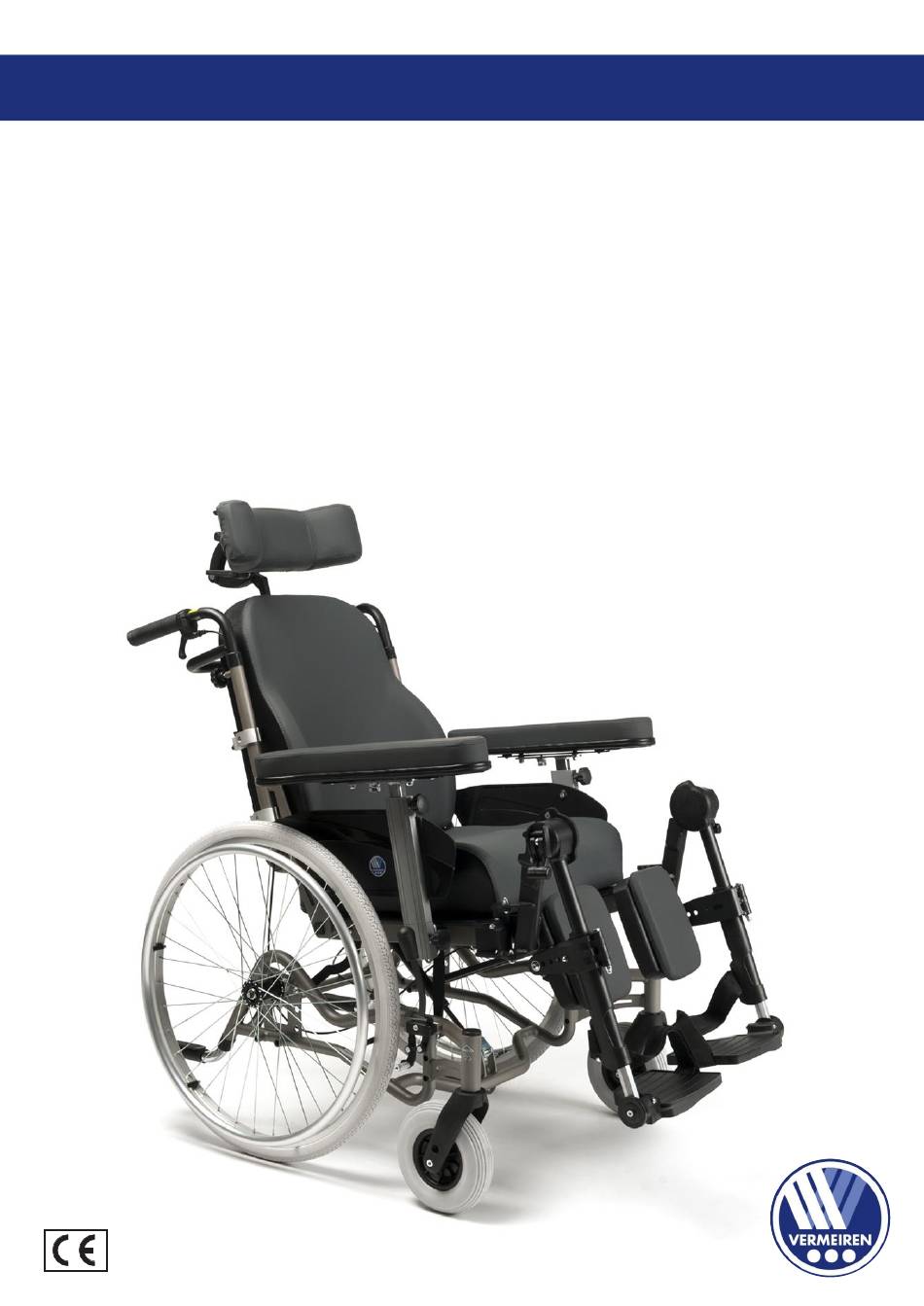

  • Page 1 I N S T R U C C I O N E S I N S T R U K C J A O B S Ł U G I N Á V O D O B S L U Z E Inovys II...

  • Page 3: Table Of Contents

    Inovys II 2022-03 Content Content Preface........................2 Your product ....................3 Description ...................... 3 Accessories ....................4 Before use ..................... 5 Intended use ....................5 General safety instructions ................5 Symbols on the wheelchair ................5 Transport and (dis)assembly ................6 First use and storage ..................

  • Page 4: Preface

    Vermeiren. Thank you for your trust in the products of Vermeiren. To support you on the use of this wheelchair and its operating options, this manual is offered. Please read it carefully; it will help you to get familiar with the operation, capabilities and limitations of your wheelchair.

  • Page 5: Your Product

    Your product Description This Inovys II wheelchair is easy to operate and can be used indoors as well as outdoors. It is foldable which makes it very compact to store. The wheelchair is available in multiple sizes and is easily expandable with optional parts to enhance user’s comfort.

  • Page 6: Accessories

    18. Push bar 19. Tip cap (2x) 20. Location of identification plate Important parts, continued Figure 2 Accessories Following accessories are available for the Inovys II: • Wooden table (B12) • Headrest (L55, L58) • Personal safety belt (B58) •...

  • Page 7: Before Use

    Be aware that your wheelchair may interfere with some types of anti-theft systems, depending on the settings used. This may cause the shop's alarm to go off. In case a serious incident has occurred involving your product, notify Vermeiren or your specialist dealer as well as the competent authority in your country.

  • Page 8: Transport And (Dis)Assembly

    Inovys II 2022-03 Before use Outdoor/indoor use (battery and power adapter excluded) For indoor use only (battery and power adapter) Maximum safe slope in ° (degrees). Not intended to be used as seat in a motor vehicle Type designation Transport and (dis)assembly 2.4.1 Moving out of the way...
  • Page 9 Inovys II 2022-03 Content Steps to secure the wheelchair in a motor vehicle: 1. Check that the vehicle is equipped with a suitable wheelchair tie down and occupant-restraint system, conform ISO 10542. 2. Check that the components of the wheelchair tie down and occupant restraint system are not frayed, contaminated, damaged or broken.
  • Page 10 • Always keep the swing range of the footrest in mind to prevent bystanders from being injured or objects from being damaged. • Before use, always make sure that all assembled parts have been firmly secured. 24” 16” Inovys II base frame with 16” and 24” wheels - disassembled parts Figure 5...
  • Page 11 Inovys II 2022-03 Content • Place the wheelchair with four wheels on • Mount the front of the spring to the the ground. backrest frame with the fastener pin (33) • Fold the backrest frame (34) open. and lock its brace.
  • Page 12 Inovys II 2022-03 Before use • Hold the leg rest (5) sideways and hang it • Swing the footplate (6) downwards. • Repeat for the second footplate. in the footrest support (39). Make sure that the leg rest hole (44) fits over the lower support part and that the leg rest pin (38) is inserted in the top support.
  • Page 13 Inovys II 2022-03 Content • Apply both parking brakes by operating • Close the calf rest (8) and turn the calf rest the brake lever (10), see §3.1. support (40) outwards. • Repeat this for the other calf rest. • Fold both footplates (6) upwards.
  • Page 14 Inovys II 2022-03 Before use • (If applicable) demount the headrest (1): • Loosen the two upper star buttons (36) of Loosen the star knob (42) of the the backrest by hand. • Pull the backrest upwards until it is headrest suppport and remove it.

  • Page 15: First Use And Storage

    Inovys II 2022-03 Content 4. Repeat this for the other wheel. Make sure that both wheels are firmly secured. First use and storage Risk of battery damage CAUTION • Make sure that your wheelchair is stored dry to prevent mould to grow and damage the upholstery.

  • Page 16: Using Your Wheelchair

    Inovys II 2022-03 Using your wheelchair Using your wheelchair WARNING Risk of injuries • First read the previous chapters and inform yourself about the intended use. Do NOT use your wheelchair unless you have read and fully understood all instructions.

  • Page 17: Moving To/From Wheelchair

    Inovys II 2022-03 Content To operate the drum brakes: 1. Pull the brake levers (60) in a squeeze motion. 2. Each brake lever (60) can be blocked by pushing the lock lever (61) down with your finger. 3. Release the brake levers (60).
  • Page 18 Inovys II 2022-03 Using your wheelchair 3.4.1 Backrest and seat inclination CAUTION Risk of injuries or damage • Be aware that the stability decreases when the wheelchair is moved from sitting upright to inclined position. • Apply the parking brakes before adjusting the backrest and seat inclination.
  • Page 19 Inovys II 2022-03 Content 3.4.3 Push handles / push bar height CAUTION Risk of injuries Always use the available adjustment holes on the push handle. Never exceed the maximum height adjustment. The push handles (16) and push bar (23) are connected and can be adjusted in 7 different height positions: 1.

  • Page 20: Riding

    Inovys II 2022-03 Using your wheelchair Riding Depending on your medical condition and type of wheelchair, you can ride the wheelchair yourself or have it pushed by an attendant. CAUTION Risk of entrapment • Prevent your fingers from being caught by the wheel spokes.
  • Page 21 Risk of injuries caused by tipping over • Only use ramps approved by Vermeiren and do not exceed their maximum load. • Make sure that the wheelchair does not touch the ground or ramp due to the inclination of the wheelchair.
  • Page 22 Inovys II 2022-03 Using your wheelchair Small kerbs (up or down) These can be taken forward (E / F) with one attendant: 1. The attendant moves the wheelchair forward approaching the kerb. Make sure the footplates won’t touch the kerbs.

  • Page 23: Maintenance

    Risk of injuries and damage Repairs and replacements may only be undertaken by trained persons and only genuine replacement parts of Vermeiren should be used. The last page of this manual contains a registration form for the specialist dealer to record each service.

  • Page 24: Troubleshooting

    Inovys II 2022-03 Maintenance 4.2.2 Cleaning Risk of damage by moisture CAUTION • Never use a hose or high-pressure cleaner to clean the wheelchair. Wipe all rigid parts of the wheelchair with a damp cloth (not drenched). If necessary, use a mild soap, suitable for varnishes and synthetics.

  • Page 25: Technical Specifications

    Inovys II 2022-03 Content Technical specifications The technical details below are only valid for this wheelchair, at standard settings and optimal ambient conditions. Take these details into account during use. The values are no longer applicable if your wheelchair has been modified, damaged or suffers from severe wear.
  • Page 26 Inovys II 2022-03 Technical specifications Description Dimensions per configuration Diameter Rear wheels 16" (T30) 22" 24" with drum brakes Hand rim diameter 535 mm Footplate width (minimum – maximum) 44-46 mm 48-50 mm 48-50 mm Diameter steering wheels 200 mm...
  • Page 27 Service registration form Service registration form This product (name): …………………………………….. was inspected (I), serviced (S), repaired (R) or disinfected (D): By (stamp): By (stamp): By (stamp): Kind of work: I / S / R / D Kind of work: I / S / R / D Kind of work: I / S / R / D Date: Date:...
  • Page 28 Vermeiren GROUP Vermeirenplein 1 / 15 2920 Kalmthout website: www.vermeiren.com Instructions for specialist dealer This instruction manual is part and parcel of the product and must accompany every product sold. Version: E, 2022-03 Basic UDI: 5415174 122103Inovys II N9 All rights reserved, including translation.
