Roger Access Control System
MCT80M-BLE Operating Manual
Product version: 1.0
Firmware version: 1.0.2.97 or newer
Document version: Rev. A

Advertisement

Table of Contents
loading

Related Manuals for Roger MCT80M-BLE

Summary of Contents for Roger MCT80M-BLE

  • Page 1 Roger Access Control System MCT80M-BLE Operating Manual Product version: 1.0 Firmware version: 1.0.2.97 or newer Document version: Rev. A...

  • Page 2: Design And Application

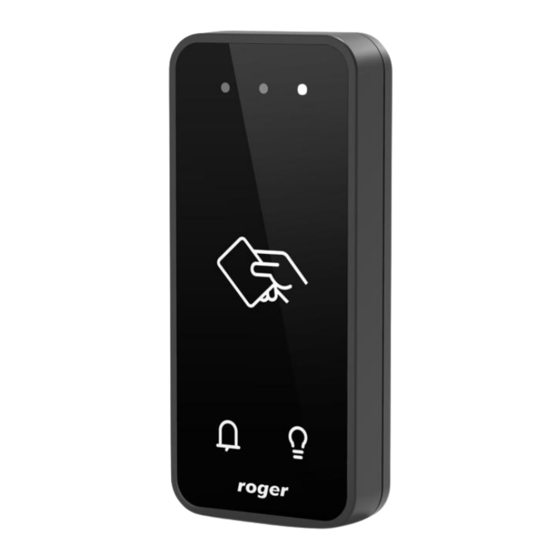

    1. D ESIGN AND APPLICATION The MCT80M-BLE is an access terminal dedicated to RACS 5 system. Terminal enables identification of users by 13.56 MHz MIFARE® Ultralight/Classic/DESFire/PLUS cards and by use of smartphone with NFC (Near Field Communication) or BLE (Bluetooth Low Energy) technology. In case of Bluetooth identification the reading range can reach up to 10 meters while other methods offer a few centimetres reading range.
  • Page 3 MCT80M-BLE Operating Manual.doc 2019-03-06 Fig. 1 MCT80M-BLE supply from dedicated power supply unit Fig. 2 MCT80M-BLE supply from MC16 access controller RS485 bus The communication method with MC16 access controller is provided with RS485 bus which can encompass up to 16 devices of RACS 5 system, each with unique address in range of 100-115. The bus topology can be freely arranged as star, tree or any combination of them except for loop.

  • Page 4: Function Keys

    MCT80M-BLE Operating Manual.doc 2019-03-06 Function keys The terminal is equipped with two touch function keys. Various functions can be assigned to these keys within high level configuration (VISO) e.g. Set T&A Mode, Register Guard Tour Event, Set Automation Node On, etc. Within low level configuration (RogerVDM) of the terminal it is possible configure if the terminal distinguishes short and long key pressings.

  • Page 5: Installation

    Bluetooth additionally verify if the parameter BLE activated is enabled. Install Roger Mobile Key (RMK) app on mobile device and configure the same parameters as in the terminal. Create key (authentication factor) in RMK defining its type and number, then create the same authentication factor in VISO software (fig.
  • Page 6 MCT80M-BLE Operating Manual.doc 2019-03-06 Fig. 5 Enclosure disassembly Fig. 6 Internal side of the front panel and back panel Installation guidelines  The terminal should be mounted on a vertical structure (wall) away from sources of heat and moisture. ...

  • Page 7: Operation Scenario

    3. O PERATION SCENARIO The MCT80M-BLE terminal when connected to MC16 access controller can be at the same time used for access control, Time&Attendance and to control external devices with function keys. The example of connection diagram for such scenario is shown in fig. 7 where the terminal’s power supply line and RS485 bus are connected directly to the controller.
  • Page 8 BLE authentication factor class Parameter defines acceptable type of keys (authentication factors) created in Roger Mobile Key app for Bluetooth (BLE) communication. UCE means lower security and quicker identification while REK means higher security and slower identification. It is necessary to apply classes in RMK which are acceptable for terminal.
  • Page 9 MCT80M-BLE Operating Manual.doc 2019-03-06 LED SYSTEM flash after card Parameter enables short flash of LED SYSTEM (orange) when card is read read. Range: [0]: No, [1]: Yes. Default value: [0]: Yes. LED SYSTEM flash after key Parameter enables short flash of LED SYSTEM (orange) when key is press pressed.
  • Page 10 0-31 and 0-14 for sectors 32-39. Default value: 0. Key type Parameter defines key type used to access sector with PCN. Range: [0]: A, [1]: B, [2]: Roger. Default value: [0]: A. Parameter defines 6 bytes (12 HEX digits) key for accessing sector where PCN is stored.

  • Page 11: Manual Addressing

    MCT80M-BLE Operating Manual.doc 2019-03-06 Sector type Parameter defines sector type with programmable number (PCN). If the option [0]:None is selected then card returned number (RCN) will include only CSN and PCN will be discarded. Range: [0]: None, [1]: Desfire file. Default value: [0]: None.

  • Page 12: High Level Configuration (Viso)

    The purpose of high level configuration is to define logical functioning of the terminal which communicates with the MC16 access controller and it depends on applied scenario of operation. The example of access control system configuration is given in AN006 application notes which is available at www.roger.pl. 5. F IRMWARE UPDATE The update requires connection of reader to computer with RUD-1 interface (fig.

  • Page 13: Ordering Information

    RDERING INFORMATION Table 6. Ordering information MCT80M-BLE MIFARE DESFire/Plus access terminal; keypad; 4 function keys; colour display; on-board I/Os; RS485; Ethernet RUD-1 Portable USB-RS485 communication interface dedicated to ROGER access control devices 8. P RODUCT HISTORY Table 7. Product history Version...
