- Page 1 Roger Access Control System MCT62E Operating Manual Product version: 1.0 Firmware version: 1.1.18 or newer Document version: Rev. C...
-
Page 2: Design And Application

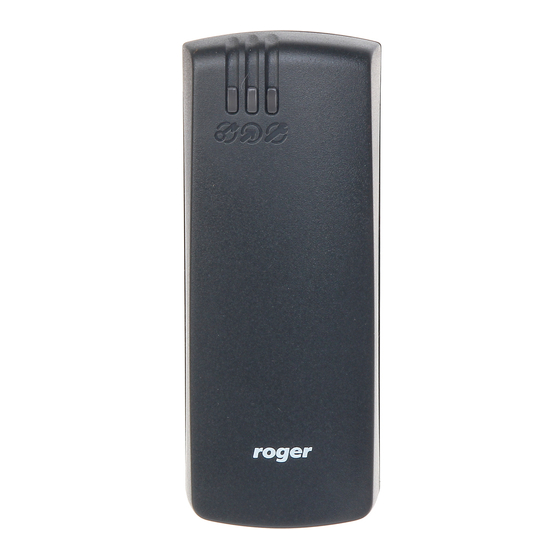

1. D ESIGN AND APPLICATION The MCT62E is an access terminal dedicated to RACS 5 system. The device enables identification of users by EM125kHz (UNIQUE) proximity cards. MCT62EM is connected to access controller through RS485 interface. Terminal can be installed in outdoor locations without any additional protection measures. - Page 3 MCT62E Operating Manual 31.08.2020 Fig. 1 MCT supply from MC16 access controller Fig. 2 MCT supply from dedicated power supply unit RS485 bus The communication method with MC16 access controller is provided with RS485 bus which can encompass up to 16 devices of RACS 5 system, each with unique address in range of 100-115. The bus topology can be freely arranged as star, tree or any combination of them except for loop.
-
Page 4: Led Indicators
MIFARE card readers e.g. MCT12M are recommended. The technical characteristics of the device are guaranteed for RFID cards supplied by Roger. Cards from other sources may be used, but they are not covered by the manufactures warranty. Before deciding to use specific Roger products with third-party contactless cards, it is recommended to conduct tests that will confirm satisfactory operation with the specific Roger device and software in which it operates. - Page 5 MCT62E Operating Manual 31.08.2020 Fig. 3 MCT62E installation 5/11...
- Page 6 MCT62E Operating Manual 31.08.2020 Fig. 4 Programming jumpers Installation guidelines The terminal should be mounted on a vertical structure (wall) away from sources of heat and moisture. Front panel should be attached in such way as the tamper detector (fig. 4) would firmly press the back panel.
-
Page 7: Low Level Configuration (Rogervdm)
MCT62E Operating Manual 31.08.2020 Fig. 5 Typical connection diagram for the terminal and MC16 access controller 4. C ONFIGURATION Low level configuration (RogerVDM) The purpose of low level configuration is to prepare device for operation in RACS 5 system. Programming procedure with RogerVDM software: 1. - Page 8 MCT62E Operating Manual 31.08.2020 Fig. 6 Connection to RUD-1 interface (low level configuration) Table 4. List of low level parameters Communication settings RS485 address Parameter defines device address on RS485 bus. Range: 100-115. Default value: 100. RS485 communication timeout [s] Parameter defines delay after which device will signal lost communication with controller.
-
Page 9: Manual Addressing
MCT62E Operating Manual 31.08.2020 value: [0]: No. Card/PIN buffer timeout [s] Parameter defines time for card/PIN storing in device buffer. When the time elapses the buffer is cleared even if card/PIN is not transmitted to controller. Range: 1-64. Default value: 10. -
Page 10: High Level Configuration (Viso)
The purpose of high level configuration is to define logical functioning of the terminal which communicates with the MC16 access controller and it depends on applied scenario of operation. The example of access control system configuration is given in AN006 application note which is available at www.roger.pl. 5. F IRMWARE UPDATE The update requires connection of reader to computer with RUD-1 interface (fig. -
Page 11: Ordering Information
~100g Certificates 7. O RDERING INFORMATION Table 6. Ordering information MCT62E EM 125 kHz access terminal RUD-1 Portable USB-RS485 communication interface dedicated to ROGER access control devices 8. P RODUCT HISTORY Table 7. Product history Version Date Description MCT62E v1.0...
