- Page 1 Roger Access Control System MCT80M Operating Manual Product version: 1.0 Firmware version: 1.1.18 or newer Document version: Rev. B...
-
Page 2: Design And Application

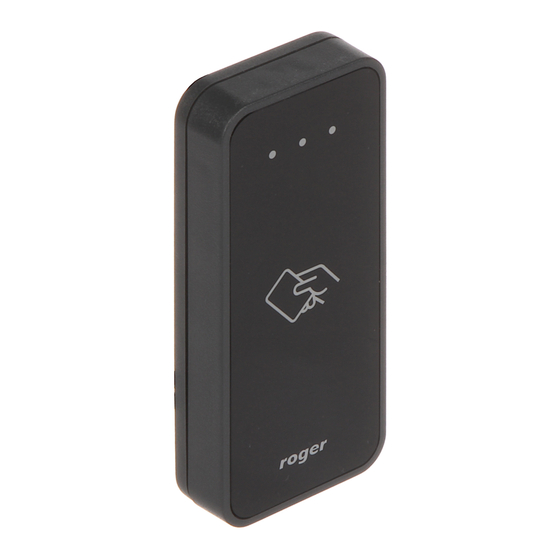

1. D ESIGN AND APPLICATION The MCT80M is an access terminal dedicated to RACS 5 system. The device enables identification of users by 13.56 MHz MIFARE® Ultralight/Classic proximity cards. MCT80M is connected to access controller through RS485 interface. Terminal can be installed in outdoor locations without any additional protection measures. - Page 3 MCT80M Operating Manual 09.07.2020 Fig. 1 MCT supply from MC16 access controller Fig. 2 MCT supply from dedicated power supply unit RS485 bus The communication method with MC16 access controller is provided with RS485 bus which can encompass up to 16 devices of RACS 5 system, each with unique address in range of 100-115. The bus topology can be freely arranged as star, tree or any combination of them except for loop.
-
Page 4: Led Indicators
(PCN) in selected and encrypted sectors of card memory. The use of PCN prevents card cloning and consequently it significantly increases security in the system. More information on MIFARE card programming is given in AN024 application note which is available at www.roger.pl. 4/12... -
Page 5: Installation
MCT80M Operating Manual 09.07.2020 The technical characteristics of the device are guaranteed for RFID cards supplied by Roger. Cards from other sources may be used, but they are not covered by the manufactures warranty. Before deciding to use specific Roger products with third-party contactless cards, it is recommended to conduct tests that will confirm satisfactory operation with the specific Roger device and software in which it operates. - Page 6 MCT80M Operating Manual 09.07.2020 Fig. 5 MCT80M installation 6/12...
-
Page 7: Low Level Configuration (Rogervdm)
MCT80M Operating Manual 09.07.2020 Note: MCT80M enclosure consists of front panel and back panel. New device is assembled with a standard back panel, but additional free of charge, extended back panel is included. This panel can be used when connection cable has to be hidden and no flush mounting box is available. - Page 8 MCT80M Operating Manual 09.07.2020 1. Place jumper on MEM contacts (fig. 4). 2. Connect the device to RUD-1 interface (fig. 7) and connect the RUD-1 to computer’s USB port. Orange LED SYSTEM will pulsate. 3. Start RogerVDM program, select MCT device, v1.0 firmware version, RS485 communication channel and serial port with RUD-1 interface.
- Page 9 MCT80M Operating Manual 09.07.2020 Backlight switching off when no Parameter enables backlight switching off after 20 s from the latest activity card reading or key pressing. The backlight is restored again when card or key is used. Range: [0]: No, [1]: Yes. Default value: [1]: Yes.
-
Page 10: Manual Addressing
The purpose of high level configuration is to define logical functioning of the terminal which communicates with the MC16 access controller and it depends on applied scenario of operation. The example of access control system configuration is given in AN006 application note which is available at www.roger.pl. 5. F IRMWARE UPDATE The update requires connection of device to computer with RUD-1 interface (fig. -
Page 11: Specification
MCT80M Operating Manual 09.07.2020 1. Place jumper on FDM contacts (fig. 4). 2. Connect the device to RUD-1 interface (fig. 8) and connect the RUD-1 to computer’s USB port. Orange LED SYSTEM will pulsate. 3. Start RogerVDM program and in the top menu select Tools and then Update firmware. -
Page 12: Ordering Information
MCT80M Operating Manual 09.07.2020 7. O RDERING INFORMATION Table 6. Ordering information MCT80M Outdoor MIFARE Classic access terminal RUD-1 Portable USB-RS485 communication interface dedicated to ROGER access control devices 8. P RODUCT HISTORY Table 7. Product history Version Date Description MCT80M v1.0...
