- Page 1 Roger Access Control System MCT64E-IO and MCT66E-IO Operating Manual Product version: 1.1 Firmware version: 1.0.4 or newer Document version: Rev. A...
-
Page 2: Design And Application

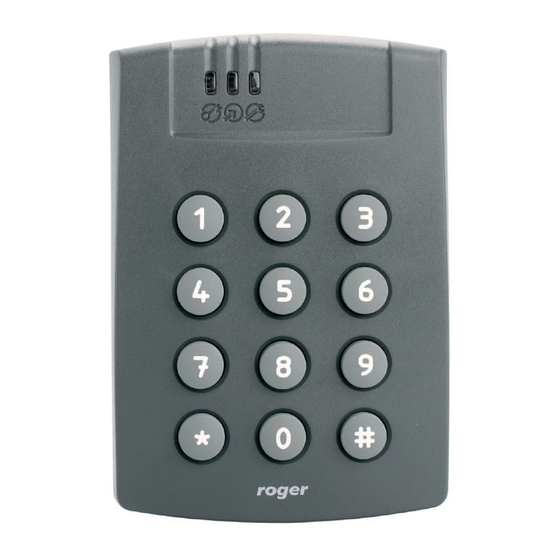

1. D ESIGN AND APPLICATION MCT64E-IO and MCT66E-IO are access terminals dedicated to RACS 5 system. Depending on their versions, devices enable identification of users by PINs and/or EM125kHz (UNIQUE) proximity cards. Terminals are connected to access controller through RS485 interface. Devices can be installed in outdoor locations without any additional protection measures. - Page 3 MCT64E MCT66E Operating Manual 09.07.2020 Fig. 1 MCT supply from MC16 access controller Fig. 2 MCT supply from dedicated power supply unit RS485 bus The communication method with MC16 access controller is provided with RS485 bus which can encompass up to 16 devices of RACS 5 system, each with unique address in range of 100-115. The bus topology can be freely arranged as star, tree or any combination of them except for loop.
-
Page 4: Led Indicators
09.07.2020 Keypad MCT64E-IO is equipped with numeric keypad and backlight. The keypad can be used for user identification with PIN and for various keypad commands. By default, the key [#] is used for PIN confirming. Numeric keypad includes [*] and [#] keys which can be configured as function keys. -
Page 5: Installation
MIFARE card readers e.g. MCT12M are recommended. The technical characteristics of the device are guaranteed for RFID cards supplied by Roger. Cards from other sources may be used, but they are not covered by the manufactures warranty. Before deciding to use specific Roger products with third-party contactless cards, it is recommended to conduct tests that will confirm satisfactory operation with the specific Roger device and software in which it operates. - Page 6 MCT64E MCT66E Operating Manual 09.07.2020 RS485 bus, line A RS485 bus, line B CLK line DTA line Tamper contact Tamper contact IO1 output line IO2 output line REL1-NC REL1 relay normally closed contact REL1-COM REL1 relay common contact REL1-NO REL1 relay normally opened contact Fig.
- Page 7 MCT64E MCT66E Operating Manual 09.07.2020 Fig. 5 MCT64E-IO installation 7/15...
- Page 8 MCT64E MCT66E Operating Manual 09.07.2020 Fig. 6 MCT66E-IO installation 8/15...
- Page 9 MCT64E MCT66E Operating Manual 09.07.2020 Installation guidelines The terminal should be mounted on a vertical structure (wall) away from sources of heat and moisture. Front panel should be attached in such way as the tamper detector (fig. 4) would firmly press the back panel.
-
Page 10: Low Level Configuration (Rogervdm)
MCT64E MCT66E Operating Manual 09.07.2020 Fig. 8 Typical connection diagram for the terminal and MC16 access controller 4. C ONFIGURATION Low level configuration (RogerVDM) The purpose of low level configuration is to prepare device for operation in RACS 5 system. Programming procedure with RogerVDM software: 1. - Page 11 MCT64E MCT66E Operating Manual 09.07.2020 Fig. 9 Connection to RUD-1 interface Table 4. List of low level parameters Communication settings RS485 address Parameter defines device address on RS485 bus. Range: 100-115. Default value: 100. RS485 communication timeout [s] Parameter defines delay after which device will signal lost communication with controller.
- Page 12 KBD, CDI, BUZZER, LED OPEN, Parameter defines any text or comment which corresponds to the LED STATUS comment object. It is later displayed in VISO program. RACS CLK/DTA Terminal ID0 Settings in this area do not refer to standard MCT64E-IO and MCT66E-IO readers. 12/15...
-
Page 13: Manual Addressing
The purpose of high level configuration is to define logical functioning of the terminal which communicates with the MC16 access controller and it depends on applied scenario of operation. The example of access control system configuration is given in AN006 application note which is available at www.roger.pl. 5. F IRMWARE UPDATE The update requires connection of reader to computer with RUD-1 interface (fig. -
Page 14: Ordering Information
Table 6. Ordering information MCT64E-IO EM 125 kHz access terminal with keypad; on-board I/Os MCT66E-IO EM 125 kHz access terminal; on-board I/Os RUD-1 Portable USB-RS485 communication interface dedicated to ROGER access control devices 8. P RODUCT HISTORY Table 7. Product history Version... - Page 15 Weight of the equipment is specified in the document. Contact: Roger sp. z o.o. sp.k. 82-400 Sztum Gościszewo 59 Tel.: +48 55 272 0132 Fax: +48 55 272 0133 Tech.
