Roger MCT80M-BLE Installation Manual

Roger Access Control System
MCT80M-BLE Reader
Installation Manual
Hardware version: v1.0
Firmware version: 1.0.6.193 and newer
Document version: Rev. G
This document contains minimum information that is necessary for
initial setup and installation of the device. The detailed description of
configuration parameters and functionalities is specified in respective
Operating Manual available at www.roger.pl.
I
NTRODUCTION
The reader is designed for operation with MC16 access controller
(RACS 5 system). Factory new reader is configured with default
settings including ID=100 address.
D C
EVICE ONFIGURATION
The reader can be configured in regard of various parameters
(including address) in order to adapt it to the requirements of specific
installation. Device can be configured from VISO v2 management
software or RogerVDM utility software.
Note: Remote configuration of device from VISO v2 software is possible
only if jumper is placed on MEM contacts (fig. 2). If the jumper is
removed, then such configuration is blocked. In case of factory new
device, jumper is placed on MEM contacts.
C
ONFIGURATION WITH
In RACS 5 v2 system the reader can be installed at site without
previous configuration. According to AN006 application note, its
address and other settings can be configured from VISO v2
management software and during such configuration the access to its
service contacts (fig. 2) is not required.
C
ONFIGURATION WITH

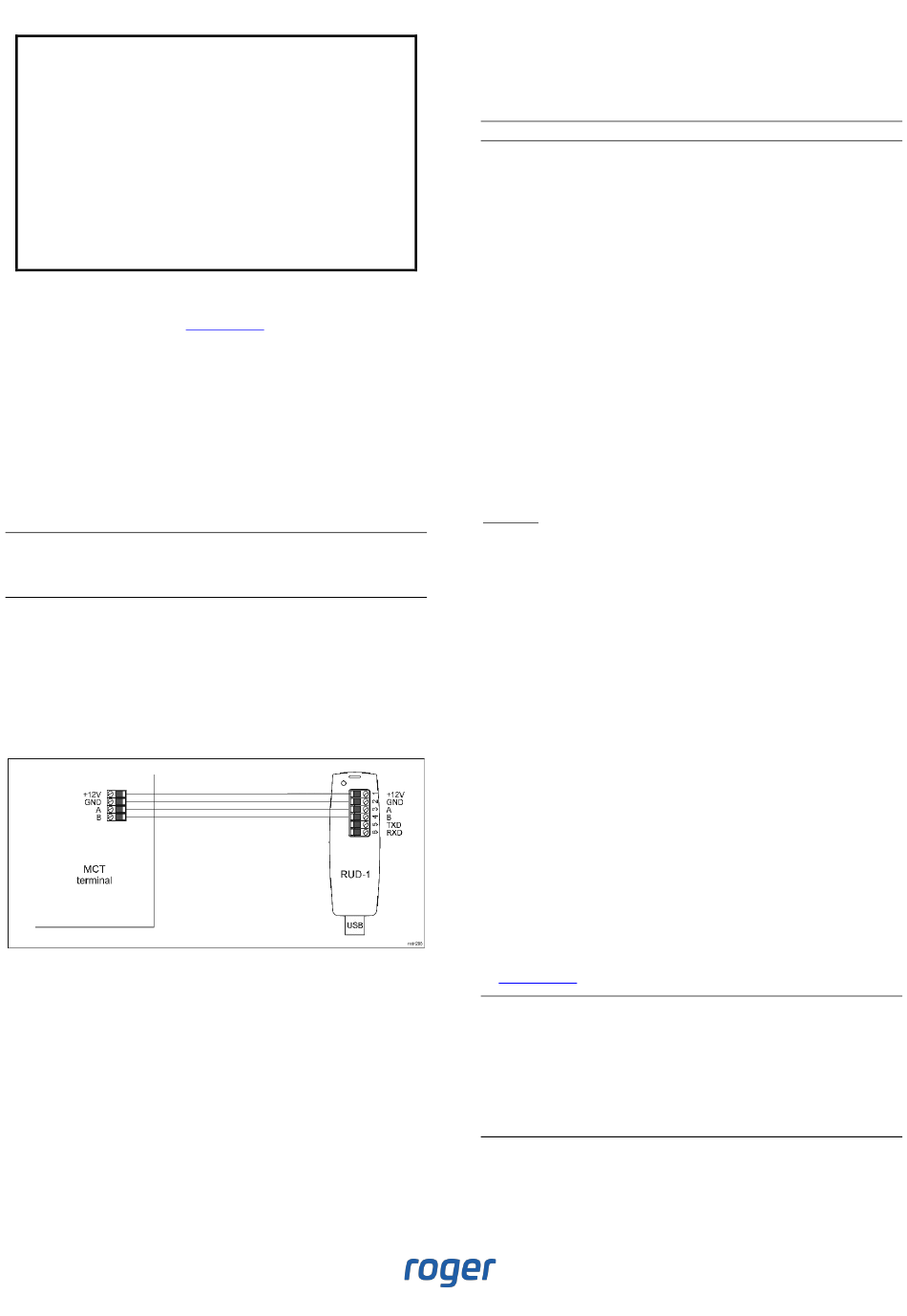

Fig. 1 Connection of MCT terminal to RUD-1 interface
Programming procedure:
Connect the device to RUD-1 interface (fig. 1) and connect the RUD-1
to computer's USB port.
Remove jumper from MEM contacts (fig. 2) if it is placed there.
Restart the device (switch power supply off and on) and orange LED
SYSTEM will pulsate. Then within 5 seconds place jumper on MEM
contacts.
Start RogerVDM program, select MCT device, firmware version, RS485
communication channel and serial port with RUD-1 interface.
Click Connect, the program will establish connection and will
automatically display Configuration tab.
Enter unoccupied RS485 address in range of 100-115 and other settings
according to requirements of specific installation.
Click Send to Device to update the configuration of device.
V 2 P
ISO V ROGRAM
R VDM P
OGER ROGRAM
Optionally make a backup by clicking Send to File... and saving settings
to file on disk.
Disconnect from RUD-1 interface and leave jumper on MEM contacts to
enable further configuration of device from VISO v2 software or remove
jumper from MEM contacts to block such remote configuration.
Note: Do not read any cards when reader is configured with RogerVDM.
M
ANUAL ADDRESSING
Manual addressing procedure enables configuration of new RS485
address with all other settings unchanged.
Manual addressing procedure:
1. Remove all connections from A and B lines.
Remove jumper from MEM contacts (fig. 2) if it is placed there.
Restart the device (switch power supply off and on) and orange LED
SYSTEM will pulsate. Then within 5 seconds place jumper on MEM
contacts.
Enter 3 digits of RS485 address in range of 100-115 with any MIFARE
card.
Leave jumper on MEM contacts to enable further configuration of device
from VISO v2 software or remove jumper from MEM contacts to block
such remote configuration.
Restart the device.
Terminals without keypad can be addressed with multiple card
readings where the N number of readings emulates digit of the
address. Three series of readings with any MIFARE proximity card are
necessary to set the address. After each series wait for two beeps and
proceed with the next digit. Zero digit is emulated with 10 readings.
Example:
Programming of ID=101 address with card readings:
1. Read card 1 time and wait for two beeps.
Read card 10 times and wait for two beeps.
Read card 1 time and wait for two beeps.
Wait till reader is restarted with the new address.
M R
EMORY ESET
Memory reset procedure resets all settings to factory default ones
including ID=100 address.
Memory reset procedure:
1. Remove all connections from A and B lines.
Remove jumper from MEM contacts (fig. 2) if it is placed there.
Restart the device (switch power supply off and on) and orange LED
SYSTEM will pulsate. Then within 5 seconds place jumper on MEM
contacts.
Read any MIFARE card 11 times.
Wait till device confirms reset with long acoustic signal.
Leave jumper on MEM contacts to enable further configuration of device
from VISO v2 software or remove jumper from MEM contacts to block
such remote configuration.
Restart the device.
F U
IRMWARE PDATE
The firmware of device can be changed to newer or older version. The
update requires connection to computer with RUD-1 interface (fig. 1)
and starting RogerVDM software. The latest firmware file is available
at www.roger.pl.
Note: Backup configuration with RogerVDM software before firmware
update because the update will restore factory default settings.
Note: Keyboard support firmware PSoC4_CapSense_I2C_BLE_MCT88
should be used only for devices: MCT80M-BLE v1.x Rev.A - Rev.D
Keyboard support firmware
PSoC4_CapSense_I2C_BLE_MCT88_CY9C4128 should be used only for
devices: MCT80M-BLE v1.x Rev.E or higher.
Firmware update procedure:
1. Connect the device to RUD-1 interface (fig. 1) and connect the RUD-
1 to computer's USB port.
Place jumper on MEM contacts (fig. 2).
