- Page 1 Roger Access Control System MCT68ME-IO Operating Manual Product version: 2.0/2.1 Firmware version: 2.1.0.306 or newer Document version: Rev. B...
-
Page 2: Design And Application

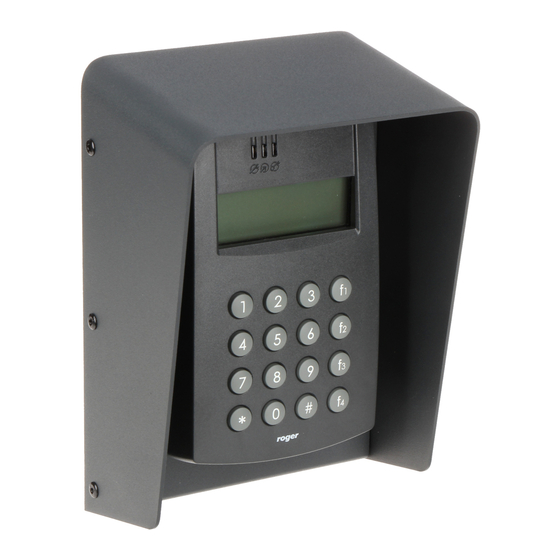

1. D ESIGN AND APPLICATION The MCT68ME-IO is an access terminal dedicated to RACS 5 system. The device enables identification of users by PINs and/or 13.56 MHz MIFARE® Ultralight/Classic and EM125kHz (UNIQUE) proximity cards. The terminal is mainly used for Time&Attendance applications. The device is offered in two versions: MCT68ME-IO-I for indoor installation and MCT68ME-IO-O with ME-7 metal enclosure for outdoor installation. - Page 3 MCT68ME-IO Operating Manual 13.05.2022 Fig. 1 MCT supply from MC16 access controller Fig. 2 MCT supply from dedicated power supply unit RS485 bus The communication method with MC16 access controller is provided with RS485 bus which can encompass up to 16 devices of RACS 5 system, each with unique address in range of 100-115. The bus topology can be freely arranged as star, tree or any combination of them except for loop.
- Page 4 RACS CLK/DTA bus is dedicated to communication with PRT series terminals. However in case of MCT68ME-IO with firmware 1.1.0.306 the communication with slave PRT terminal is disabled. The DTA line of the bus can be configured as NO/NC input or transistor output while CLK line of the bus is unused.
- Page 5 • PINs The technical characteristics of the device are guaranteed for RFID cards supplied by Roger. Cards from other sources may be used, but they are not covered by the manufactures warranty. Before deciding to use specific Roger products with third-party contactless cards, it is recommended to conduct tests that will confirm satisfactory operation with the specific Roger device and software in which it operates.
-
Page 6: Installation
MCT68ME-IO Operating Manual 13.05.2022 2. I NSTALLATION Table 3. Screw terminals Name Description 12VDC power supply Ground IN1 input line IN2 input line IN3 input line RS485 A RS485 bus, line A RS485 B RS485 bus, line B Not used... - Page 7 MCT68ME-IO Operating Manual 13.05.2022 Fig. 5 MCT68ME-IO-I installation 7/15...
- Page 8 MCT68ME-IO Operating Manual 13.05.2022 Fig. 6 MCT68ME-IO-O installation 8/15...
- Page 9 MCT68ME-IO Operating Manual 13.05.2022 Installation guidelines • The terminal should be mounted on a vertical structure (wall) away from sources of heat and moisture. • Front panel should be attached in such way as the tamper detector (fig. 4) would firmly press the back panel.
-
Page 10: Low Level Configuration (Rogervdm)
MCT68ME-IO Operating Manual 13.05.2022 Fig. 8 Typical connection diagram for the terminal and MC16 access controller 4. C ONFIGURATION The purpose of low level configuration is to prepare device for operation in RACS 5 system. In case of RACS 5 v1 system the address of device must be configured by means of RogerVDM software or by manual addressing before connection to MC16 controller. - Page 11 MCT68ME-IO Operating Manual 13.05.2022 Fig. 9 Connection to RUD-1 interface (low level configuration) Table 4. List of low level parameters Communication settings RS485 address Parameter defines device address on RS485 bus. Range: 100-115. Default value: 100. RS485 communication timeout [s] Parameter defines delay after which device will signal lost communication with controller.
- Page 12 MCT68ME-IO Operating Manual 13.05.2022 Single key press Parameter enables separate transmission of each pressed key to controller. Range: [0]: No, [1]: Yes. Default value: [1]: Yes. Min. length of PIN Parameter defines the minimal number of digits for PIN entered with keypad.
-
Page 13: Manual Addressing
The purpose of high level configuration is to define logical functioning of the terminal which communicates with the MC16 access controller and it depends on applied scenario of operation. The example of access control system configuration is given in AN006 application note which is available at www.roger.pl. 5. F IRMWARE UPDATE The update requires connection of reader to computer with RUD-1 interface (fig. -
Page 14: Ordering Information
1200m maximal cable length for RS485 bus between controller and reader IP Code MCT68ME-IO-I: IP41 MCT68ME-IO-O: IP54 MCT68ME-IO-I: Class I, indoor general conditions, temperature: +5°C to Environmental class +40°C, relative humidity: 10 to 95% (no condensation) (according 50133-1) MCT68ME-IO-O: Class IV, outdoor general conditions, temperature: -25°C to +60°C, relative humidity: 10 to 95% (no condensation) - Page 15 Weight of the equipment is specified in the document. Contact: Roger sp. z o.o. sp.k. 82-400 Sztum Gościszewo 59 Tel.: +48 55 272 0132 Fax: +48 55 272 0133 Tech.
