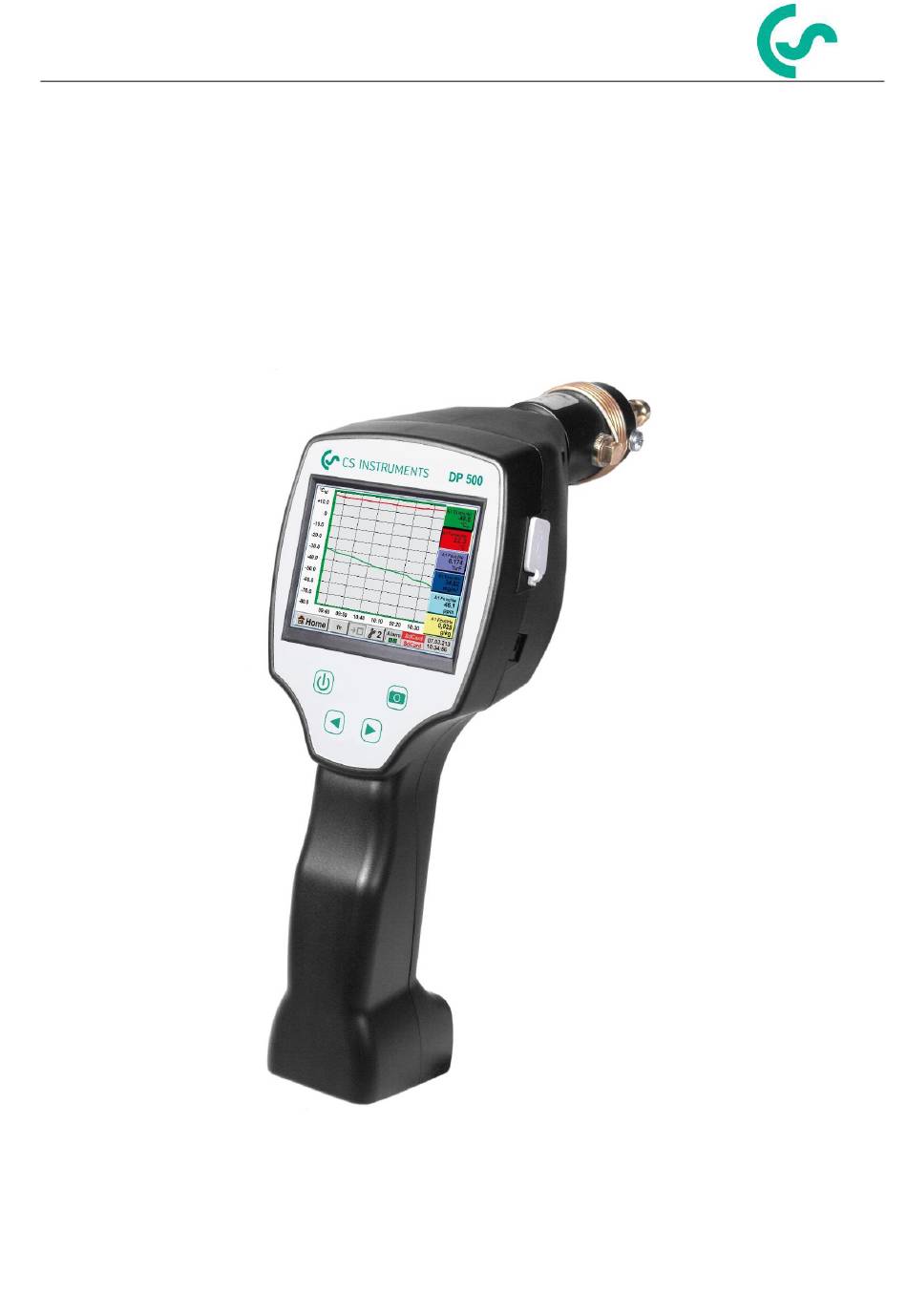

  • Page 1 EN – English Installation and operating instructions portable dew point meters DP 500 / DP 510 DP 500 / DP 510 V1.33 Seite 1 von 96...
  • Page 2 I. Foreword Dear customer, thank you very much for deciding in favour of the DP 500 / DP 510. Please read this installation and operation manual carefully before mounting and initiating the device and follow our advice. A riskless operation and a correct functioning of the DP 500 /...

  • Page 3: Table Of Contents

    CALIBRATION / ADJUSTMENT INPUTSIGNALS EXT. SENSOR DP 510 CABLE CROSS SECTION Sensor circuit points/Output signal: CONNECTION DIAGRAMS OF THE DIFFERENT SENSOR TYPS (DP 510 ONLY) 10.1 Connector pin assignment for all sensors DP 510 10.2 Connection CS dew point sensors series FA 415/FA 300 10.3...

  • Page 4: Table Of Contents

    Table of Contents OPERATION DP 500 / DP 510 11.1 Keypad 11.1.1 On- and Off button 11.1.2 Brightness buttons 11.1.3 Screenshot-Button 11.1.3.1 Storing Screenshot 11.1.3.2 Export Screenshots 11.2 Touchpanel 11.3 Main menu (Home) 11.3.1 Initialization 11.3.2 Main menu 11.3.2.1 Settings 11.3.2.1.1...
  • Page 5 Definition of Operands 12.2.5 Definition of Operations 12.2.6 Definition of Unit 12.2.7 Value name, resolution of decimal places and recording of values ANALOG TOTAL (OPTIONAL ONLY FOR DP 510) 13.1 Option „Analog Total“ activation 13.2 Selection of sensor type EXPORT /IMPORT 14.1 Export Logger data 14.2...

  • Page 6: Safety Instructions

    Measures: • Make sure that the DP 500 / DP 510 is only operated within the admissible limit values indicated on the type label. • Strict observance of the performance data of the DP 500 / DP 510 in connection with the application.

  • Page 7: Environmental Protection

    CS Instruments GmbH & Co.KG for disposal. CS Instruments GmbH & Co.KG makes no warranty as to its suitability for any particular purpose and assumes no liability for any errors contained in this manual. Nor for consequential damages in connection with the delivery, performance or use of this device.

  • Page 8: Application Area

    Up to 100 million measured valued can be stored with date and measuring site name. The measured data can be transferred to the computer via USB stick. DP 510 additionally disposes of one further freely assignable sensor input. Apart from the internal dew point measurement, one further optional sensor can be connected like for example: •...

  • Page 9: Technical Data Dp 500 / Dp 510

    Technical data Technical data DP 500 / DP 510 3.5“-Touchpanel TFT transmissive, graphics, curves, statistics Colour screen Interfaces -80…+50 °Ctd Measuring ranges -20…+70 °C 0…100 % rF ± 0,5 °Ctd (-10…+50 °Ctd) Accuracy typical:. ± 2 °Ctd g/m³, mg/m³, ppm V/V, g/kg, °Ctdatm, % rF...

  • Page 10: Installation And Measurements

    3. Connect the measuring chamber screwed onto DP 500 / DP 510 with the plug nipple coupling of the measuring point 4. Wait until the value in the display of DP 500 / DP 510 has stabilized. Depending on the position of the measuring point...

  • Page 11: Dew Point Measuring At Synthetic Granules -Dries

    If the sensor is much polluted the only possibility will be an examination and maintenance by the manufacturer. Calibration / Adjustment We recommend an annual calibration and if necessary adjustment of the measuring instrument at the manufacturer. Please observe the enclosed inspection certificate. DP500 / DP 510 1.33 Seite 11 von 96...

  • Page 12: Inputsignals Ext. Sensor Dp 510

    Inputsignals for ext. Sensor DP 510 Inputsignals ext. sensor DP 510 Input signals 0 – 20 mA / 4 – 20 mA Measuring range Current signal Resolution 0,0001 mA (0 – 20 mA / 4 – 20 mA) internal or external ...

  • Page 13: Connection Diagrams Of The Different Sensor Typs (Dp 510 Only)

    Connection diagrams of the different sensor types (DP 510 only) Connection diagrams of the different sensor typs (DP 510 only) 10.1 Connector pin assignment for all sensors DP 510 The interface connector to be used is an ODU Medi Snap 8 pin – Reference: K11M07-P08LFD0-6550...

  • Page 14: Connection Cs Dew Point Sensors Series Fa 415/Fa 300

    Analog IN + FA 415 Sensor Analog IN - I (500µA) The digital data transmission between DP 510 and the dew point sensors FA 415 and FA 300 occur via the SDI bus line. +VB 24Vdc blue -VB GND 10.3 Connection for CS dew point- and consumption sensors, series FA/VA 400...

  • Page 15: Connection Pulse Sensors

    Connection diagrams of the different sensor types (DP 510 only) 10.5 Connection pulse sensors Signal level 0: + RS485 low = 0 – 0,7 VDC - RS485 1 = 2.5V – 30V 0 = 0V – 0.7V Signal level 1: Analog IN + high = 2,5 –...

  • Page 16: Analogue Two-, Three-, And Four-Wire Current Signal

    Connection diagrams of the different sensor types (DP 510 only) 10.6 Analogue two-, three-, and four-wire current signal Sensors with 4 - 20 mA-output in 2-wire technology + RS485 - RS485 ß 0 / 4 ...20mA Analog IN + Yellow...

  • Page 17: Three- And Four-Wire Power Supply 0 - 1/10/30 Vdc

    Connection diagrams of the different sensor types (DP 510 only) 10.7 Three- and four-wire power supply 0 - 1/10/30 VDC + RS485 - RS485 ß 0...1 / 10 / 30 Vdc Sensor with voltage output in 3-wire technology Analog IN +...

  • Page 18: Two-, Three-, And Four-Wire Connector Pin Assignments For Pt100/Pt1000/Kty81

    Connection diagrams of the different sensor types (DP 510 only) 10.8 Two-, three-, and four-wire connector pin assignments for PT100/PT1000/KTY81 + RS485 - RS485 Yellow Analog IN + 2-wire PT100/PT1000/KTY81 Analog IN - I (500µA) pink +VB 24Vdc -VB GND...

  • Page 19: Operation Dp 500 / Dp 510

    Operation DP 500 / DP 510 Operation DP 500 / DP 510 The operation of the DP 500 / DP 510 by means of a keypad and a touch panel 11.1 Keypad 11.1.1 On- and Off button On-or Off switching by long press buttons.

  • Page 20: Export Screenshots

    Operation DP 500 / DP 510 - Touchpanel 11.1.3.2 Export Screenshots The stored bitmaps on the SD-card could be exported to a USB –Stick. Main menu ➔ Export/Import➔ Export Screenshots With Export Screenshots the stored Screenshots will be transferred to a USB- Stick.
  • Page 21 Operation DP 500 / DP 510 - Touchpanel Main menu ➔ Export Data ➔Export Screenshots ➔ Export The Screenshots of the selected period are exported to the USB-Stick. DP500 / DP 510 1.33 Seite 21 von 96...

  • Page 22: Touchpanel

    Operation DP 500 / DP 510 - Touchpanel 11.2 Touchpanel The operation is largely self-explanatory and menu-driven via the touch panel. The selection of the respective menu items occur via short "tapping" with the finger or a soft round pen.

  • Page 23: Main Menu (Home)

    Real „ appears. time values Attention: For the first initiation, there may be no external channel for DP 510 preset! Please see chapter 10.3.2.1.2 Sensor Settings then select appropriate configurations and set! DP 500 / DP 510 V1.33 Seite 23 von 96...

  • Page 24: Main Menu

    Before the first sensor setting is made, the language and time should be set! Remark: Chapter 10.3.2.1.3.1 language ➔ ➔ ➔ Main Settings Device Settings Language) Chapter 10.3.2.1.3.2 ate & Time ➔ ➔ ➔ Main Settings Device Settings Date & Time) DP500 / DP 510 1.33 Seite 24 von 96...

  • Page 25: Settings

    If you cannot remember the password, please use Master password in order to enter a new password. Remark: The master password is supplied together with the instrument’s documentation. DP 500 / DP 510 V1.33 Seite 25 von 96...

  • Page 26: Sensor-Settings

    Sensor-Settings - Naming the measurement data 11.3.2.1.2 Sensor-settings Important: Sensors from CS Instruments are generally pre-configured and can be connected directly to an external sensor channel! (DP 510 only) Main menu ➔ Settings ➔Sensor settings Feuchte intern DewPoint 1,31 °Ctd Rel.Humid.

  • Page 27: Settings Internal Dew Point-Sensor

    • System pressure as a fixed value • System pressure taken over from an external pressure sensor ( only DP 510) Main menu ➔ Settings ➔ Sensor settings ➔ I1➔ arrow right (2.page)➔Pressure Setting ➔ Fixed By activating the button...

  • Page 28: Definition Of Reference Pressure (Absolute Pressure Value)

    Main menu Main menu ➔ Settings ➔ Sensor settings ➔ I1➔ arrow right (2.page)➔Pressure Setting ➔ Sensor When using an ext. Pressure probe on sensor input C1 (only DP 510) then the Sensor button have to be activated. By entering the System pressure text field the possible channels and the relevant values could be selected.

  • Page 29: Choice Of The Sensor Type (For Example Type Cs-Digital Sensor)

    For the sensor name, it is possible to enter a name with up to 24 characters. For values names are max. 10 characters and for the short name max. 3 characters possible. DP500 / DP 510 1.33 Seite 29 von 96...

  • Page 30: Name The Measurement Data And Define The Decimal Places

    2345678 ltr 0.00 m/s Attention: Before the selected measurement data are recorded, the data logger must be activated after the settings (See chapter 12.3.2.5.5 Logger-Settings(Datalogger) DP500 / DP 510 1.33 Seite 30 von 96...

  • Page 31: Alarm-Settings ( Alarm Popup)

    0.000 ltr/ min After alarm setting for Channel C1a. 2345678 ltr 0.00 m/s Remark: After confirm with OK, the font is black again and the values and settings are accepted DP 500 / DP 510 V1.33 Seite 31 von 96...

  • Page 32: More Settings (Scale Analogue Output)

    CS-Digital 110.00 0.000 available! 200.000 The settings are completed after pressing the button! Remark: After confirming with OK, the font is black again and the values and settings are accepted. DP 500 / DP 510 V1.33 Seite 32 von 96...

  • Page 33: Dew Point Sensor Fa 400 / Fa 410 Of Type Cs-Digital (Sdi Bus)

    Now the Type CS-Digital is selected for the VA/FA 400 series and confirmed by pressing button. The DP 510 detects, if the connected sensor is a flow or dew point sensor of CS -9.2 °Ctd Instruments and set the CS-Digital subtype automatically correct.

  • Page 34: Flow Sensor Va 400 / Va 420 Of Type Cs-Digital (Sdi Bus)

    Now the Type CS-Digital is selected for the VA/FA 400 series and confirmed by pressing button. Das DP 510 erkennt, ob es sich bei dem angeschlossenen Sensor um ein Durchfluss- oder Taupunkt-Sensor von CS Instruments handelt und stellt den CS-Digital Subtyp automatisch richtig ein.
  • Page 35 There is no uniform standard for the tube inner diameter! (Please, inquire at the manufacturer or measure by your own!) DP500 / DP 510 1.33 Seite 35 von 96...
  • Page 36 20 °C, 1000 hPa (according to ISO 1217 intake condition) 0 °C and 1013 hPa (= standard cubic meter) can also be entered as a reference. Do not enter the operation pressure or the operation temperature under reference conditions! DP500 / DP 510 1.33 Seite 36 von 96...

  • Page 37: Dew Point Sensor Fa 500 / Fa 510 Of Type Fa 5Xx (Rs 485 Modbus)

    Confirmation by pressing the OK-button. *** Channel C1 *** Type Name Dew Point The connection with the FA 5xx sensor is “OK”. done after confirmation by pressing 3.33 °Ctd 23.313 25.85 °C 5.6314 g/m³ DP 500 / DP 510 V1.33 Seite 37 von 96...

  • Page 38: Settings Dew Point Sensor Fa 500 Fa 510

    The value is entered in the corresponding text field. The unit can be freely selected, selection menu is opened by pressing the corresponding button units Confirm the settings by pressing the button. DP500 / DP 510 1.33 Seite 38 von 96...

  • Page 39: Definition Of Reference Pressure (Absolute Pressure Value)

    Then by pressing the "Calibration" button taking over the inserted reference value. Calibration can be put back to factory setting by „Reset“. pressing For each performed calibration, the counter is increased by 1. DP500 / DP 510 1.33 Seite 39 von 96...

  • Page 40: More Settings Analogue Output 4-20Ma

    Sensor error / System error • 3.8mA – 20.5 mA) 4..20 Output according Namur ( < 4mA to 3.8 mA Measuring range under range >20mA to 20.5 mA Measuring range exceeding DP500 / DP 510 1.33 Seite 40 von 96...

  • Page 41: Flow Sensor Of Type Va 5Xx (Rs 485 Modbus)

    Confirmation by pressing the OK-button. *** Channel C1 *** Flow Sensor Type Name The connection with the VA 5xx sensor is “OK”. done after confirmation by pressing 0.00 m³/h 4589 m³ 0.00 25.70 °C DP 500 / DP 510 V1.33 Seite 41 von 96...

  • Page 42: Settings For Flow Sensor Va 5Xx

    There is no uniform standard for the tube inner diameter! (Please, inquire at the manufacturer or measure by your own!) DP500 / DP 510 1.33 Seite 42 von 96...

  • Page 43: Gas Constant Settings

    20 °C, 1000 hPa (according to ISO 1217 intake condition) 0 °C and 1013 hPa (= standard cubic meter) can also be entered as a reference. Do not enter the operation pressure or the operation temperature under reference conditions! DP500 / DP 510 1.33 Seite 43 von 96...

  • Page 44: Definition Of The Reference Conditions

    Main menu ➔ Settings ➔ Sensor settings ➔ C1➔ arrow right (2.page) ➔ Flow description Field Main menu ➔ Settings ➔ Sensor settings ➔ C1➔ arrow right (2.page) ➔ Velocity description Field 11.3.2.5.1.5 Definition consumption counter value and consumption unit DP500 / DP 510 1.33 Seite 44 von 96...
  • Page 45 When the counter reach 100000000 m³ the counter will be reset to zero. *** Channel C1 *** Remark: After confirmation with OK, the font is black again and the values and settings are accepted DP500 / DP 510 1.33 Seite 45 von 96...

  • Page 46: Settings Analogue Output 4-20Ma Of Va 5Xx

    < 4mA to 3.8 mA Measuring range under range >20mA to 20.5 mA Measuring range exceeding “OK” Inputs / changes to be confirmed with button. Return “Back”. to main menu with DP500 / DP 510 1.33 Seite 46 von 96...

  • Page 47: Settings Pulse / Alarm Output Of Va 5Xx

    High: Value over limit Low: Value under limit “OK” Inputs / changes to be confirmed with “Back”. button. Return to main menu with DP500 / DP 510 1.33 Seite 47 von 96...

  • Page 48: Settings Zeropoint Or Low Flow Cut Off For Va 5Xx

    2.045 value, here 10. With the Reset” button all entries could be set back to zero. “OK” Inputs / changes to be confirmed with “Back”. button. Return to main menu with DP500 / DP 510 1.33 Seite 48 von 96...

  • Page 49: Configuration Of Analog-Sensors

    It is possible to define a Offset-Value. With the Set Value to-button (Offset) you enter it. The positive or negative difference of the Offset will be displayed. By pressing the Reset-button the Offset will be deleted DP 500 / DP 510 V1.33 Seite 49 von 96...
  • Page 50 User unit be defined. Main menu ➔ Settings ➔ Sensor settings ➔ C1 ➔ Type description field ➔0/4 - 20 mA Here for example Type 4 - 20 10.55 bar DP500 / DP 510 1.33 Seite 50 von 96...

  • Page 51: Type Pt100X And Kty81

    PT1000 and KTY81, as well as the Unit °F can be selected. More setting options, see chapter 10.3.2.1.2.10 Type 0 - 1/10/30 Volt and 0/4 - 20 DP500 / DP 510 1.33 Seite 51 von 96...

  • Page 52: Type Pulse (Pulse Ration)

    Main menu ➔ Settings ➔ Sensor settings ➔ B1 ➔ arrow right (2.page) ➔ Unit Pulses Unit Pulse you can choose between a flow volume or a power consumption unit. DP500 / DP 510 1.33 Seite 52 von 96...
  • Page 53 The available Units for the Unit Counter Type Pulse counter can be set any time to any value you need. More setting options, see chapter 10.3.2.1.2.10 Type 0 - 1/10/30 Volt and 0/4 - 20 DP500 / DP 510 1.33 Seite 53 von 96...

  • Page 54: Type „No Sensor

    Is used to declare a not currently needed channel as No Sensor defined. DewPoint 0,21 °Ctd Rel.Humid. 20.36 %RH Temperatur 24.33 °C If you go to Type No Sensor Back, the Abs.Humid. channel will appear as unused. DP 500 / DP 510 V1.33 Seite 54 von 96...

  • Page 55: Type Modbus

    In addition in the menu are the serial transmission settings Baudrate, Stopbits, Parityt Timeout time to define. In case that the DP 510 is the end of the RS485 bus system with activating Term- & Bias- button the required termination and biasing could be activated.
  • Page 56 Modbus and read by the DP 510 This requires setting the desired register addresses in the DP 510 Entering the register / data address is here in decimal with 0-65535. Important: Required is the correct register-address.
  • Page 57 To move through the list please press the button Page. In case the unit is not available, it is possible to create a user defined unit. Therefore, please select one of the User_X buttons. DP500 / DP 510 1.33 Seite 57 von 96...
  • Page 58 By default or value = 0 no scaling is applied don’t scale and displayed in the field is Main menu ➔ Settings ➔ Sensor settings ➔ C1 ➔ OK By pressing the button, the inputs are confirmed and stored. DP500 / DP 510 1.33 Seite 58 von 96...

  • Page 59: Data Logger Settings

    2 seconds. And if more than 25 measurement data are recorded at the same time, the smallest possible time interval of the data logger is 5 seconds. DP 500 / DP 510 V1.33 Seite 59 von 96...
  • Page 60 Remark: If the start time is activated, it will automatically be set at the current time plus a minute. DP500 / DP 510 1.33 Seite 60 von 96...
  • Page 61 Main menu ➔ Settings ➔ Logger settings ➔ timed Start button/timed Stop button ➔ Date/Time description field After pushing the date/time description field a window will appear where the yellow marked area of the time or date can always be set and changed. DP500 / DP 510 1.33 Seite 61 von 96...
  • Page 62 The settings cannot be changed, if the data logger runs. Important: If a new recording file should be created, the force new record file button must be activated. Otherwise, the last applied recording file is used. DP500 / DP 510 1.33 Seite 62 von 96...

  • Page 63: Device Settings

    Overview of Device settings 11.3.2.5.6.1 Language Main menu ➔ Settings ➔ Device settings ➔ Set language Here you can select one of 10 languages for the 500 / DP 510. DP 500 / DP 510 V1.33 Seite 63 von 96...

  • Page 64: Date & Time

    UTC, you can set the correct time all over the world. The summer and wintertime switchover is realized by pushing the Daylight Saving button. DP 500 / DP 510 V1.33 Seite 64 von 96...

  • Page 65: Sd-Card

    SD-Card will be blocked for use in DS 400. Nevertheless all data are still stored and available for external use only. By pressing Erase SdCard all Data on the SD-Card will be deleted. DP 500 / DP 510 V1.33 Seite 65 von 96...

  • Page 66: System Update

    11.3.2.5.6.4.1 Save System Settings Important: Before updating the DP 500 / DP 510, the system settings should be secured either on a USB or on the internal SD-Card! Home ➔ Import / Export ➔Export System Settings...

  • Page 67: Check For New Software Updates (Usb)

    DP 500 DP 510 is not connected properly with the USB stick or no files are available. If the DP 500 / DP 510 is correctly connected to USB, and new version available it will displayed.

  • Page 68: Factory Reset

    11.3.2.5.6.5 Factory Reset Main menu ➔ Settings ➔ Device settings ➔ Factory Reset ➔Reset to Defaults If necessary or required, by pressing the Reboot System-button the DP 500/510 DP could be rebooted. DP 500 / DP 510 V1.33 Seite 68 von 96...

  • Page 69: Calibrate Touch-Screen

    7.83 V supply unit. 5.05 V By the Runtime, you always know how long the DP 500 / DP 510 was in total in operation 5.01 DP 500 / DP 510 V1.33 Seite 69 von 96...

  • Page 70: About Dp 500 / Dp 510

    Version, as well as the Serial Number the DP 500 /DP 510. Under options, you can buy two additional, different functions (only DP 510 , if you have not done this by ordering. DP500 / DP 510 1.33 Seite 70 von 96...

  • Page 71: Chart

    The smallest possible range is represented, depending on the time interval of the recording. Additional zooming and scrolling options in Chart Chart/Real time values bigger period of time Time later time earlier Smaller period of time DP 500 / DP 510 V1.33 Seite 71 von 96...
  • Page 72 Colour for it. Remark: Grid setting is already possible at this point, but later when a record is selected, it is more reasonable! DP500 / DP 510 1.33 Seite 72 von 96...
  • Page 73 By pushing the A.Scale-button a calculated auto-scaling will be defined. In the same way the remaining y-axes can be labelled! m³/h Two different grid settings with various Units and Colours. DP500 / DP 510 1.33 Seite 73 von 96...
  • Page 74 Chart Main menu ➔ Chart DP500 / DP 510 1.33 Seite 74 von 96...

  • Page 75: Chart / Real Time Values

    Chart and one to display values). ➔ In addition, it can be set, like in Main Chart, a colour and the grid (min, max, step) of the y-axis. DP 500 / DP 510 V1.33 Seite 75 von 96...
  • Page 76 If there is no grid entered in the setup, will be 0, 100 and step In the same way, the remaining setups can be set! DP500 / DP 510 1.33 Seite 76 von 96...

  • Page 77: Channels

    Start of recording is immediately after setting of the sensor, but there is always the possibility to reset the Min and Max values. Main menu ➔ Channels ➔ I1 ➔ ↑ ↓ = Max-Wert = Min-Wert DP 500 / DP 510 V1.33 Seite 77 von 96...
  • Page 78 For resetting the single value the Reset –Button for all Min/Max-Values the Value –Button has to be pressed. Reset All Values DP500 / DP 510 1.33 Seite 78 von 96...

  • Page 79: Real Time Values

    You can choose between 6 different layouts showing 1-5 measurements. see below. The values to be displayed could be selected in the Val.1 to Val.5 description fields. Different variants: DP 500 / DP 510 V1.33 Seite 79 von 96...

  • Page 80: Alarm Overview

    1165,5 m³/h Remark: 27366 m³ The alarm parameters can be set and/or modified here. 180.0 m/s DP 500 / DP 510 V1.33 Seite 80 von 96...

  • Page 81: Virtual Channels (Optional)

    12.1 Option „Virtual Channels“ activation After purchasing of the option „Virtual Channels“ the functionality have to be activated first. Main menu ➔ Settings ➔ About DP 510 Please push the button Buy for „Virtual Channels“ and you will requested to insert the...

  • Page 82: Virtual Channels Settings

    Type No Sensor appears. By pushing the button Generic the virtual channel is selected. Pushing the button No Sensor will reset the virtual channel. Confirmation of selection is done by pressing the button DP500 / DP 510 1.33 Seite 82 von 96...

  • Page 83: Configuration Of Each Single Virtual Value

    Main menu ➔ Settings➔ Sensor Settings ➔ Virtual Channels ➔ V1 ➔ arrow right (2.page) ➔ 1stOperand By accessing the text field 1st Operand The list with all channels (HW and virtual channels) and const. Value appears. DP500 / DP 510 1.33 Seite 83 von 96...
  • Page 84 ß Button deletes the last figure Button clears the whole field This approach is analogous to the other operands. (1st Operand, 2nd Operand and 3rd Operand). DP500 / DP 510 1.33 Seite 84 von 96...

  • Page 85: Definition Of Operations

    To move through the list please press the button Page. In case the unit is not available it is possible to create a user defined unit. Therefore, please select one of the User_X buttons. DP500 / DP 510 1.33 Seite 85 von 96...
  • Page 86 Each calculation allows you the use of maximum 3 operands and 2 operations. The calculation is then based on following formula: Example: V1a = (1st Operand 1st operation 2nd Operand) 2nd operation 3rd Operand V1a = (A1c – A2a) * 4.6 DP500 / DP 510 1.33 Seite 86 von 96...

  • Page 87: Value Name, Resolution Of Decimal Places And Recording Of Values

    Before the selected measurement data are recorded, the data logger must be activated after the settings(See chapter 10.2 Logger-Settings (Data logger)). See also chapter 10.3.2.1.2.3 Name the measurement 10.3.2.1.2.4 Recording measurement data DP500 / DP 510 1.33 Seite 87 von 96...

  • Page 88: Analog Total (Optional Only For Dp 510)

    0-1/10/30V and 0/4 – 20mA. 13.1 Option „Analog Total“ activation After purchasing of the option „Analog Total“ the functionality has to be activated first. Main menu ➔ Settings ➔ about DP 510 for „Analog Total“ Please push the button...

  • Page 89: Selection Of Sensor Type

    The text field „Unit-Consumption“ is only editable in case of measurement values (Units) with volume per time unit and thus also the consumption calculation. For labelling and setting of the description fields see also chapter 10.3.2.1.2.8 label and setting the description field DP500 / DP 510 1.33 Seite 89 von 96...

  • Page 90: Export /Import

    The selected date is always green, and the date numbers of the Sundays are red, like in the calendar. On days, where measurement data were recorded, the date numbers are optical highlighted. DP 500 / DP 510 V1.33 Seite 90 von 96...
  • Page 91 Now a recording can be selected comfortable. Main menu ➔ Export data ➔ Export Logger data ➔ export The measurement data of the selected period are exported to a USB stick. DP500 / DP 510 1.33 Seite 91 von 96...

  • Page 92: Export System Settings

    Select the location for storing by pressing the button SDCard. choosing button file menu inserting/defining the filename appears. The file name length is limited to 8 chars. OK ➔ OK File save/confirm with: DP500 / DP 510 1.33 Seite 92 von 96...

  • Page 93: Import System Settings

    For the complete takeover of the new sensor settings, they have to be activated for each channel too. Main menu ➔ Settings ➔ Sensor Settings ➔ Channel A1 …B2 Stand: 21/09/2016, V1.33 DP 500 / DP 510 V1.33 Seite 93 von 96...
  • Page 94 Appendix DP 500 / DP 510 V1.33 Seite 94 von 96...
  • Page 95 Appendix DP500 / DP 510 1.33 Seite 95 von 96...

  • Page 96: Seite 3 Von

    Appendix DP500 / DP 510 1.33 Seite 96 von 96...
