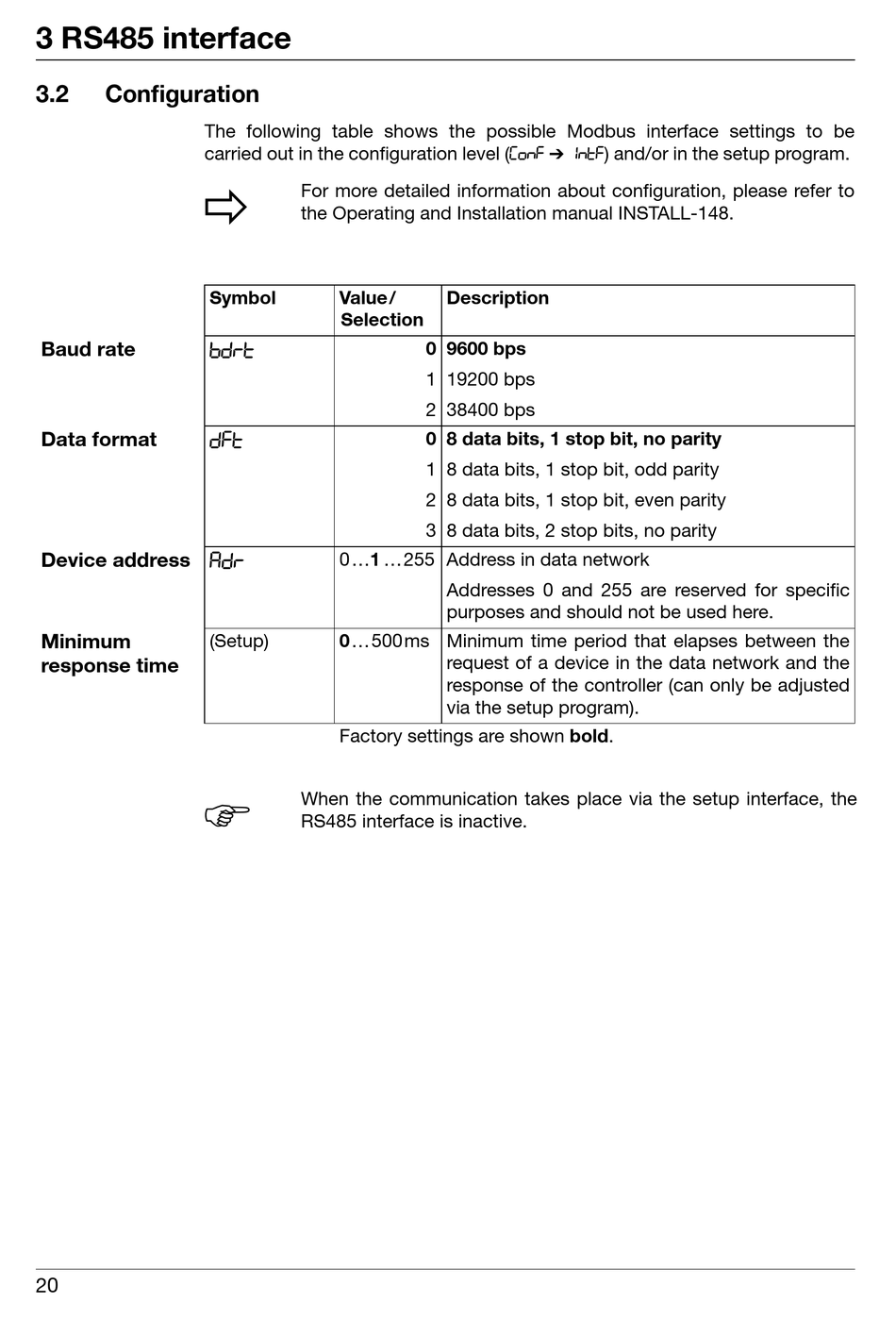

3 RS485 interface
3.2
Configuration
Baud rate
Data format
Device address
Minimum
response time
H
20
The following table shows the possible Modbus interface settings to be
carried out in the configuration level (ConF
v
For more detailed information about configuration, please refer to
the Operating and Installation manual INSTALL-148.
Symbol
Value/
Selection
bdrt
dFt
Adr
0...1 ...255 Address in data network
(Setup)
0...500ms Minimum time period that elapses between the
Factory settings are shown bold.
When the communication takes place via the setup interface, the
RS485 interface is inactive.
➔
IntF) and/or in the setup program.
Description
0
9600 bps
1
19200 bps
2
38400 bps
0
8 data bits, 1 stop bit, no parity
1
8 data bits, 1 stop bit, odd parity
2
8 data bits, 1 stop bit, even parity
3
8 data bits, 2 stop bits, no parity
Addresses 0 and 255 are reserved for specific
purposes and should not be used here.
request of a device in the data network and the
response of the controller (can only be adjusted
via the setup program).
