Typical Wiring Hookups; Open Collector & Relay Operation - KEP INTELLECT-69 Series Installation & Operating Instructions Manual

2-Wire 4-20mA Transmitter
Flowmeter
(4-20mA Transmitter)
4-Wire 4-20mA Transmitter
Power
Supply
Flowmeter
(4-20mA Transmitter)
2-Wire 4-20mA Transmitter
with Multiple Devices
-
+
Flowmeter
(4-20mA Transmitter)
OPEN COLLECTOR & RELAY OPERATION
The open collector and relay outputs trigger when the
total or rate (assignable; see programming step 2)
equals the corresponding Preset (A or B).
When the outputs are assigned to the "total", the opera-
tor can assign a duration of time (.01 to 599.99 sec.) that
the output will remain energized. If 0.00 is assigned, the
output will latch until reset. If output A is set at a duration
(other than 0.00), the totalizer will autorecycle when
Preset A is reached. At this time, output B will de-
energize (if it was energized).
preset and should be set higher than Preset B, when
both outputs are assigned to the total. If output A is set
at a duration other than 0.00 and Preset A is set less

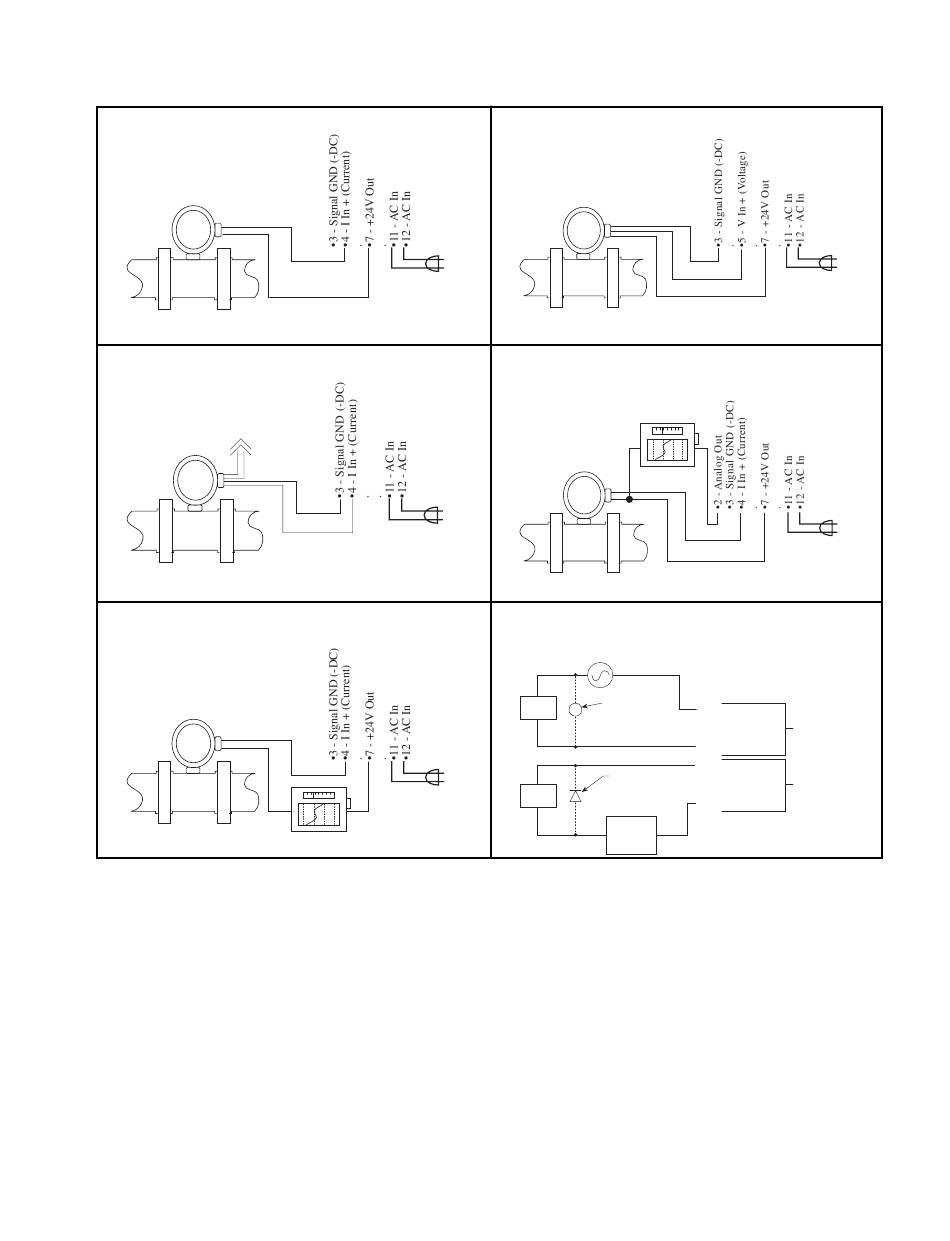

TYPICAL WIRING HOOKUPS

110 VAC
60/50 Hz
- +
110 VAC
60/50 Hz
- +
110 VAC
60/50 Hz
- +
Strip Chart
Recorder
Preset A is the final
3-Wire 0-10V Transmitter
Flowmeter
(0-10 V Transmitter)
2-Wire 4-20mA Transmitter
with Analog Output
Strip Chart
Recorder
+
-
+
Flowmeter
(4-20mA Transmitter)
Relay Output
AC Supply
Neutral
MOV
LOAD
recommende
for inductive
loads
Diode
+
recommende
LOAD
for inductive
loads
-
- DC +
Supply
than Preset B, Preset B will be ignored (provided that
they are both assigned to total). The totalizer will never
autorecycle at Preset B.
When the outputs are assigned to the "rate", the outputs
can be assigned a hysteresis (alarm range). The
hysteresis is the number of units below the preset that
the output will remain energized. EXAMPLE: Preset set
@ 100; Hysteresis set @ 10. The output will energize
when the rate equals 100 and de-energize when the
rate falls below 90 (10 below Preset).
NOTE: If the input scaling is inverted, the control output
functions are inverted (LINEAR ONLY).
5
110 VAC
60/50 Hz
- +
signal
-
110 VAC
60/50 Hz
•13 Common
Relay A
•14 N.C.
•15 N.O.
•16 Common
Relay B
•17 N.C.
•18 N.O.
